Size Guide
Bike Size: Regular/Large
User Height Range: Regular: 4'11" ~ 5'9"/Large: 5'6" ~ 6'4"
Frameset

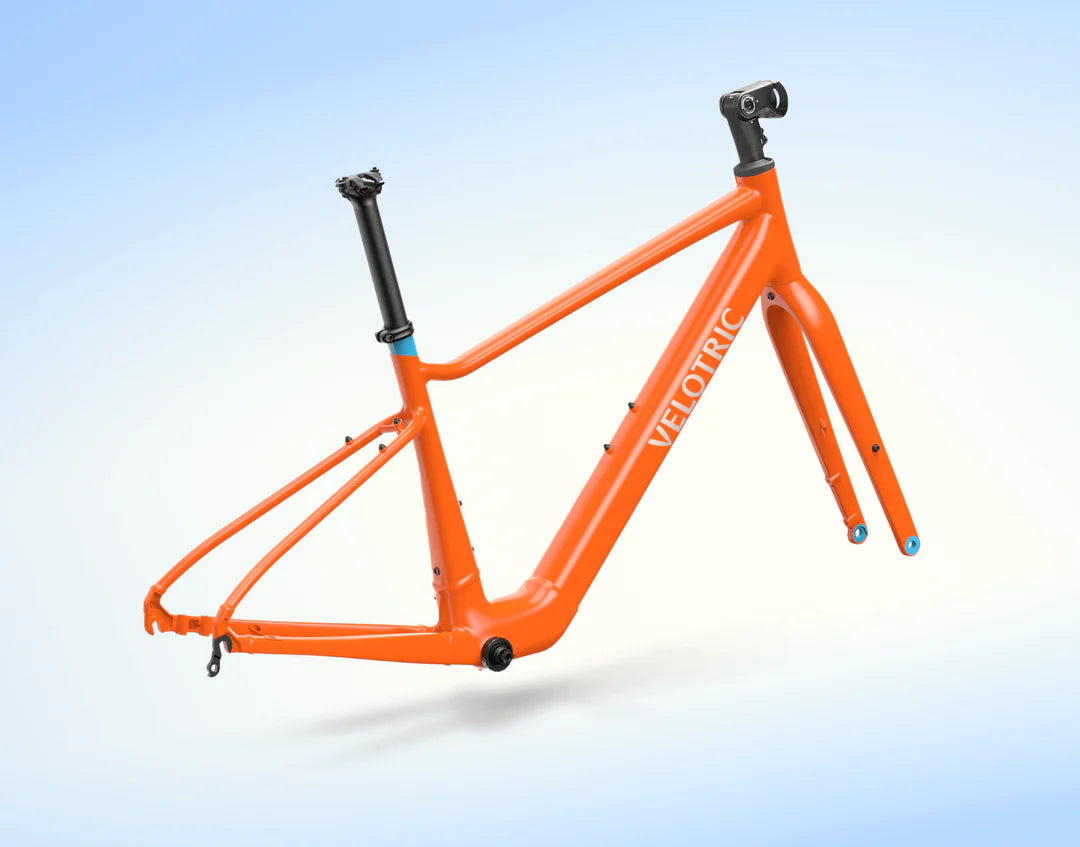

Frame: 6061 Triple-butted Aluminum alloy frame

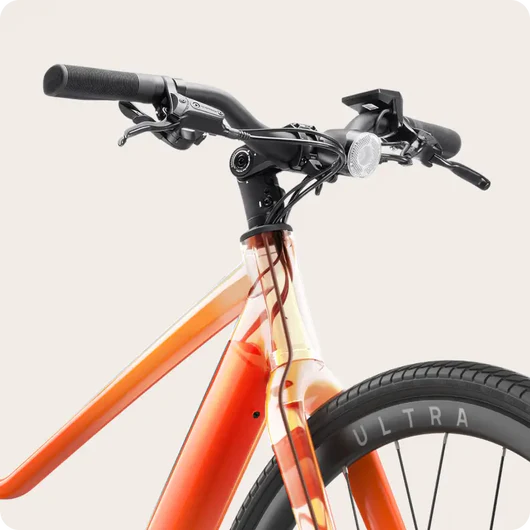

Fork: 6061 Aluminum alloy, internal brake routing, 12x100mm thru-axle
Electronics
Motor: 350W, Peak 600W, 40Nm

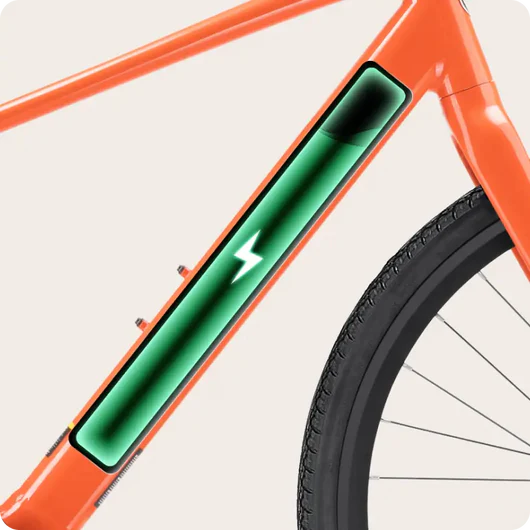

Battery: 36V, 352.8Wh, IPX7, Certificated by UL 2271
Cell: Samsung/LG 21700 cell, Certificated by UL 2580
Charger: 36V, 2A
Sensor: Torque sensor

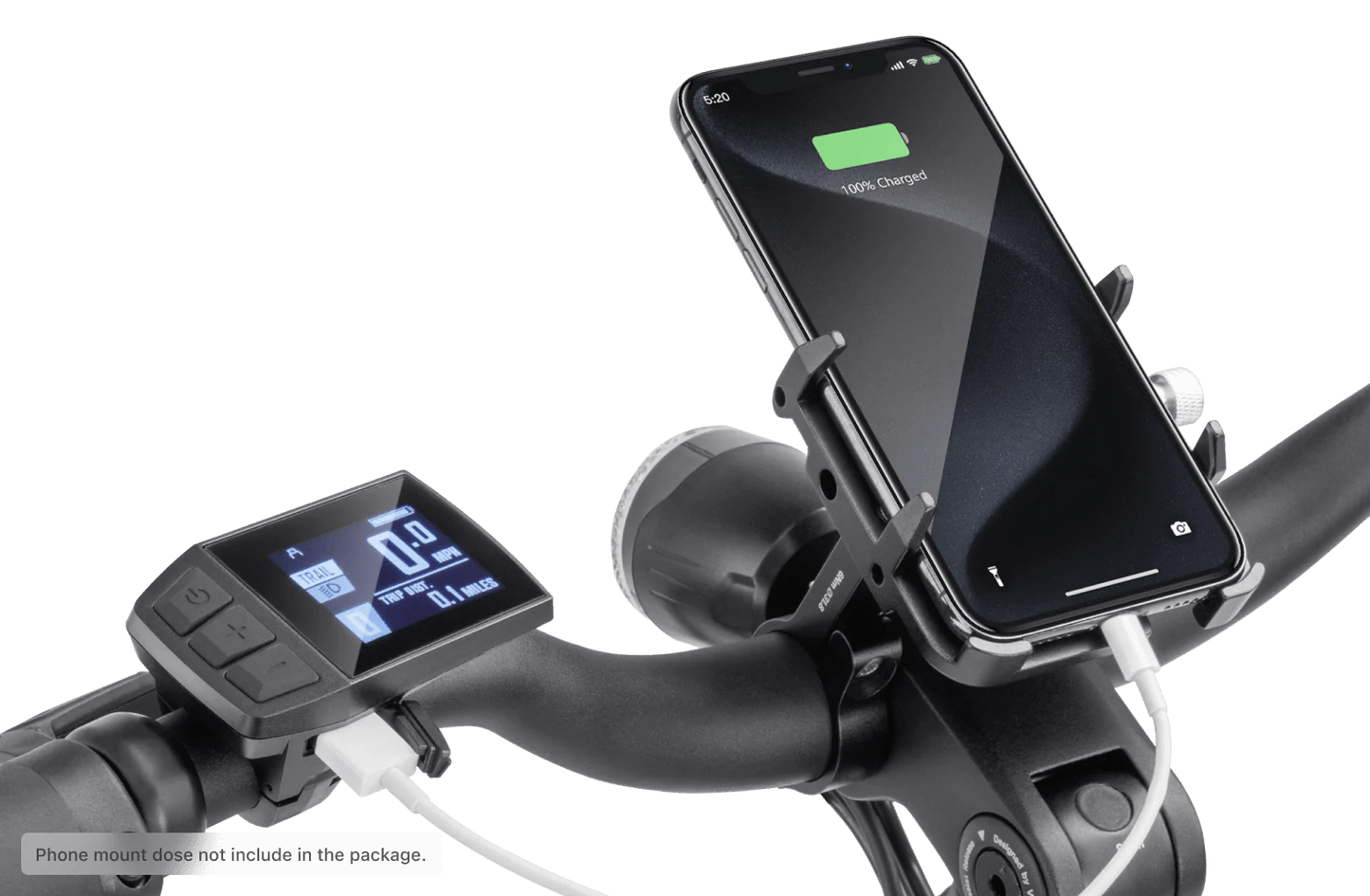

Display: 1.8" Full color, high brightness, Bluetooth, adjustable angle
USB Port: USB Type-A phone charge
Pedal Assist: 3 Riding Modes x 5 PAS Levels
Walk Mode: 2.9 MPH
Front Light: High output integrated LED, 60Lux, adjustable angle
Rear Light: LED light
Water Resistant: IPX6
Speed & Range
Max Speed (Default: 20 MPH
Max Speed Adjustable Range: 12~28 MPH
Class: 1/3
Pedal Assist Range: 70 Miles

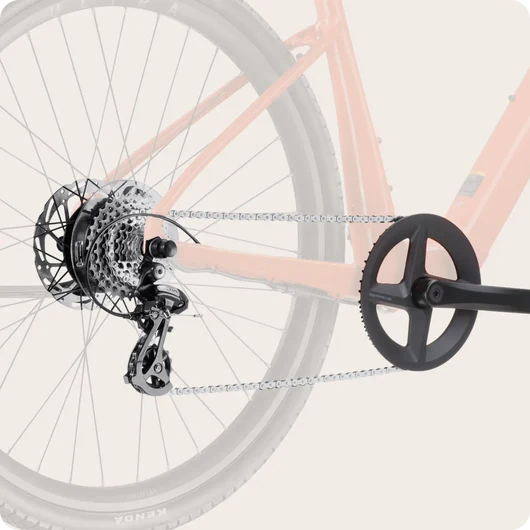

Drivetrain
Chainrings: 46T
Crankset: Aluminum Alloy, 170mm
Cassette: 8-speed

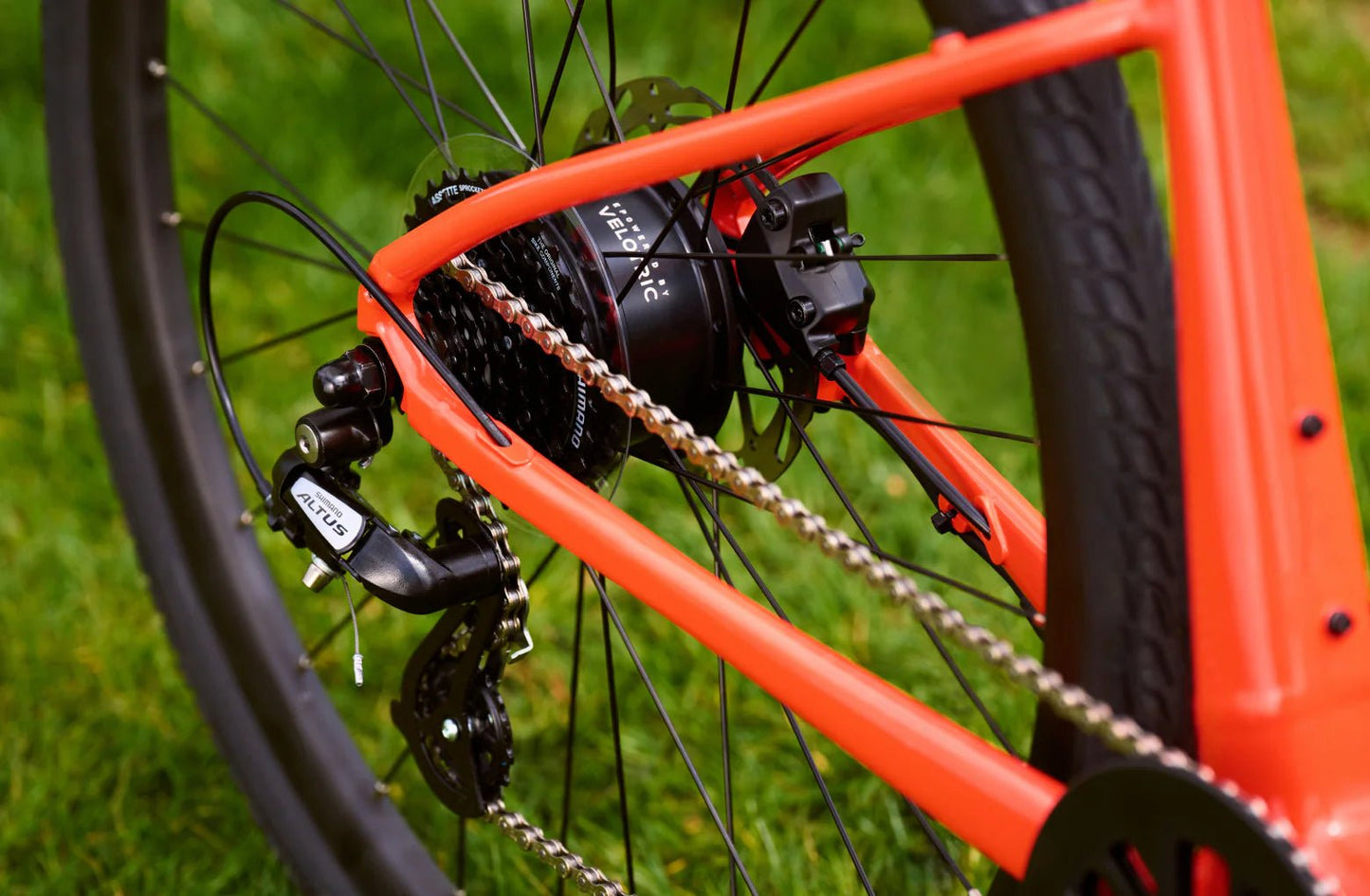

Rear Derailleur: SHIMANO 8-speed
Shift Lever: SHIMANO 8-speed
Chain: KMC 8-speed
Brake
Brake: TEKTRO Hydraulic Disc Brake
Rotors: 160mm front and rear
Brake Levers: Aluminum Alloy
Wheel
Rims: Double-wall Aluminum Alloy
Front Hub: NOVATEC Aluminum Alloy, 12x100mm thru-axle
Tire: KENDA 700×40c eBike puncture resistant tires
Cockpit
Handlebar: Aluminum Alloy, Φ31.8mm, 660mm
Grips: VELOTRIC ergonomic comfort grips

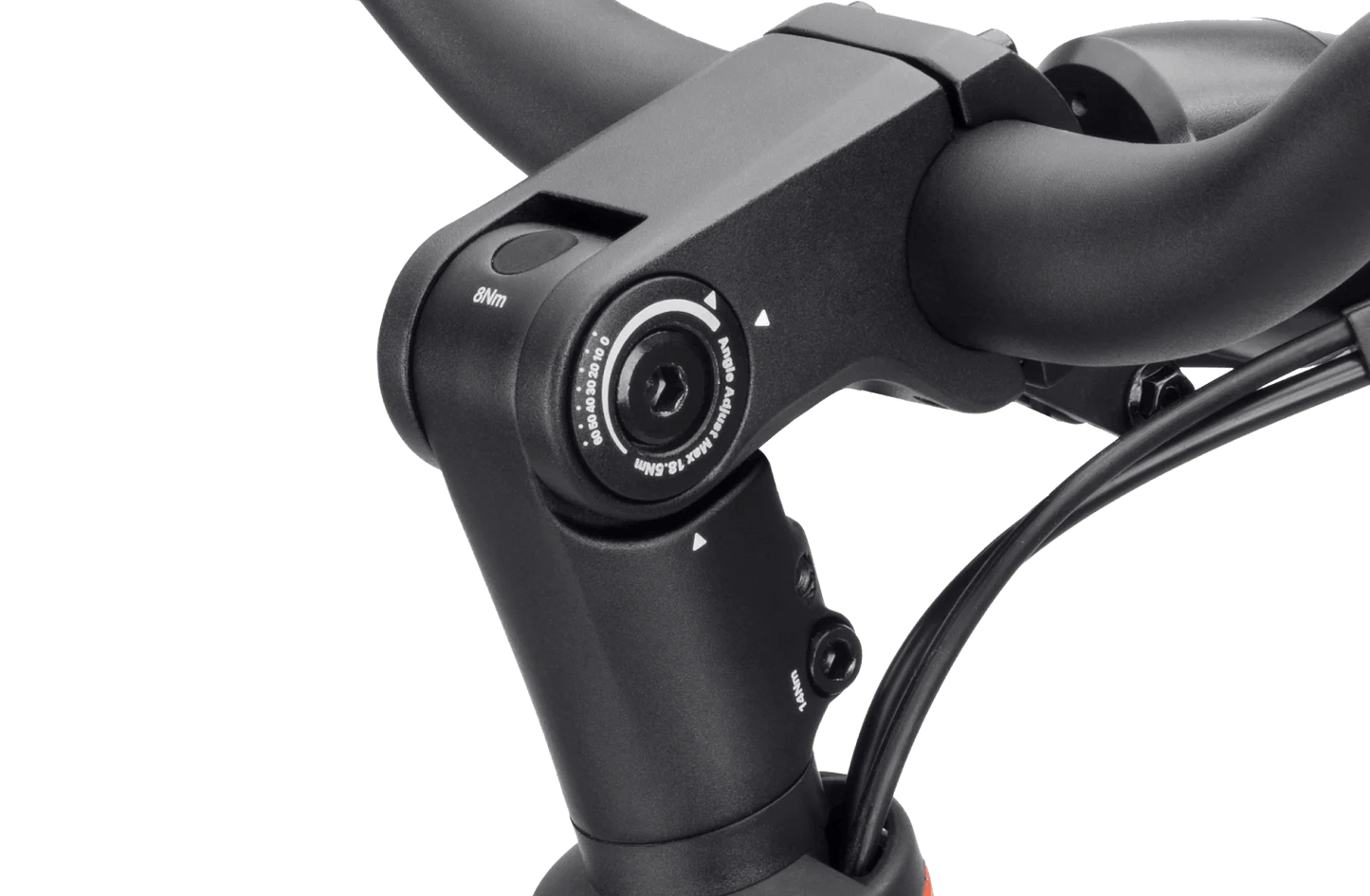

Stem: Adjustable, Aluminum Alloy, φ31.8mm, 60mm
Saddle: VELOTRIC urban comfort ergonomic seat
Seatpost: Aluminum Alloy, φ30.9mm, 350mm
Clamp: Aluminum Alloy
Supports
Pedals: Plastic
Kickstand: Aluminum Alloy, included, rear mount
Weight & Load
Bike Weight:: 39lbs
Max Bike Load Capacity: 330lbs
Certification
UL Certification: UL 2849
ISO Standard: ISO 4210
