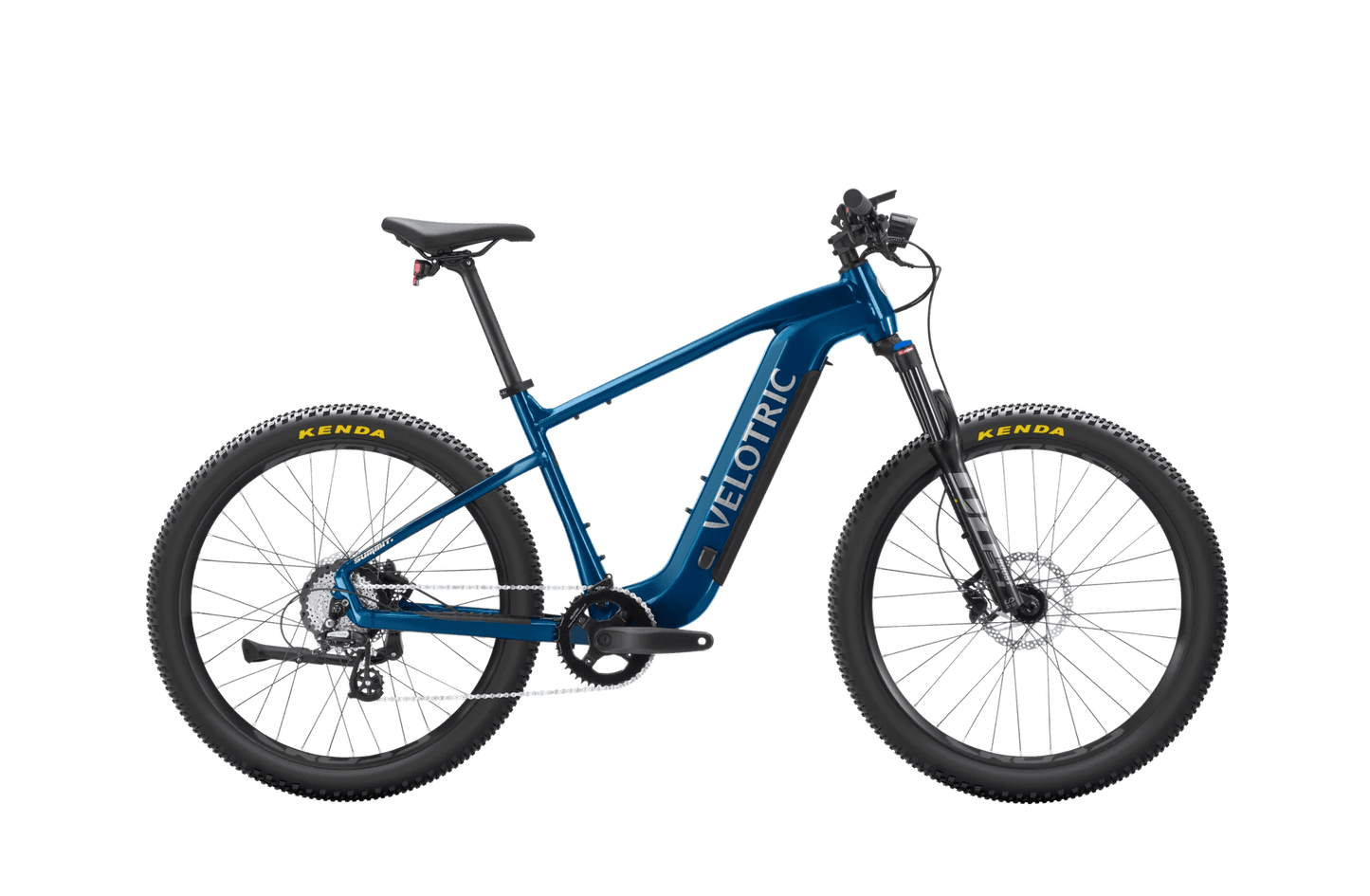

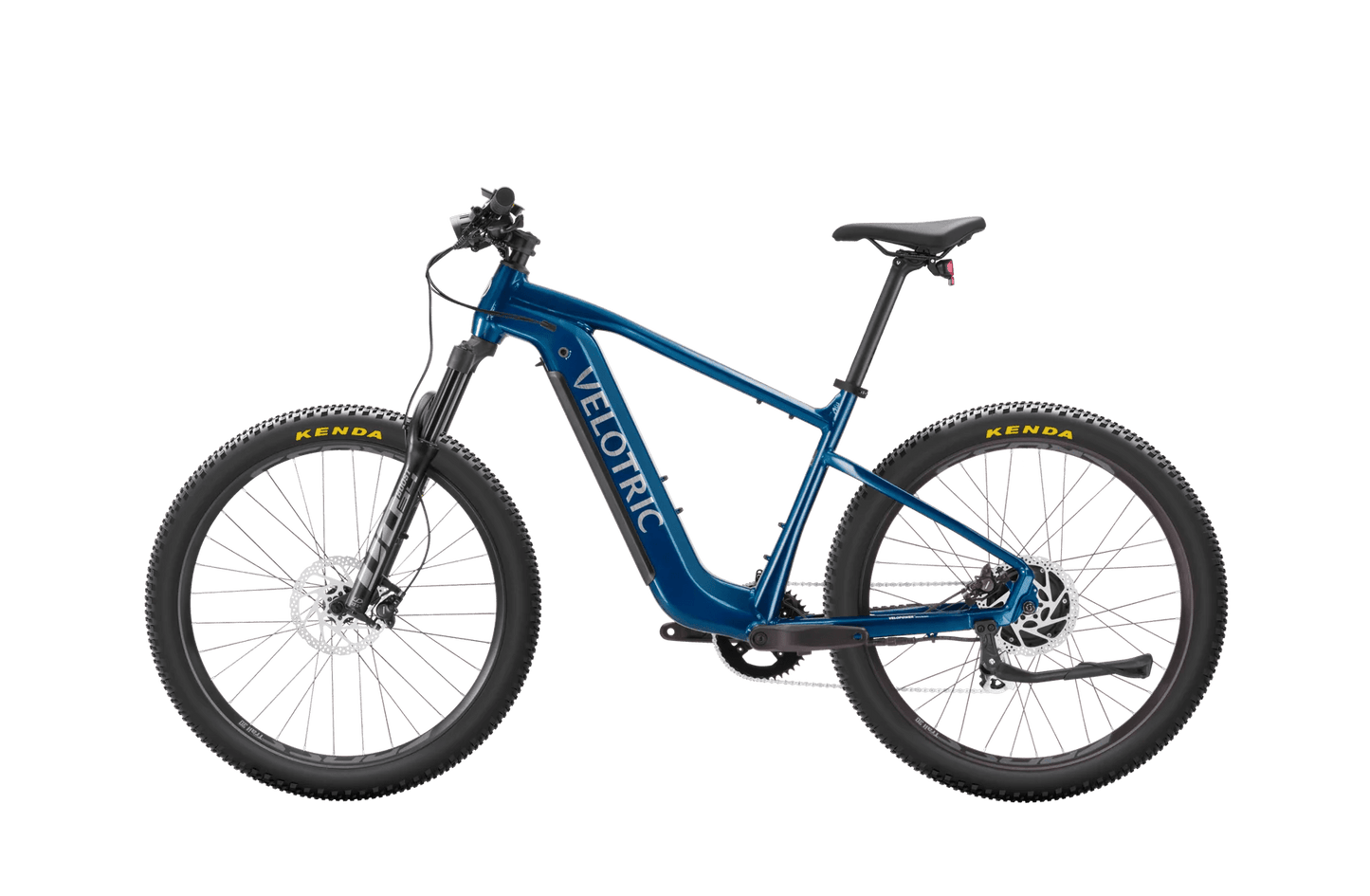

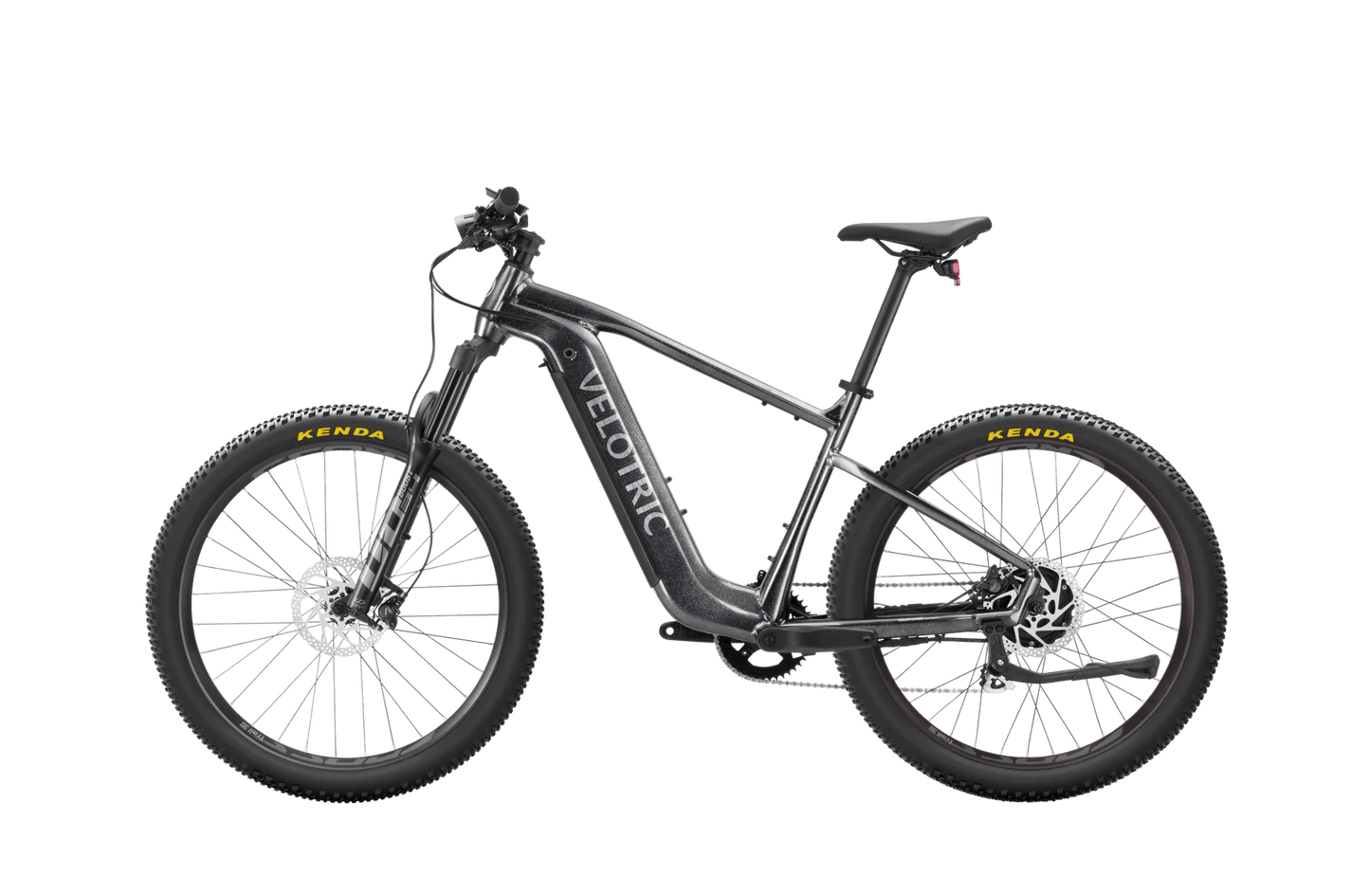

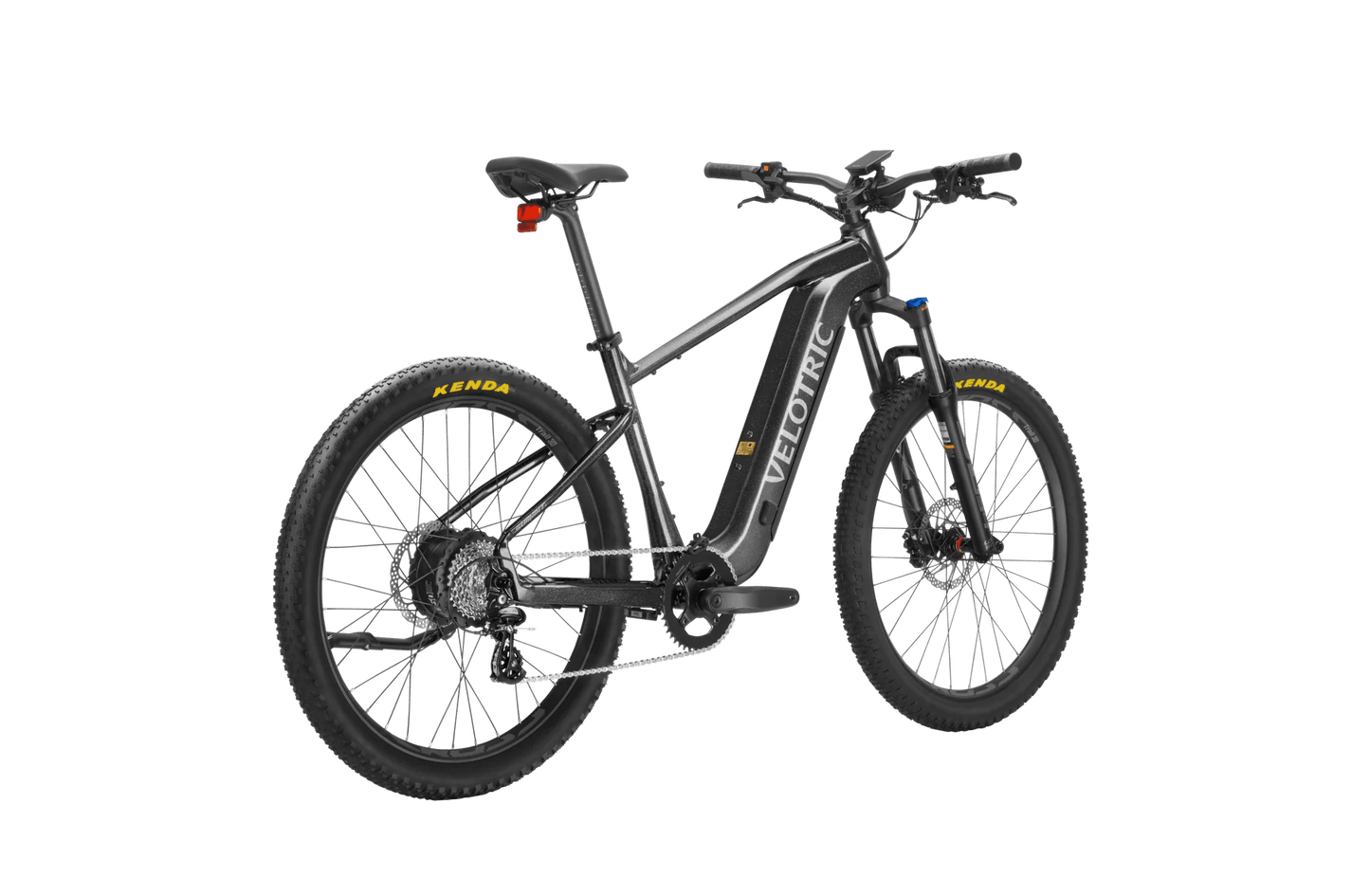

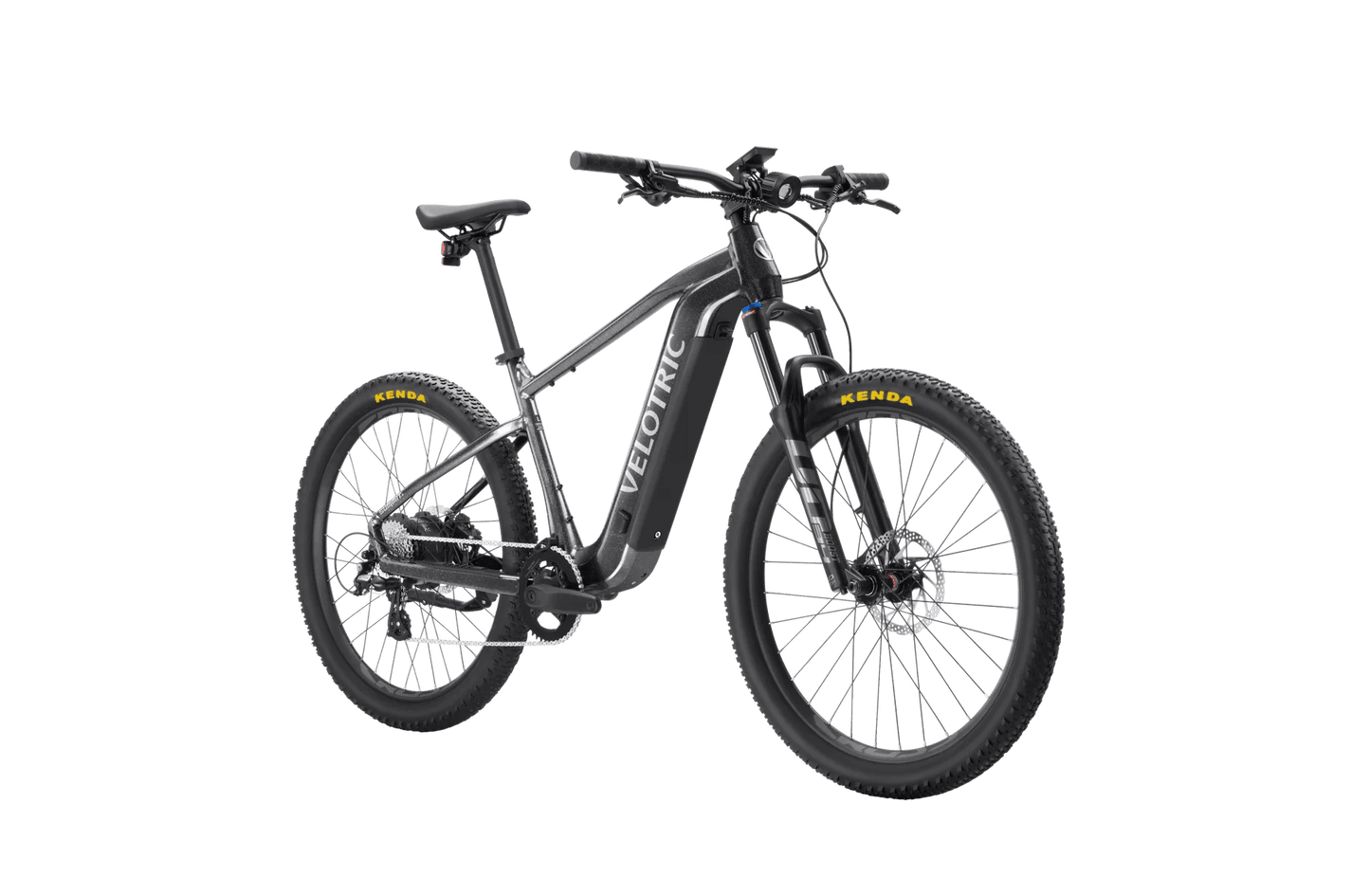

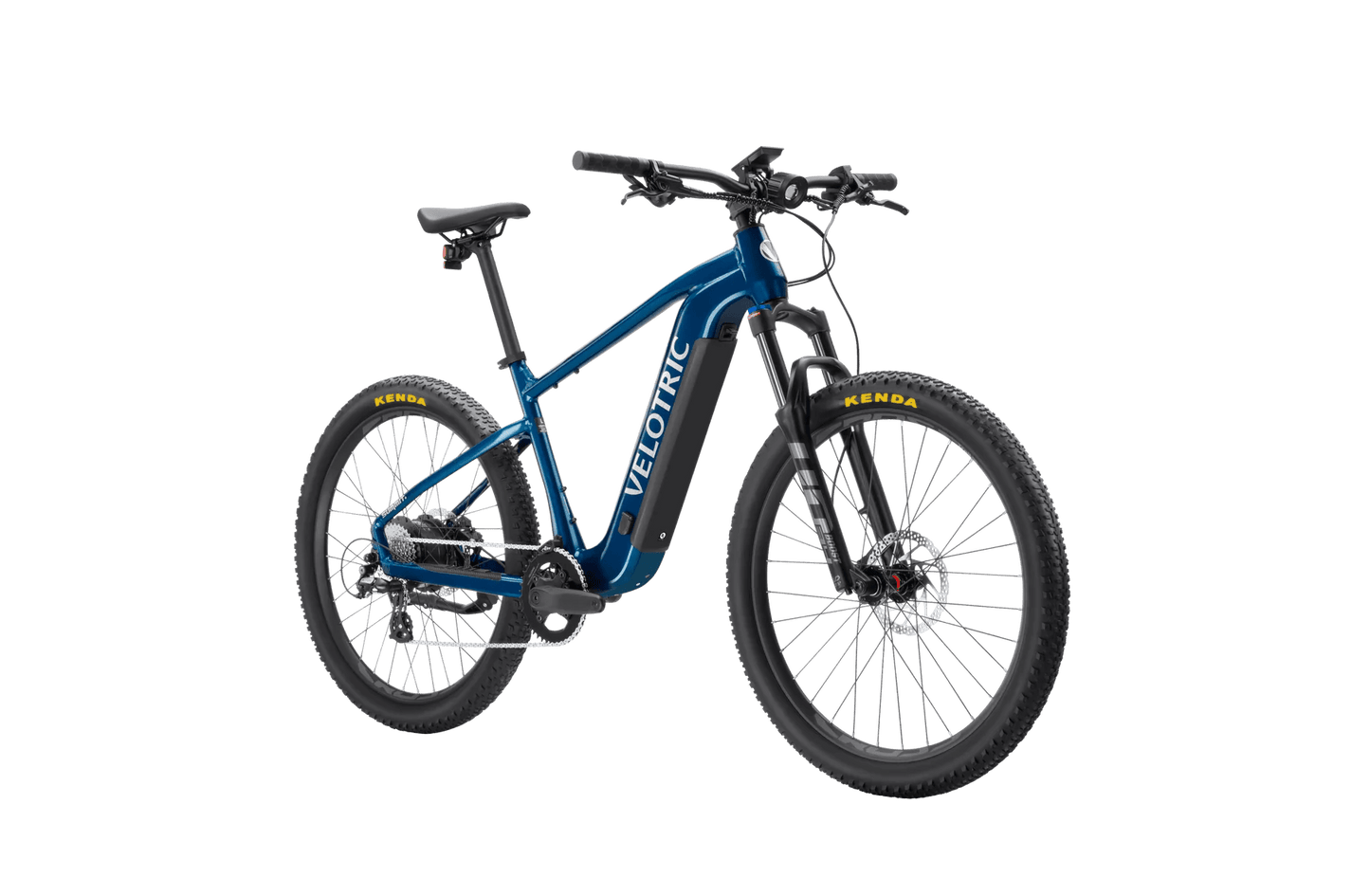

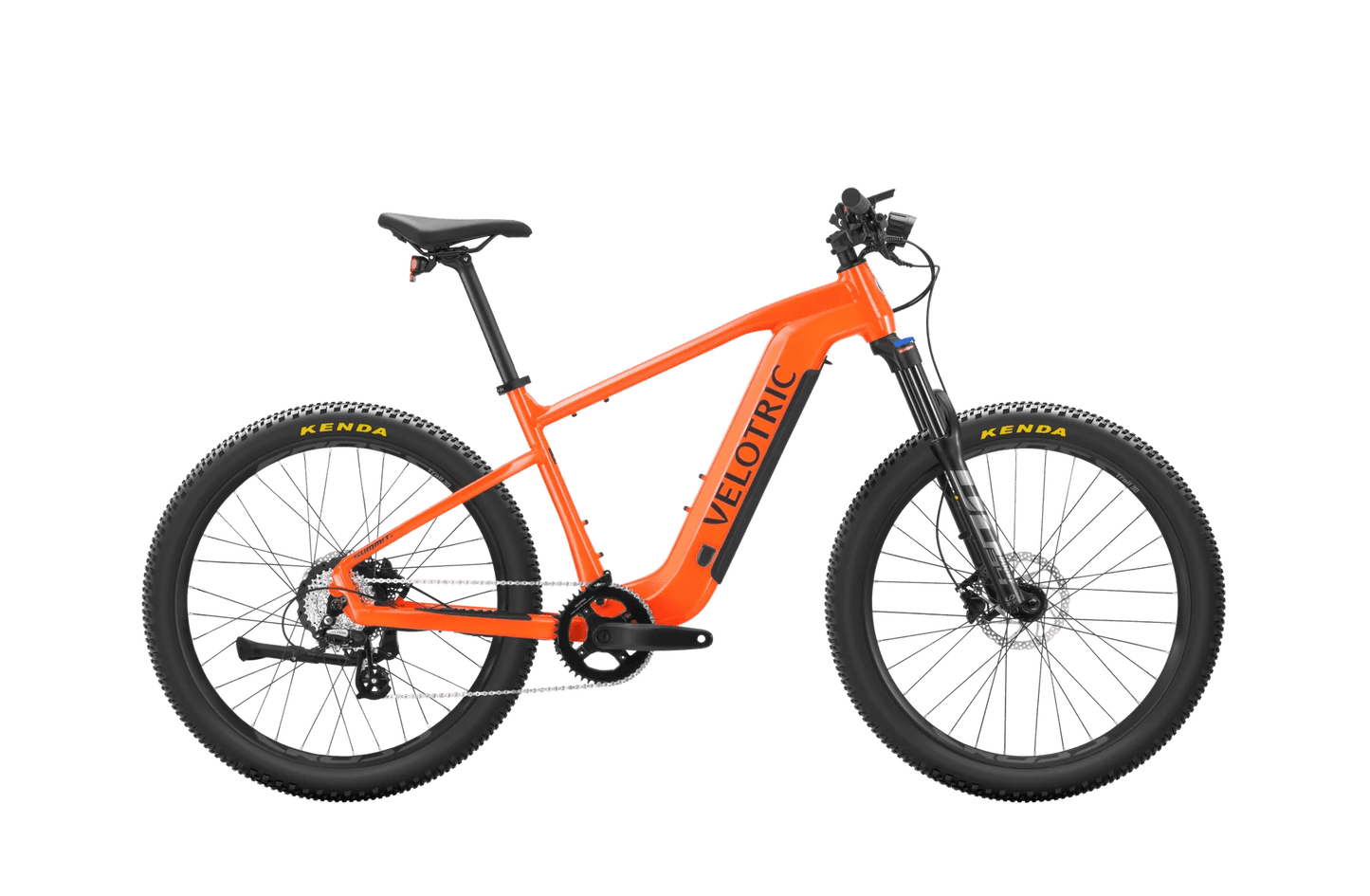

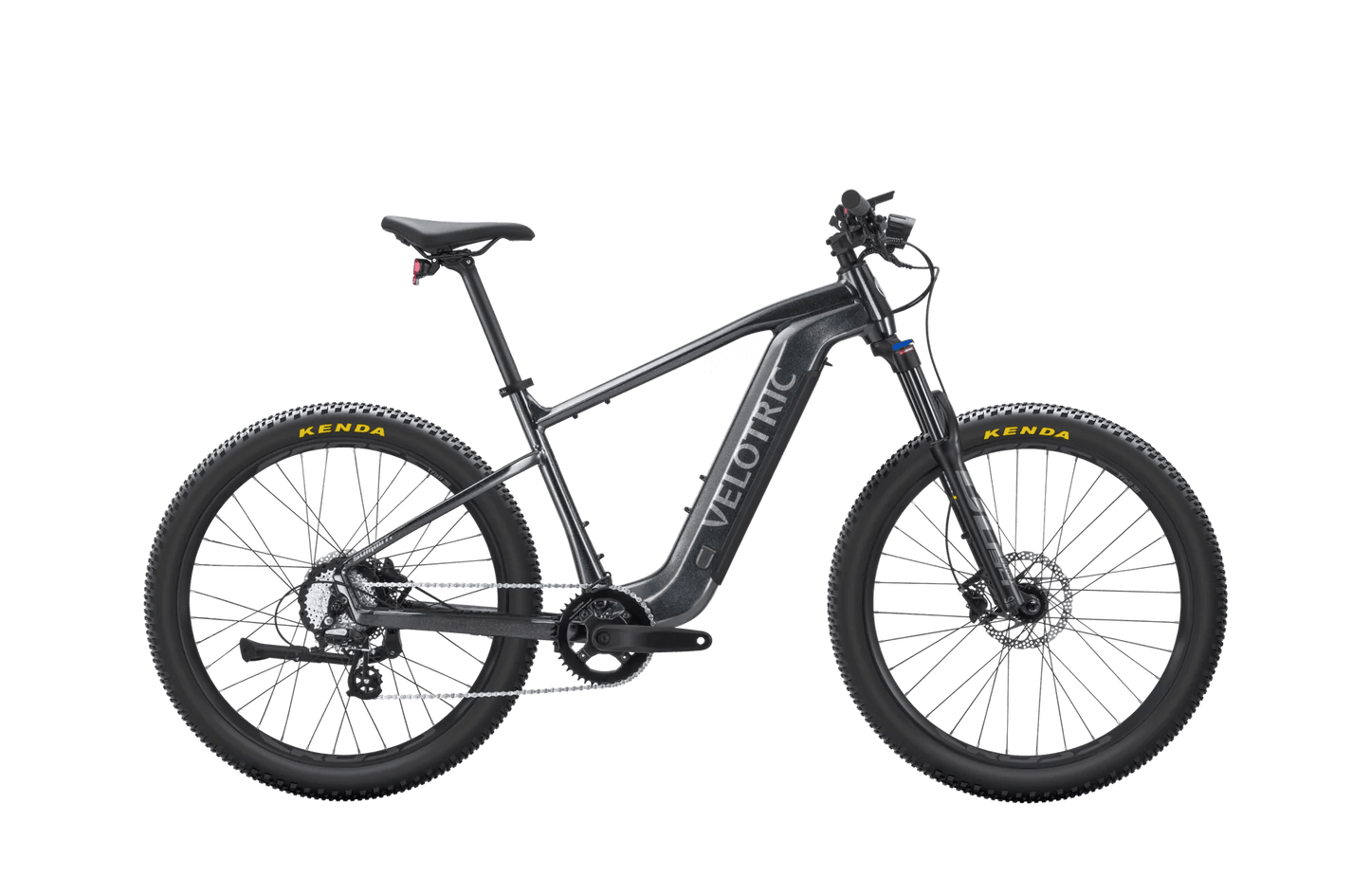

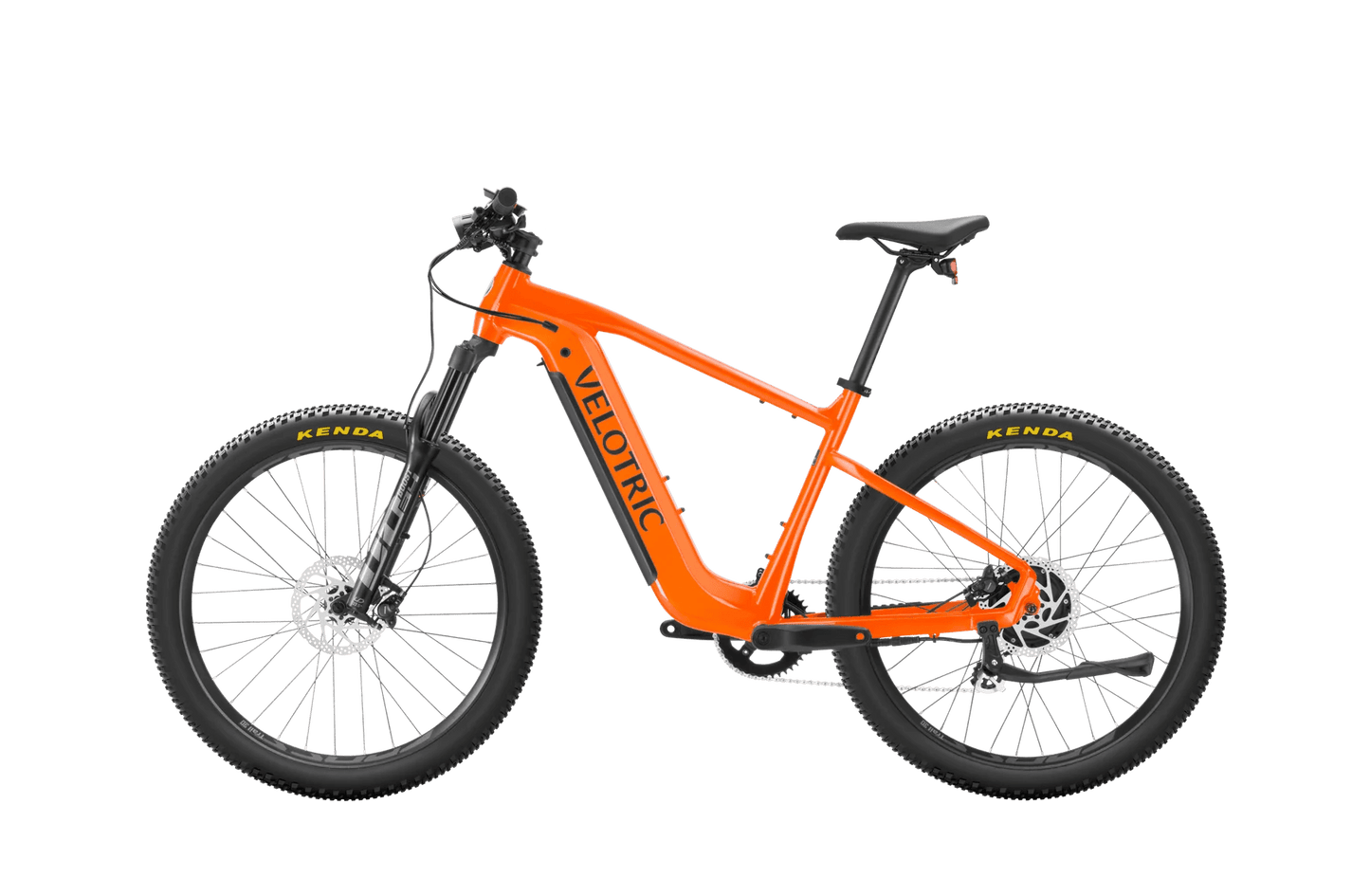

Velotric Summit 1

Velotric Summit 1

Regular price $1,999.00 USD
Regular price $0.00 USD Sale price $1,999.00 USD
Sale Sold out
Shipping calculated at checkout.

Introducing the Velotric Summit 1 Electric Bike: Your Trail-Blazing Adventure Awaits!

The Velotric Summit 1 is a versatile e-bike for off-road enthusiasts and urban explorers. With its powerful motor, advanced features, and sleek design, this bike delivers an exhilarating riding experience.

Key Features:

  • High-Performance Motor: The Summit 1 boasts a peak-rated 1300W rear hub motor with an impressive 90Nm of torque. Conquer steep hills and accelerate effortlessly.
  • Torque Sensor: Choose from 3 riding modes with 5 levels of pedal assist, totaling 15 acceleration experiences. Find your perfect match for any terrain.
  • Top Speed: Reach up to 28 mph for thrilling rides.
  • Long Range: Claimed to cover up to 70 miles on a single charge (up to 112 km).
  • Battery Capacity: Equipped with a 48V 14.7Ah (705.6 Wh) battery pack.
  • Lightweight Aluminum Frame: Easy to handle and maneuver.
  • Hydraulic Suspension: Enjoy a smooth ride with 120mm of front suspension.
  • SHIMANO Disc Brakes: Reliable stopping power.
  • IPX7 Waterproof Rating (Battery): Ready for all weather conditions.
  • Load Capacity: Supports up to 440 lb (200 kg).

Get ready to explore rugged trails, conquer hills, and experience the thrill of the Velotric Summit 1. Adventure awaits! 🚴‍♂️🔥

View full details

Collapsible content

Specifications

Size Guide
Bike Size: Regular/Large
User Height Range: Regular: 5'1" ~ 5'10"/Large: 5'8" ~ 6'6"

Frameset
Frame: Triple-Butted Aluminum Alloy
Fork: Hydraulic suspension 120mm travel with Lock-out, 15x110mm thru-axle

Electronics
Motor: 48V, 750W, 90Nm
Battery: 48V, 705.6Wh, IPX7, Certificated by UL 2271
Cell: Samsung/LG 21700 cell, Certificated by UL 2580
Charger: 48V, 3A Fast Charger
Sensor: Torque sensor
Display: 2.8" Full color, high brightness, Bluetooth, adjustable angle
USB Port: USB Type-A phone charge
Security: Apple Find My™
Throttle: Trigger-control, removable
Pedal Assist: 3 Modes × 5 Levels
Walk Mode: 2.9 MPH
Front Light: Light sensing 130Lux high-output integrated LED, adjustable angle
Rear Light: Brake highlight, rear light steady/flash
Water Resistant: IPX6

Speed & Range
Max Speed (Default: 20 MPH
Max Speed Adjustable Range: 12~28 MPH
Class: 1/2/3
Throttle Range: 60 Miles
Pedal Assist Range: 70 Miles

Drivetrain

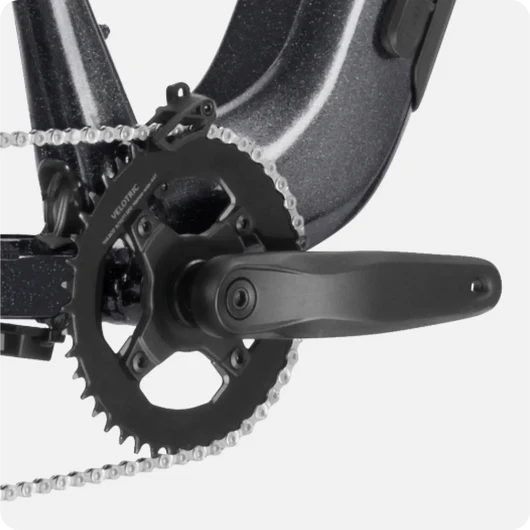

Chainrings: BCD 104, 44T, narrow wide chainring
Crankset: Aluminum Alloy, 170mm
Cassette: 8-speed
Rear Derailleur: SHIMANO 8-speed
Shift Lever: SHIMANO 8-speed
Chain: KMC 8-speed

Brake
Brake: SHIMANO Hydraulic Disc Brake
Rotors: 180mm front and rear
Brake Levers: Aluminum Alloy, with power cutoff

Wheel
Rims: Double-wall Aluminum Alloy
Front Hub: NOVATEC Aluminum Alloy, 15x110mm thru-axle
Tire: Kenda 27.5x2.6" MTB puncture resistant tires

Cockpit
Handlebar: Aluminum Alloy, Φ31.8mm, 760mm (R)/780mm (L)
Grips: Velotric sports grips, lockable
Stem: Adjustable, Aluminum Alloy, φ31.8mm, 35mm (R)/50mm (L)
Saddle: VELOTRIC ergonomic seat
Seatpost: Aluminum Alloy, φ30.9mm, 350mm
Clamp: Aluminum Alloy, quick release

Supports
Fenders: Optional
Rear Rack: Optional
Pedals: Aluminum Alloy
Kickstand: Aluminum Alloy, included, rear mount

Weight & Load
Bike Weight: 62lbs
Max Bike Load Capacity: 440lbs

Certification
UL Certification: UL 2849
ISO Standard: ISO 4210

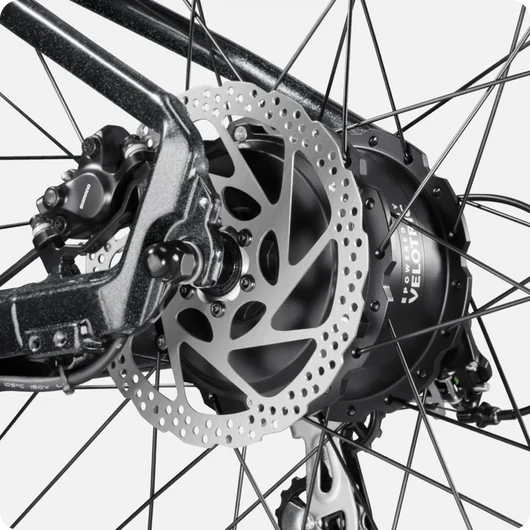

High Performance Motor

Equipped with a 750W motor that can output 90Nm of torque, the Summit 1 has superior hill climbing and acceleration performance to help you conquer mountain trails.

Torque Sensor

With 3 Riding Modes, each with 5levels of pedal assist, you have a totalof 15 acceleration experiences tochoose the perfect one for you. Thetorque sensor also means the Summit1's acceleration is smooth andpowerful.

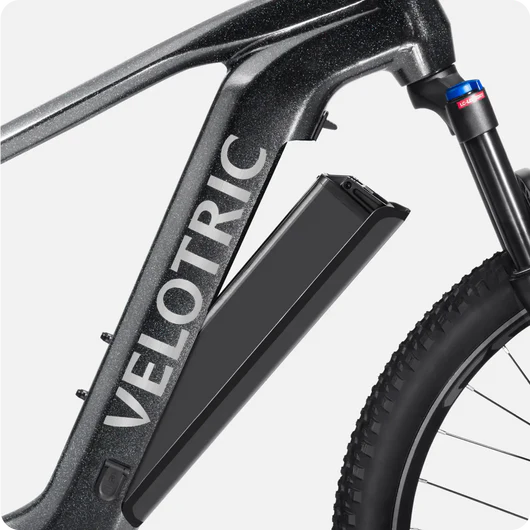

UL2271 Certified Battery

The Summit 1 battery, boasting high- quality cells and UL2271 certification, delivers exceptional performance with its IPX7 waterproof rating. Designed for the long haul, it promises an impressive range of up to 70 miles. Quality power for every ride.

USB Charging

Running low on your phone's battery? Charge and ride as you top on with some extra juice via the easily accessible USB Type-A charging port. Perfect for those extra long rides.

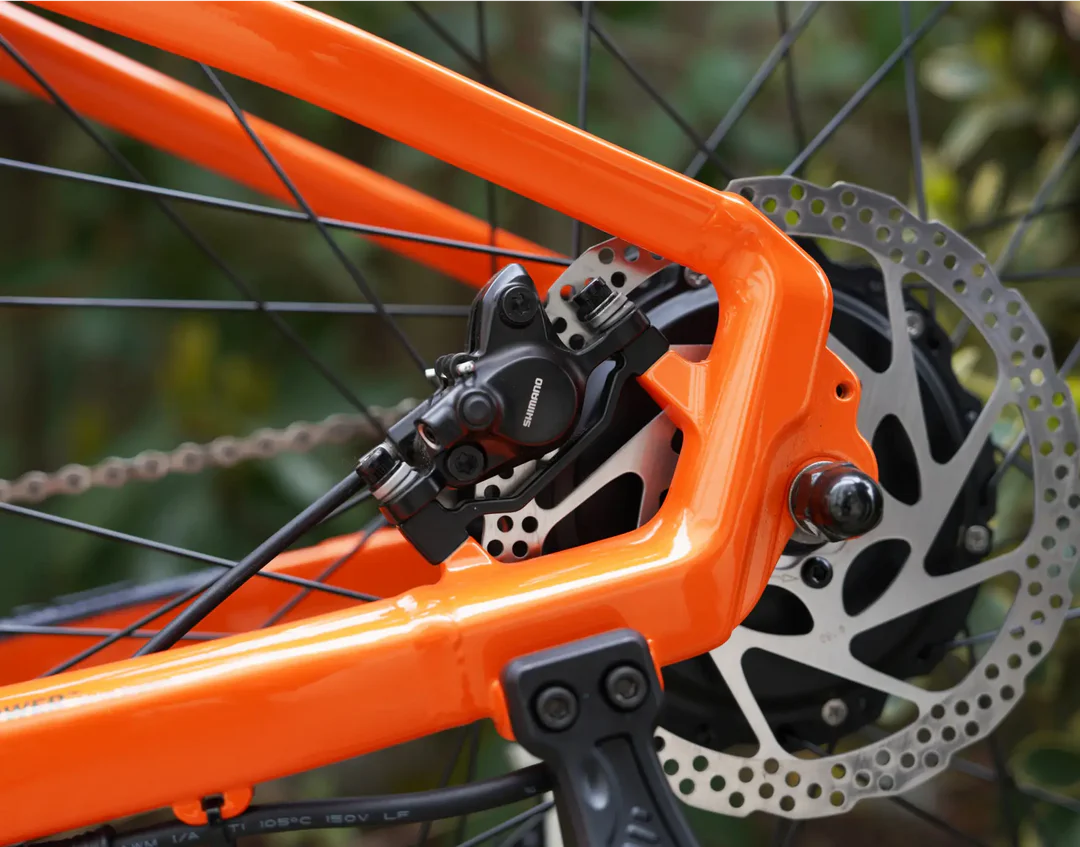

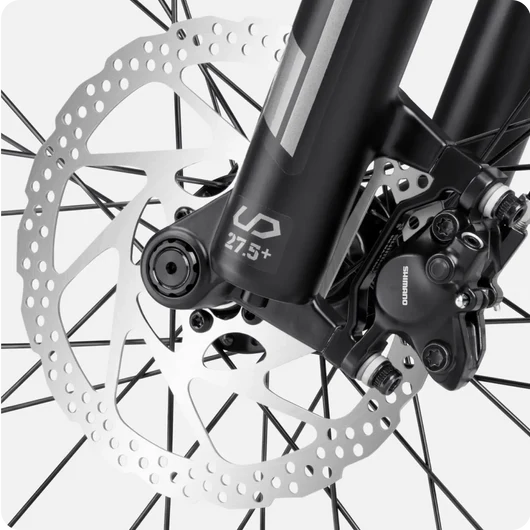

SHIMANO Hydraulic Disc Brakes

Equipped with SHIMANO 180mm hydraulic disc brakes, experience superior braking power, even in wet conditions - giving you ultimate control and confidence when riding your Summit 1.

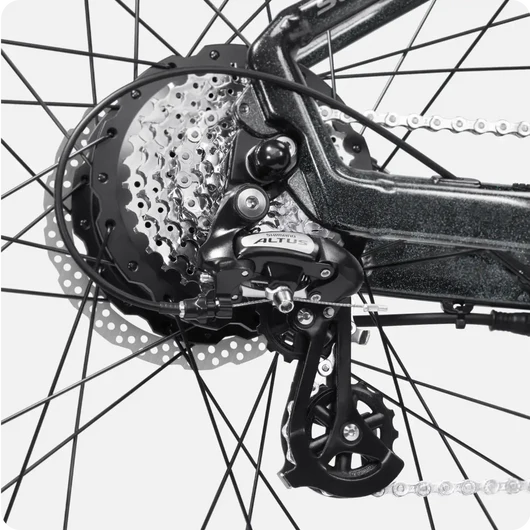

SHIMANO Shifting System

Shimano's 8-speed system is both extremely durable while delivering a broad gear range. This minimises maintenance yet ensures great performance on steep climbs and tough terrain.

120mm Hydraulic Suspension with Lockout

The hydraulic suspension with 120mm travel and lockout, absorbs impacts and vibrations on rough terrain, enhancing comfort, traction, and control for a smoother and safer ride.

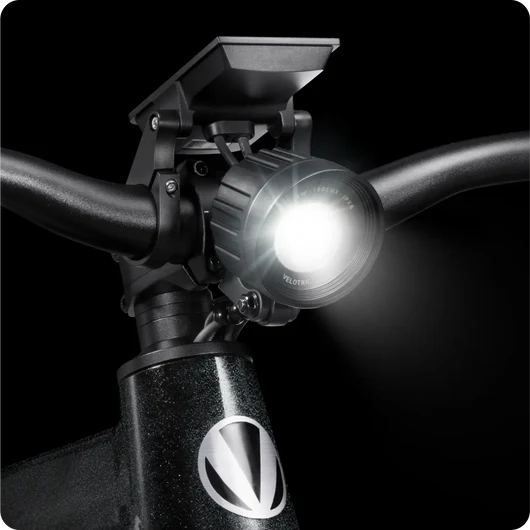

Safety Light System

The Summit 1 comes equipped with a 130Lux high-intensity LED headlight and a rear taillight with brake for maximum visibility. See and be seen, night or day on the Summit 1.

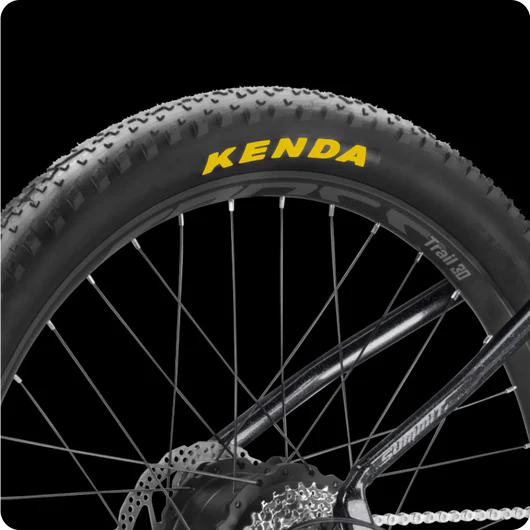

Kenda 27.5x2.6" Tires

The 2.6" wide mountain bike grade tires deliver maximum comfort, with a puncture-proof layer in order to minimise tire blowouts so you can focus on riding!

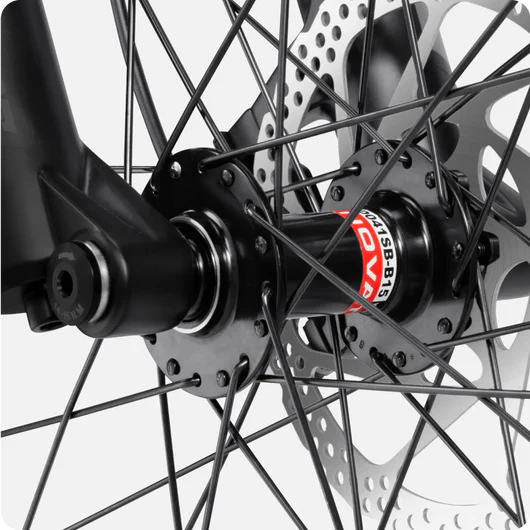

15x110mm Thru-Axle Hub

Summit 1 uses a 15x110 mm NOVATEC thru-axle hub for a sturdier and more durable experience.

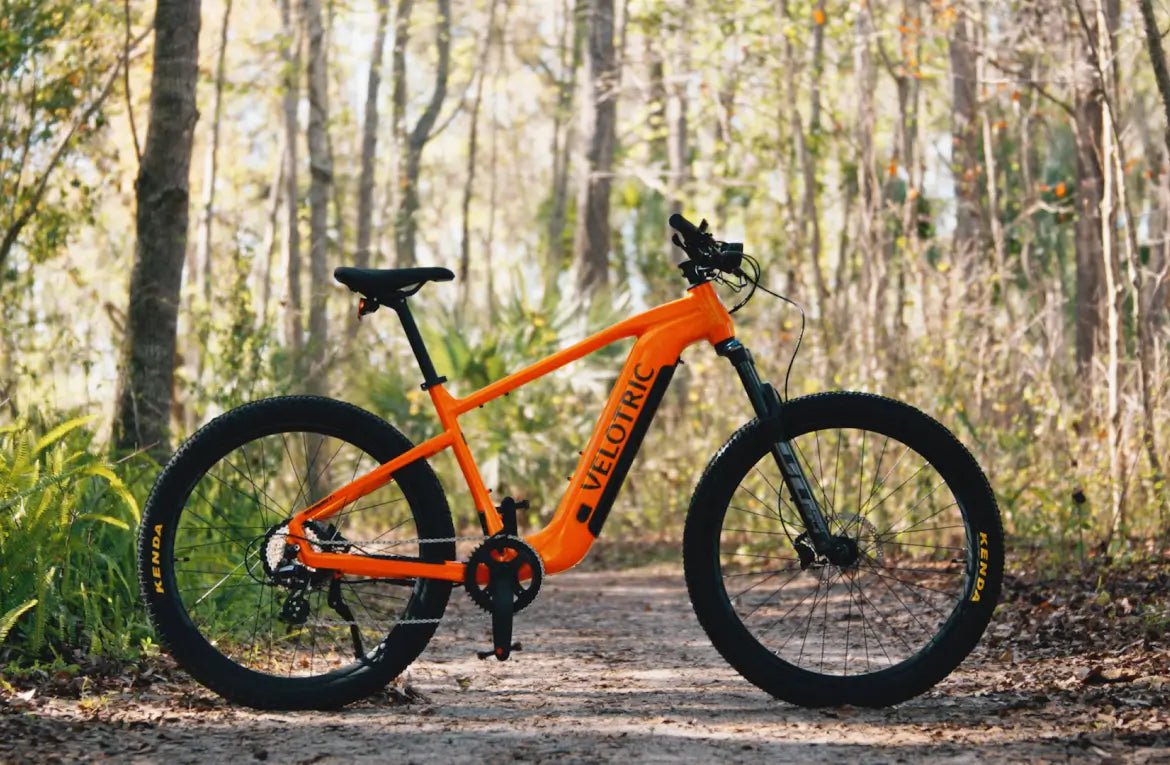

MADE FOR THE MOUNTAIN

  • With a powerful 750W motor that pushes out 90Nm of torque, you'll have no issues climbing the steepest hills.MTB-quality components for a reliable ride: 120mm hydraulic suspension, 2.6" Kenda tires, Novatec thru-axle hub, front and rear.
  • MTB-grade derailleur,Shimano gears and hydraulic disc brakes.Easily upgradeable configuration.

INDUSTRY-LEADING SAFETY

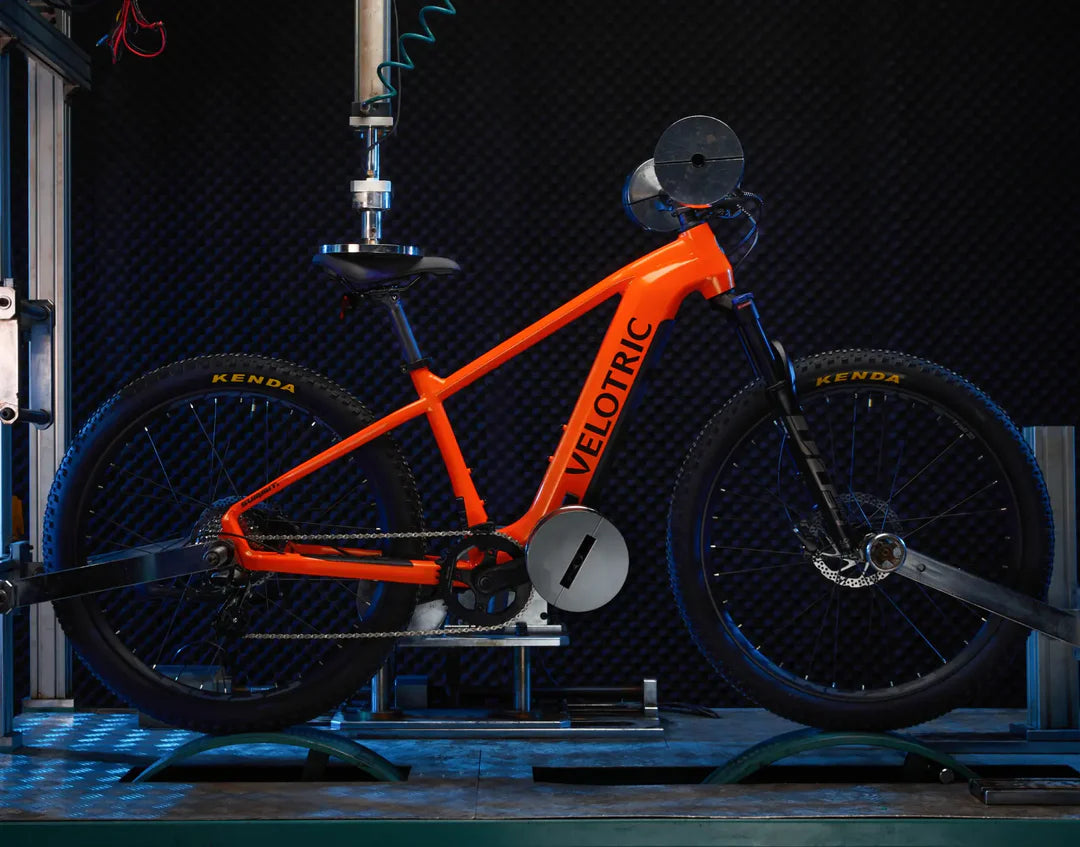

  • UL 2271 and UL 2849 certifications for leading e-bike battery and electrical system safety.Durable and strong, the Summit 1 mountain e-bike exceeds standard ISO tests, ensuring it can withstand the tough demands of rocky and bumpy terrains. Perfect for rigorous mountain rides.
  • IPX7 Waterproof rating for the battery, and IPX6 Waterproof rating for the Bike, making it ultra-waterproof and fit for all-weather rrding.
  • Powerful Brakes (SHIMANO hydraulic disc brakes) for all weather conditions.

POWER & EASE IN A SINGLE BIKE

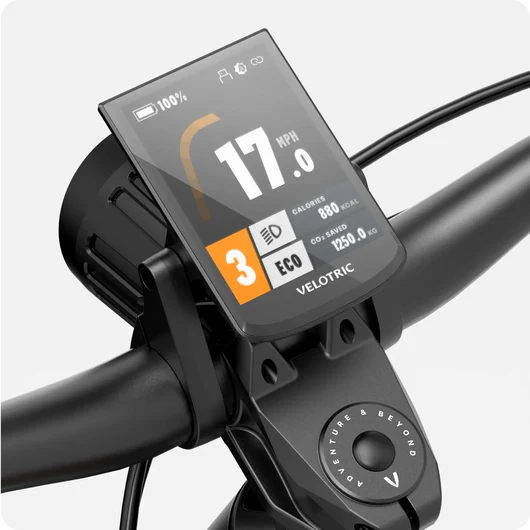

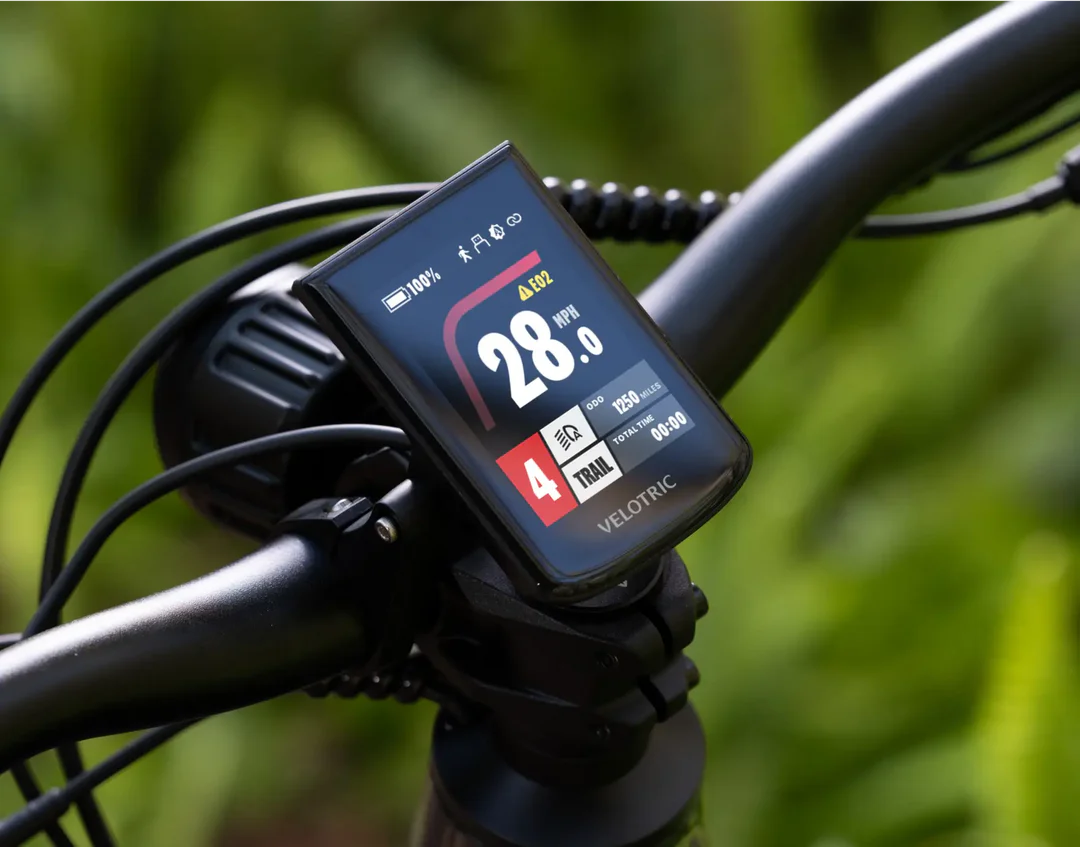

  • Vibrant TFT color display, 2.8" multifunctional screen.Easy switching between Class 1, 2 and 3 configurations.
  • The Velotric app for enhanced functionality - view riding data, customise your ride and more.
