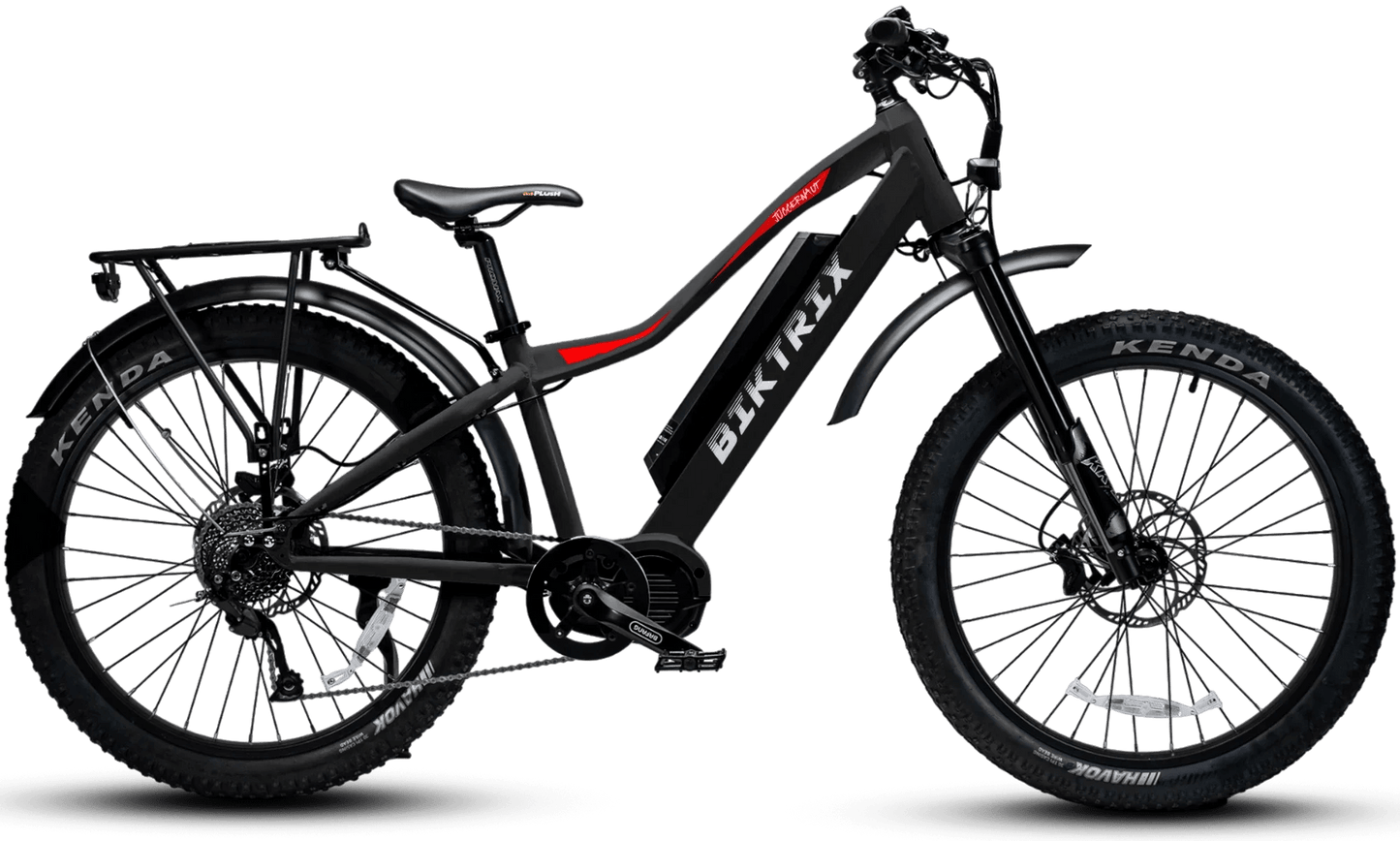

Biktrix Juggernaut XD Founders Edition
Biktrix Juggernaut XD Founders Edition
Regular price
$4,699.00 USD
Regular price
$4,999.00 USD
Sale price
$4,699.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Experience the revolution of electric biking with a powerful 3000W Biktrix XD Coaxial Drive Motor, reaching exhilarating speeds with tons of off-the-line torque! With a robust 380 lb load capacity, extremely upgradable base build, and features like a torque sensor and the 2000 Lumen Armageddon Headlight, this eBike blends performance and practicality seamlessly. Choose from two frame options, 16" medium or 19" large, for a personalized and exhilarating ride. Welcome to the future of effortless, stylish biking.
Collapsible content
Distance Range
Technical Specifications
Size & Fittings
| 1 |
Effective Top Tube Length |
590mm | 23.2in |
| 2 |
Seat Tube Length (Classic Bike Size) |
440mm | 17.3in |
| 3 |
Reach |
420mm | 16.5in |
| 4 |
Stack |
660mm | 26in |
| 5 |
Chainstay Length |
510mm | 20.1in |
| 6 |
Standover Height |
670mm | 26.4in |
| 7 |
Head Angle |
72° | - |
| 8 |
Seat Angle |
76° | - |
| 9 |
Head Tube Length |
200 mm | 7.9 in |
| 10 |
Fork Length |
550mm | 21.7in |
| 11 |
Front Center |
790mm | 31.1in |
| 12 |
BB (Bottom Bracket) Drop |
100mm | 3.9in |
| 13 |
Fork Offset |
35mm | 1.4in |
| 14 |
Wheelbase |
1290mm | 50.8in |
| 15 |
Total Length |
1190mm | 46.9in |
| 16 |
Max Seat Height |
940mm | 37in |
| 17 |
Min Seat Height |
780mm | 30.7in |
| 18 |
Handlebar Height |
1110mm | 43.7in |
| 19 |
Weight (Without Battery) |
31.2kg | 68.8lb |
| 1 | Effective Top Tube Length |
610mm | 24in |
| 2 | Seat Tube Length (Classic Bike Size) |
470mm | 18.5in |
| 3 |
Reach |
460mm | 18.1in |
| 4 |
Stack |
660mm | 26in |
| 5 |
Chainstay Length |
510mm | 20.1in |
| 6 |
Standover Height |
730mm | 28.7in |
| 7 |
Head Angle |
72° | - |
| 8 |
Seat Angle |
76° | - |
| 9 |
Head Tube Length |
200 mm | 7.9 in |
| 10 |
Fork Length |
550mm | 21.7in |
| 11 |
Front Center |
790mm | 31.1in |
| 12 |
BB (Bottom Bracket) Drop |
80mm | 3.1in |
| 13 |
Fork Offset |
35mm | 1.4in |
| 14 |
Wheelbase |
1310mm | 51.6in |
| 15 |
Total Length |
1990mm | 78.3in |
| 16 |
Max Seat Height |
1030mm | 40.6in |
| 17 |
Min Seat Height |
840mm | 33.1in |
| 18 |
Handlebar Height |
1120mm | 44.1in |
| 19 |
Weight (Without Battery) |
31.3kg | 69lb |
