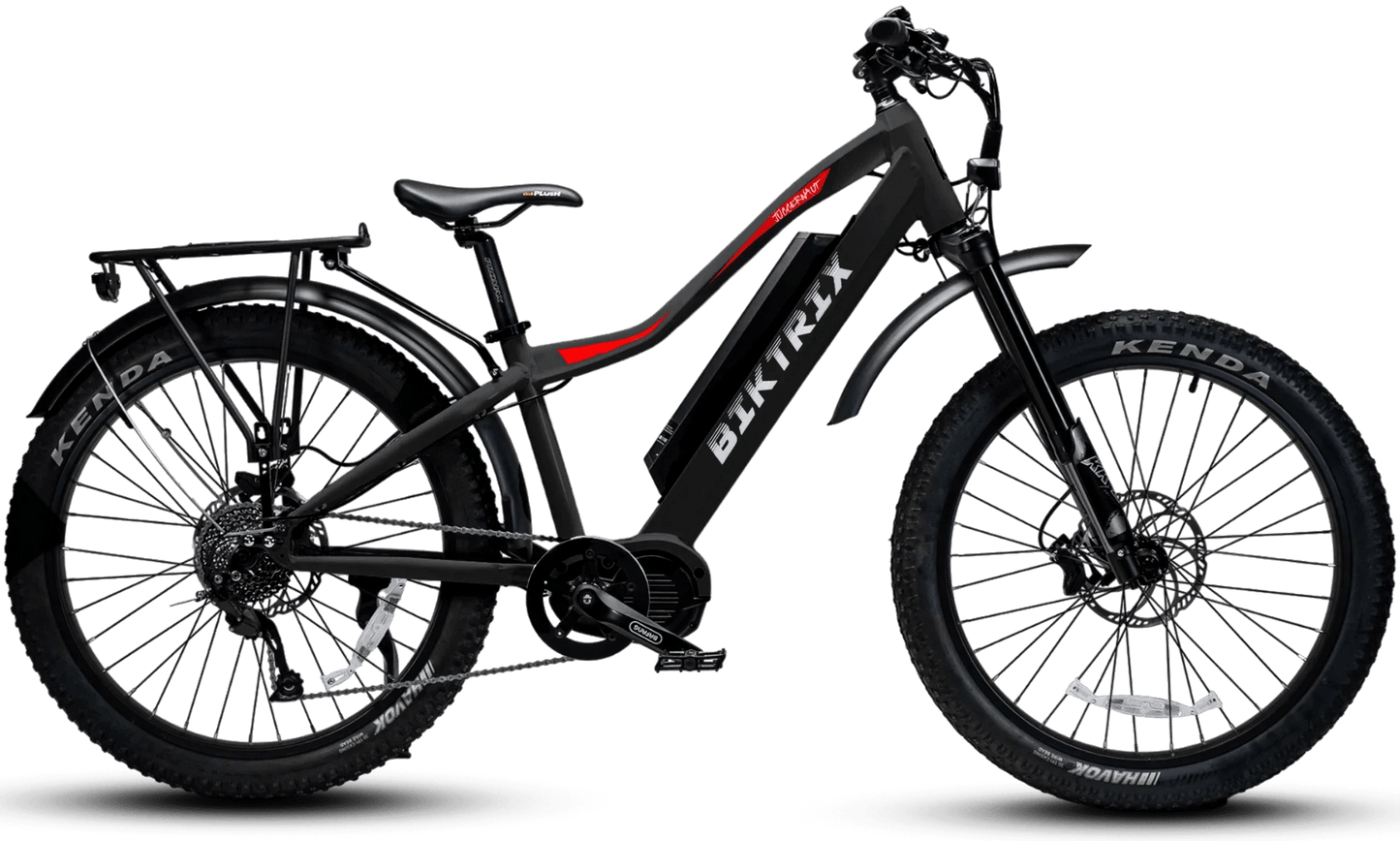

Biktrix Juggernaut Ultra Founders Edition

$3,699.00 USD

~~$3,999.00 USD~~ $3,699.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Experience the ultimate in e-biking with the Biktrix Juggernaut Ultra Founders Edition. Boasting the powerful Bafang Ultra motor with 1800W peak power and 160Nm torque. Choose from countless colors, tailor components to your style, and dominate roads and trails. Unmatched performance meets limitless personalization – create your dream today.

View full details

Distance Range

est. 35mi Range

Technical Specifications

Frame
6061 aluminum

Front hub
150mm ta 36h

Seat post
31.6mm

Fork
Biktrix inverted w/100mm travel, lockout and rebound adjustment

Front axle
15mm ta

Seat post clamp
Qr

Headset
Threadless 1-1/2 1-1/8 tapered

Rear hub
190mm ta 36h

Motor
Canbus bafang ultra m620 mid-drive

Shifter rear
Shimano alivio 9 speed

Rear axle
12mm ta

Battery sizes
60v 20ah 1200wh

Rear derailleur
Shimano alivio 9 speed

Rims
26" 36h 80mm black w/ red cutouts, 27.5" 36h 60mm solid black

Display
Dpc-18 canbus

Cassette
12-34t 9 speed cassette

Tire sizes
26x4 kenda, 27.5x3 kenda

Lights
Armageddon headlight, taillight

Chain
Kmc 9 speed

Handlebar
770mm wide mtb

Assist type
Torque + cadence

Crank set
40t chainring w/170mm arms

Stem
Promax 40mm w/ 31.8mm clamp

Assist levels
0-5

Bottom bracket
Bafang isis

Grips
Slide-on comfort grips

Throttle
Thumb throttle

Brakes
Iiipro e500 quad-piston hydraulic w/203mm rotors

Saddle
Velo plush mtb saddle

Other
Kickstand, rear rack, front and rear fenders

Brake levers
Adjustable w/ integrated brake cutoffs

Size & Fittings

Medium 16" Frame

1	Effective Top Tube Length	590mm	23.2in
2	Seat Tube Length (Classic Bike Size)	440mm	17.3in
3	Reach	420mm	16.5in
4	Stack	660mm	26in
5	Chainstay Length	510mm	20.1in
6	Standover Height	670mm	26.4in
7	Head Angle	72°	-
8	Seat Angle	76°	-
9	Head Tube Length	200 mm	7.9 in
10	Fork Length	550mm	21.7in
11	Front Center	790mm	31.1in
12	BB (Bottom Bracket) Drop	100mm	3.9in
13	Fork Offset	35mm	1.4in
14	Wheelbase	1290mm	50.8in
15	Total Length	1190mm	46.9in
16	Max Seat Height	940mm	37in
17	Min Seat Height	780mm	30.7in
18	Handlebar Height	1110mm	43.7in
19	Weight (Without Battery)	31.2kg	68.8lb

Large 19" Frame

1	Effective Top Tube Length	610mm	24in
2	Seat Tube Length (Classic Bike Size)	470mm	18.5in
3	Reach	460mm	18.1in
4	Stack	660mm	26in
5	Chainstay Length	510mm	20.1in
6	Standover Height	730mm	28.7in
7	Head Angle	72°	-
8	Seat Angle	76°	-
9	Head Tube Length	200 mm	7.9 in
10	Fork Length	550mm	21.7in
11	Front Center	790mm	31.1in
12	BB (Bottom Bracket) Drop	80mm	3.1in
13	Fork Offset	35mm	1.4in
14	Wheelbase	1310mm	51.6in
15	Total Length	1990mm	78.3in
16	Max Seat Height	1030mm	40.6in
17	Min Seat Height	840mm	33.1in
18	Handlebar Height	1120mm	44.1in
19	Weight (Without Battery)	31.3kg	69lb

1 5
