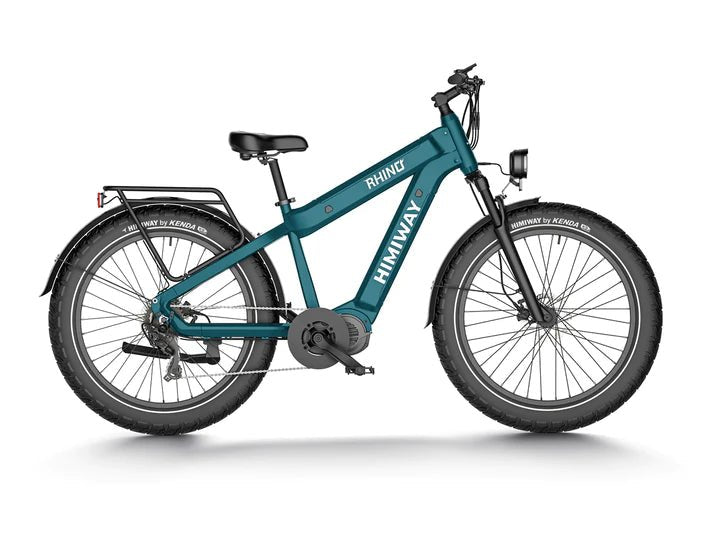

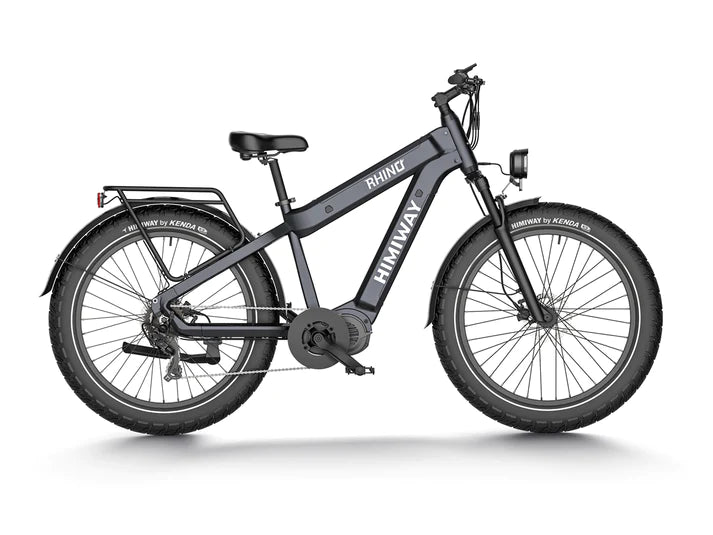

Himiway D5 Ultra Rhino

Name: Himiway D5 Ultra Rhino
Brand: Himiway
SKU: H-RHINO-MID-GN
Price: 3999.0 USD
Availability: InStock

$3,999.00 USD

~~$4,199.00 USD~~ $3,999.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Introducing the HIMIWAY D5 Pro Step-Through Electric Bike: Your Ultimate Adventure Companion! 🚴‍♂️

Key Features:

750W Motor Power: The HIMIWAY D5 Pro combines adaptability and comfort with a powerful 750W gear hub motor, ensuring smooth rides and effortless hill climbs.
960Wh Samsung/LG Battery: With a removable 48V 20Ah battery capacity, enjoy up to 80 miles on a single charge with pedal assist.
26x4" Kenda Fat Tires: Exceptional stability on any terrain.
Hydraulic Brakes: Responsive braking performance for safety and control.
Shimano 9-Speed Gear Shift System: Optimize battery usage effectively in different riding conditions.
Thumb Throttle: Quick reaction for city streets and safety.

Elegance is in the Details: Designed to perfectly balance outstanding performance, ultimate comfort, and timeless style, the D5 Pro ensures a smooth ride. Features include hydraulic brakes, a customized integrated brake light, a comfortable Selle Royal saddle, and a 500LM luminosity spotlight for enhanced visibility at night.

Explore, Ride, Repeat: Whether you’re commuting or tackling rugged landscapes, the HIMIWAY D5 Pro Step-Through is your go-to electric bike.

View full details

Size Chart

Recommended Height: 5'3" ~ 6'4"

A – total length

78.7
B – handlebar height

43.8
C – handlebar length

27.6
D – wheelbase

48.9
E – wheel diameter

29.8
F – minimum seat height

34.6
G – maximum seat height

42.1
H – chain stay length

61
K – effective top tube length

21.9
L – head tube length

7.9
N – standover height

32.3

Overview

100 Miles
Per Charge(maximum) *1

1000 W
Geared Hub/Mid-drive Motor

Hydraulic
Brakes

Torque
Sensor *2

400 lb.
Payload Capacity

9/10-Speed
Shimano Derailleur

720Wh*2
Samsung/LG Battery

20+ Mph
Top Speed *3

1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
2 - For D5 Ultra
3 - Reach speeds of up to 20 mph, No pedaling required.

Specifications

Frame
6061 Aluminum frame

Headset
Neco H148 28.6"44*44*30mm

Fork
TRAMA FAT34-PLS 26 Air Spring 100mm travel 15*150mm thru axle *1

Shock
Alloy front suspension fork with lockout and adjustment

Front wheel
Rim：MD242 26*12G*36 | Spoke：12G 256/257L | Hub：M104F-150 12G*150

Rear wheel
Rim：MD242 26*12G*36 | Spoke：12G 256/257L | Hub：MB019R-190F-GM14

Tires
Kenda X Himiway K1277 26*4.5

Battery
48V 15Ah*2

Motor
1000W mid-drive motor *2

Display
LCD display with Type-c charger

Throttle
Thumb throttle

Sensors
Torque sensor丨shifting sensor | speed sensor丨brake
sensor *3

Crankset
Crank arm: Bafang 170mm | Chain ring: 44T *4

Cassette
Shimano CS-HG500-10 11--34T *5

Chain
KMC E10S-EPT 124L *6

Groupset
Shiminao deore 10 speed

Front brake
Tektro HD-E350 hydraulic brake

Rear brake
Tektro HD-E350 hydraulic brake

Rotors
Tektro TR180-24 F:180mm R:180mm

1 - D5 Plus: TRAMA FAT34-PLS 26 Coil Spring 100mm travel 15*150mm thru axle
2 - D5 Plus: 1000W brushless gear motor
3 - D5 Plus: Torque sensor丨speed sensor丨brake sensor
4 - D5 Plus: Crank arm: EB-01-242A-S1 forged alloy 170mm | Chain ring: 44T
5 - D5 Plus: Shimano CS-HG201-9 11-36T
6 - D5 Plus: KMC E9-S EPT 124L

Components

Stem
TDS-D704-8FOV/ISO-M 28.6*90*31.8

Handlebar
MTB-AL-312BT FOV/ISO-M/AL/BACK SWEEP:6°
31.8mm*22.2mm*700W

Seatpost
ALLOY 30.4*350mm

Saddle
Himwiay TTZ032X saddle

Pedal
Aluminum pedal

Lights
48V LED light

Kickstand
Heavy-duty aluminum kickstand

Other

Range
80-110 miles

Controller
48V/25A

Charger
US standard 3.0 A smart charger

Rider height
5'3" ~ 6'4"

Weight
97 lb. (with battery)

Max. system weight
400 lb.
