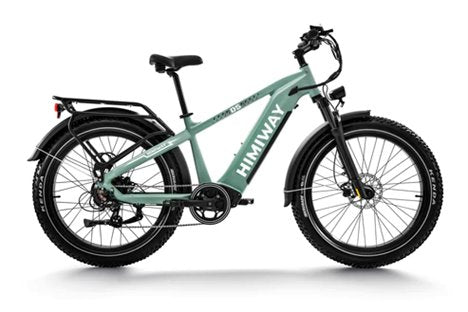

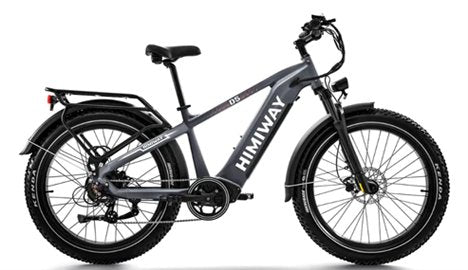

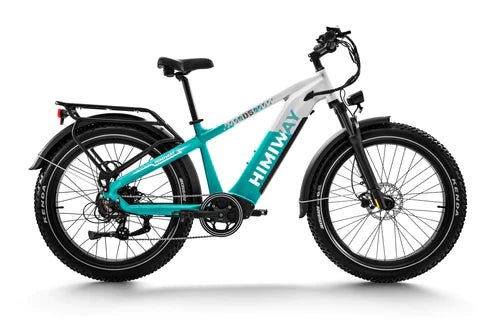

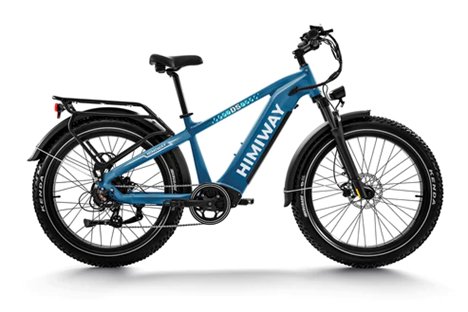

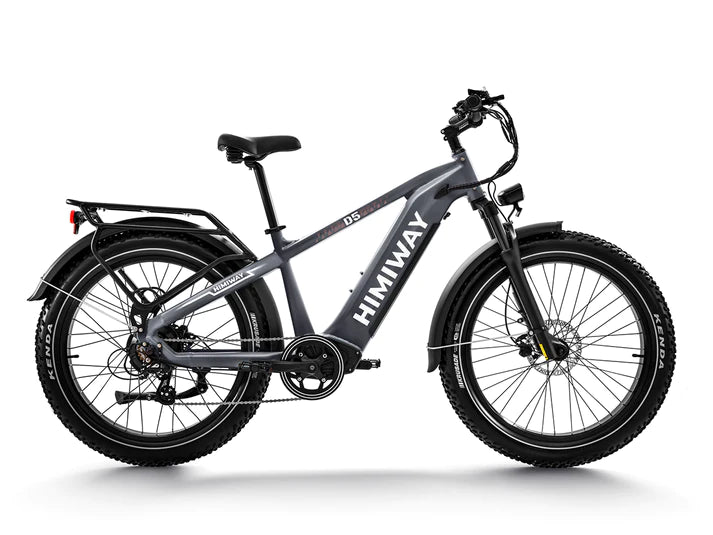

Himiway D5 Pro

Himiway D5 Pro

$1,999.00 USD
$2,199.00 USD $1,999.00 USD
Sale Sold out
Shipping calculated at checkout.

Go Further Than Ever

Himiway D5 (Zebra), the updated version of Himiway D3 (Cruiser), is equipped with a powerful 750W gear hub motor, hydraulic Brakes, 400 lbs payload capacity, and upgraded inner ring. The design of 26-inch Kenda fat tire strengthens the traction, avoiding slipping on the ground and sinking in mud or snow. With removable 960Wh Samsung/LG battery capacity and 52 5000mAh cells, the riding mileage of the Zebra ebike is 80 miles with pedal assist and 60 miles range with pure electric power. Keep wild on Himiway.



View full details

Size Chart

Geometry
Recommended Height: 5'3" ~ 6'5"
  • A – total length
    78.7
  • B – handlebar height
    47
  • C – handlebar length
    28
  • D – wheelbase
    49.2
  • E – wheel diameter
    28.7
  • F – minimum seat height
    20.9
  • G – maximum seat height
    31.4
  • H – chain stay length
    19
  • I – frame stack
    24.6
  • J – frame reach
    17.8
  • K – effective top tube length
    24.4
  • L – head tube length
    5.5
  • M – head angle
    65°
  • N – standover height
    ST 22.4/ SO 31.1

Overview

960 Wh
Samsung/LG Battery

80 Miles
Per Charge (maximum) *1

750 W
Geared Hub Motor

20+ Mph
Top Speed *2

400 lb.
Payload Capacity

26x4 "
Kenda Fat Tire

7-Speed
Shimano Derailleur

Hydraulic
Brakes

1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
2 - Reach speeds of up to 20 mph, No pedaling required.

Specifications

Frame
6061 Aluminum frame

Headset
Neco H156EM 28.6*44-56*30

Fork
TRAMA 26"FAT34-26-HLO 95mm travel 9*135mm quick release *1

Shock
Alloy front suspension fork with lockout and adjustment

Front wheel
Rim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 255/256L stainless (304M) | Hub: MB015-92 M9*12G*135*145W

Rear wheel
Rim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 214L stainless (304M) | Hub: 48v 750w Himiway hub motor *2

Tires
Kenda 26*4.0

Battery
Samsung/LG 48V 20Ah

Motor
750W brushless gear motor *3

Display
LCD display with Type-c charger *4

Throttle
Thumb throttle

Sensors
Torque sensor丨speed sensor丨brake sensor *5

Crankset
Crankarm: Prowheel EB-01-242A-S1 170mm | Chain ring: 44T BCD104 *6

Freewheel
Shimano MF-TZ500-7 14-28T *7

Chain
KMC Z8.3 EPT 120L *8

Groupset
Shimano altus M310 7 speed *9


1 - D5 pro: TRAMA FAT34-PLS-26" 100mm travel 15*135mm thru axle
2 - D5 pro: Rim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 256/257L stainless (304M) | Hub: GSMB019R-190F-GM14
3 - D5 pro: 500W mid-drive motor
4 - D5 pro: KD718-P LCD display with Type-c charger
5 - D5 pro: Torque sensor丨shifting sensor speed sensor丨brake sensor
6 - D5 pro: Crankarm: Prowheel 170mm / Chain ring: 44T BCD104
7 - D5 pro: Shimano CS-HG201-9 11-36T
8 - D5 pro: KMC E9 EPT 124L
9 - D5 pro: Shimano altus M2000 9 speed

Components

Stem
Promax MA-400 28.6*90*10D*41H *10

Handlebar
Promax HB-3188 22.2*31.8*700mm

Seatpost
Himiway Seatpost *11

Saddle
Himiway Saddle *12

Pedal
Aluminum pedal

Lights
48V LED light

Kickstand
Heavy-duty aluminum kickstand


10 - D5 pro: Zoom TDS-C269-8FOV 31.8*90mm
11 - Zebra: SP-2003 30.9*350mm
12 - Zebra: Selle royal A054UE

Other

Range
60-80 miles

Controller
48V/22A

Charger
US standard 3.0 A smart charger

Rider height
5′3″ ~ 6′5″

Weight
79 lb. (with battery)

Max. system weight
400 lb.
