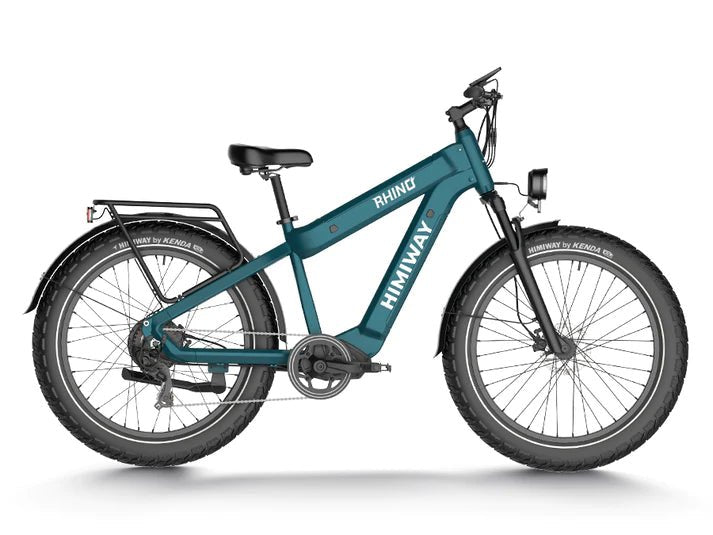

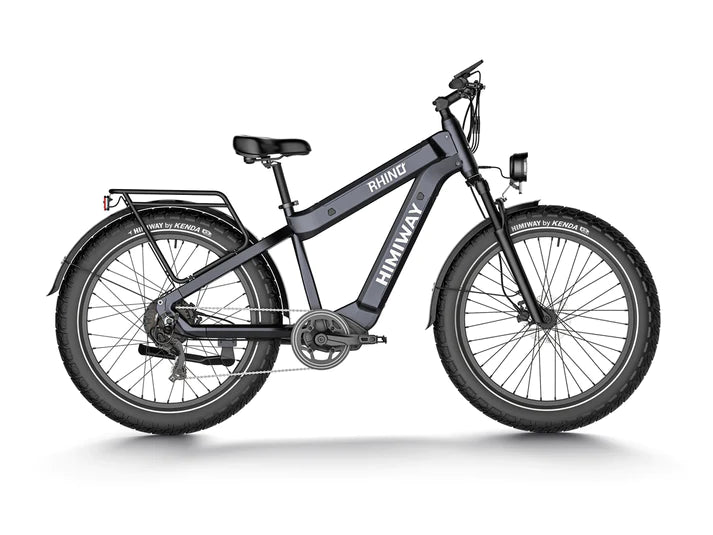

Himiway D5 Plus Rhino
Himiway D5 Plus Rhino
Share
Long Range Expert
If range anxiety is of concern to you, D5 Plus (Rhino) will get you covered with its 1440wh battery capacity. Battery density has increased by 21% from 18,650 to 21,700 cells, allowing you to ride up to 100 miles for a single charge. And worried about long charging times? It takes only 5 hours to get fully charged.
Collapsible content
Size Chart
-
A – total length78.7
-
B – handlebar height43.8
-
C – handlebar length27.6
-
D – wheelbase48.9
-
E – wheel diameter29.8
-
F – minimum seat height34.6
-
G – maximum seat height42.1
-
H – chain stay length61
-
K – effective top tube length21.9
-
L – head tube length7.9
-
N – standover height32.3
Overview
100 Miles
Per Charge(maximum) *1
1000 W
Geared Hub/Mid-drive Motor
Hydraulic
Brakes
Torque
Sensor *2
400 lb.
Payload Capacity
9/10-Speed
Shimano Derailleur
720Wh*2
Samsung/LG Battery
20+ Mph
Top Speed *3
1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
2 - For D5 Ultra
3 - Reach speeds of up to 20 mph, No pedaling required.
Specifications
Frame
6061 Aluminum frame
Headset
Neco H148 28.6"44*44*30mm
Fork
TRAMA FAT34-PLS 26 Air Spring 100mm travel 15*150mm thru axle *1
Shock
Alloy front suspension fork with lockout and adjustment
Front wheel
Rim:MD242 26*12G*36 | Spoke:12G 256/257L | Hub:M104F-150 12G*150
Rear wheel
Rim:MD242 26*12G*36 | Spoke:12G 256/257L | Hub:MB019R-190F-GM14
Tires
Kenda X Himiway K1277 26*4.5
Battery
48V 15Ah*2
Motor
1000W mid-drive motor *2
Display
LCD display with Type-c charger
Throttle
Thumb throttle
Sensors
Torque sensor丨shifting sensor | speed sensor丨brake
sensor *3
Crankset
Crank arm: Bafang 170mm | Chain ring: 44T *4
Cassette
Shimano CS-HG500-10 11--34T *5
Chain
KMC E10S-EPT 124L *6
Groupset
Shiminao deore 10 speed
Front brake
Tektro HD-E350 hydraulic brake
Rear brake
Tektro HD-E350 hydraulic brake
Rotors
Tektro TR180-24 F:180mm R:180mm
1 - D5 Plus: TRAMA FAT34-PLS 26 Coil Spring 100mm travel 15*150mm thru axle
2 - D5 Plus: 1000W brushless gear motor
3 - D5 Plus: Torque sensor丨speed sensor丨brake sensor
4 - D5 Plus: Crank arm: EB-01-242A-S1 forged alloy 170mm | Chain ring: 44T
5 - D5 Plus: Shimano CS-HG201-9 11-36T
6 - D5 Plus: KMC E9-S EPT 124L
Components
Stem
TDS-D704-8FOV/ISO-M 28.6*90*31.8
Handlebar
MTB-AL-312BT FOV/ISO-M/AL/BACK SWEEP:6°
31.8mm*22.2mm*700W
Seatpost
ALLOY 30.4*350mm
Saddle
Himwiay TTZ032X saddle
Pedal
Aluminum pedal
Lights
48V LED light
Kickstand
Heavy-duty aluminum kickstand
Other
Range
80-110 miles
Controller
48V/25A
Charger
US standard 3.0 A smart charger
Rider height
5'3" ~ 6'4"
Weight
97 lb. (with battery)
Max. system weight
400 lb.
