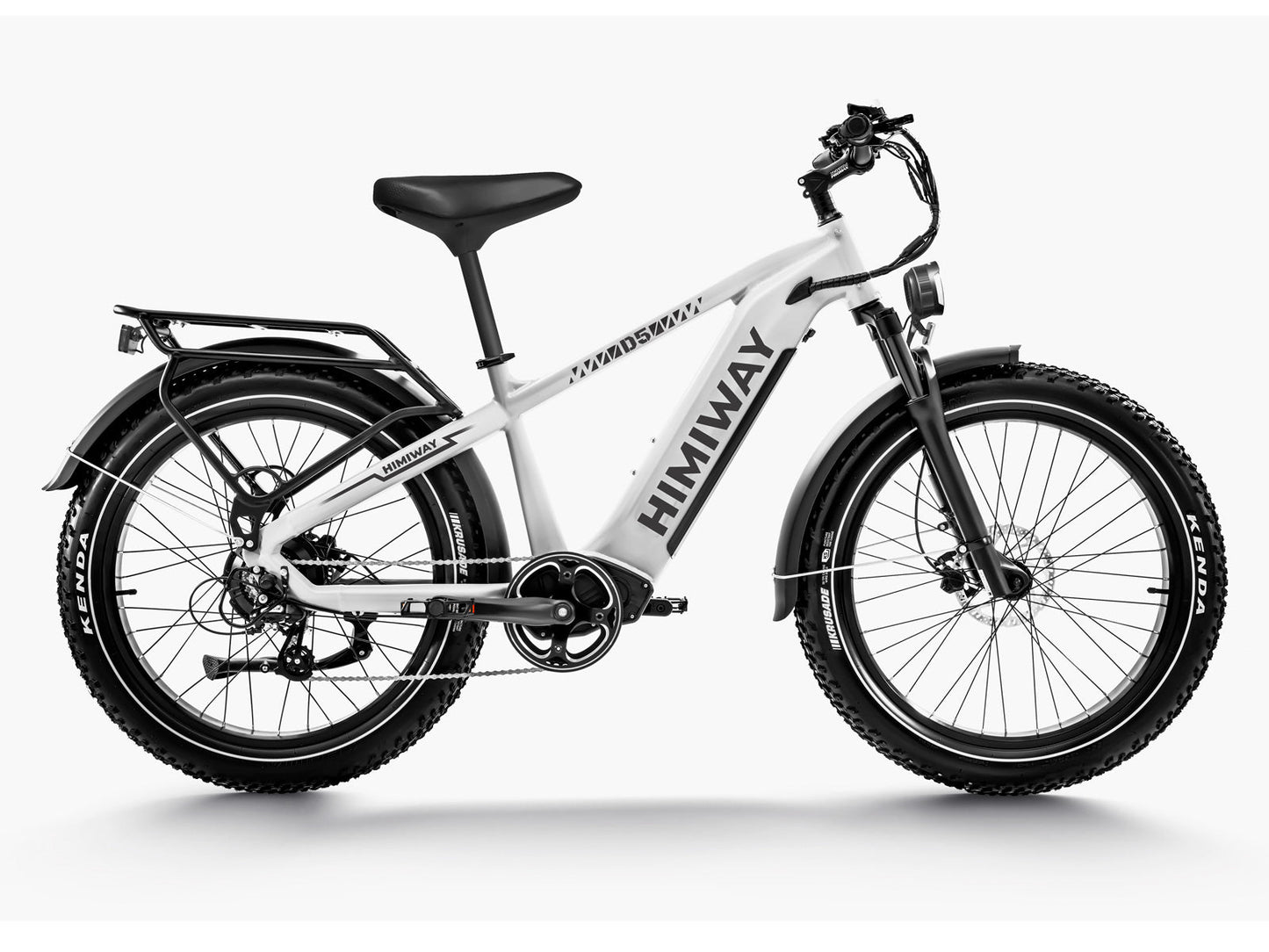

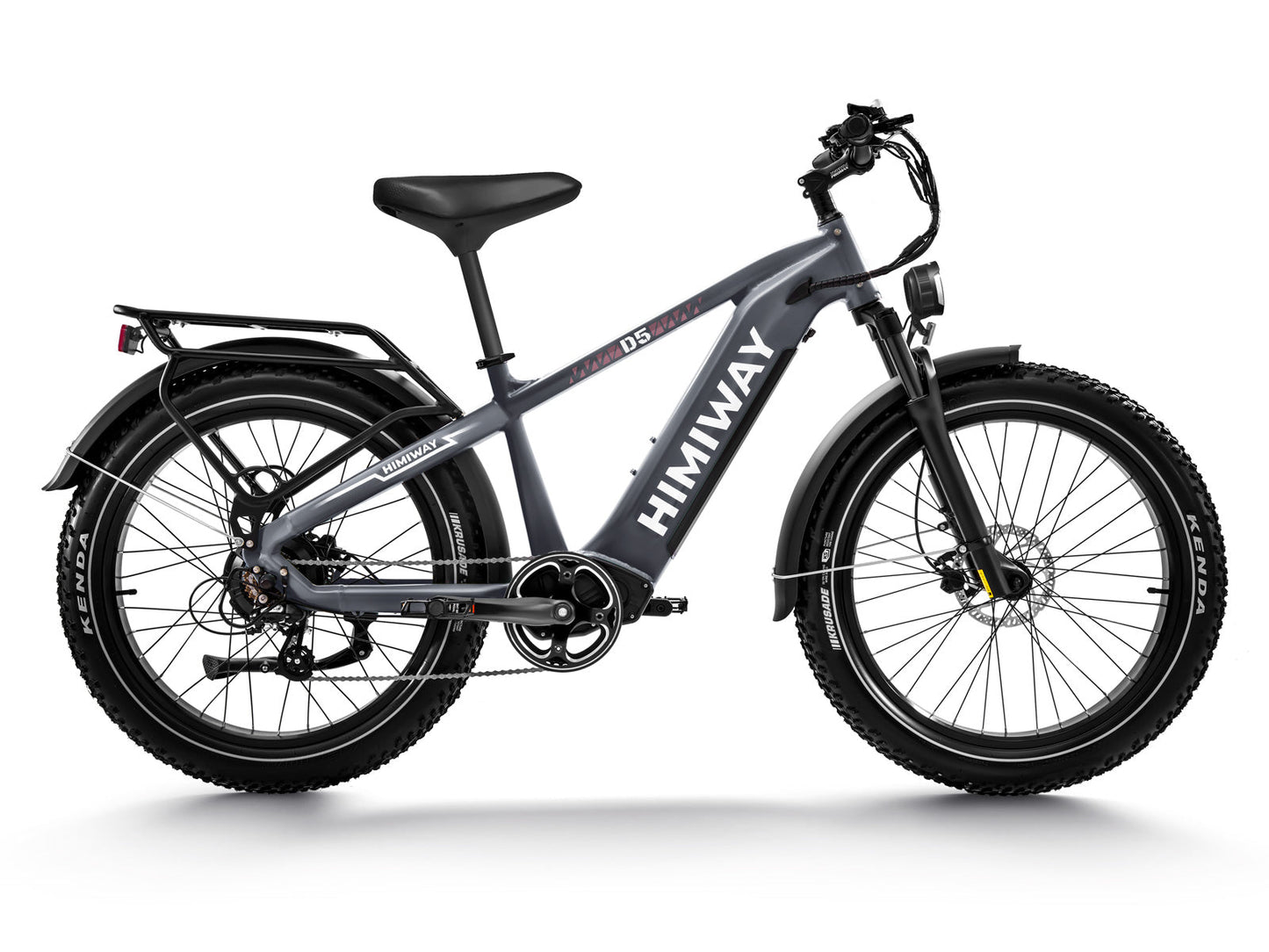

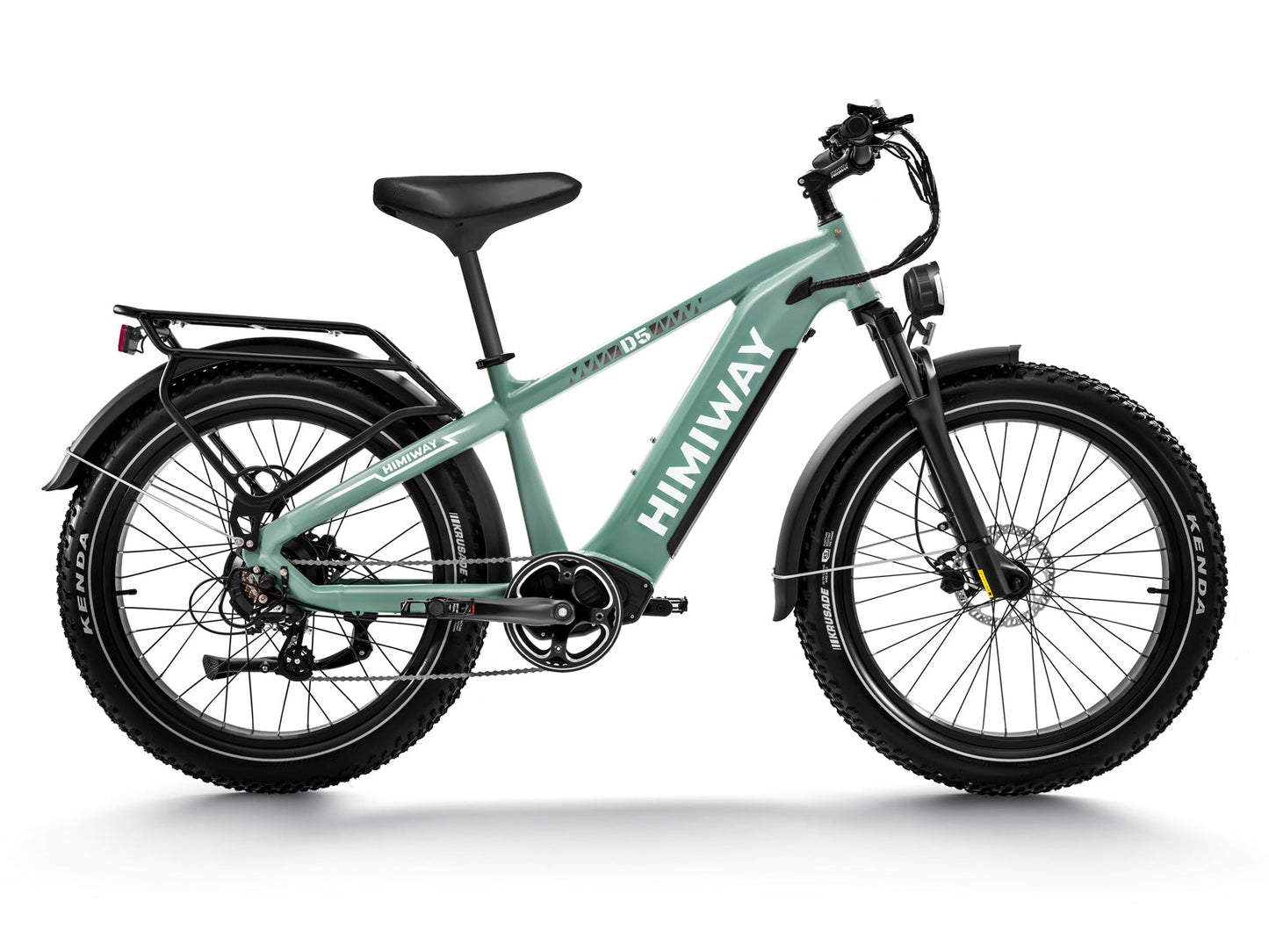

Himiway D5

Himiway D5

$1,599.00 USD
$1,799.00 USD $1,599.00 USD
Sale Sold out
Shipping calculated at checkout.

HIMIWAY D5 Step-Through Electric Bike: Your Ultimate Adventure Companion! 🚴‍♂️

Key Features:

Explore, Ride, Repeat: Whether you’re commuting or exploring off-road trails, the HIMIWAY D5 Step-Through is your go-to electric bike



View full details

Size Chart

Geometry
Recommended Height: 5'3" ~ 6'5"
  • A – total length
    78.7
  • B – handlebar height
    47
  • C – handlebar length
    28
  • D – wheelbase
    49.2
  • E – wheel diameter
    28.7
  • F – minimum seat height
    20.9
  • G – maximum seat height
    31.4
  • H – chain stay length
    19
  • I – frame stack
    24.6
  • J – frame reach
    17.8
  • K – effective top tube length
    24.4
  • L – head tube length
    5.5
  • M – head angle
    65°
  • N – standover height
    ST 22.4/ SO 31.1

Overview

960 Wh
Samsung/LG Battery

80 Miles
Per Charge (maximum) *1

750 W
Geared Hub Motor

20+ Mph
Top Speed *2

400 lb.
Payload Capacity

26x4 "
Kenda Fat Tire

7-Speed
Shimano Derailleur

Hydraulic
Brakes

1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
2 - Reach speeds of up to 20 mph, No pedaling required.

Specifications

Frame
6061 Aluminum frame

Headset
Neco H156EM 28.6*44-56*30

Fork
TRAMA 26"FAT34-26-HLO 95mm travel 9*135mm quick release *1

Shock
Alloy front suspension fork with lockout and adjustment

Front wheel
Rim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 255/256L stainless (304M) | Hub: MB015-92 M9*12G*135*145W

Rear wheel
Rim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 214L stainless (304M) | Hub: 48v 750w Himiway hub motor *2

Tires
Kenda 26*4.0

Battery
Samsung/LG 48V 20Ah

Motor
750W brushless gear motor *3

Display
LCD display with Type-c charger *4

Throttle
Thumb throttle

Sensors
Torque sensor丨speed sensor丨brake sensor *5

Crankset
Crankarm: Prowheel EB-01-242A-S1 170mm | Chain ring: 44T BCD104 *6

Freewheel
Shimano MF-TZ500-7 14-28T *7

Chain
KMC Z8.3 EPT 120L *8

Groupset
Shimano altus M310 7 speed *9


1 - D5 pro: TRAMA FAT34-PLS-26" 100mm travel 15*135mm thru axle
2 - D5 pro: Rim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 256/257L stainless (304M) | Hub: GSMB019R-190F-GM14
3 - D5 pro: 500W mid-drive motor
4 - D5 pro: KD718-P LCD display with Type-c charger
5 - D5 pro: Torque sensor丨shifting sensor speed sensor丨brake sensor
6 - D5 pro: Crankarm: Prowheel 170mm / Chain ring: 44T BCD104
7 - D5 pro: Shimano CS-HG201-9 11-36T
8 - D5 pro: KMC E9 EPT 124L
9 - D5 pro: Shimano altus M2000 9 speed

Components

Stem
Promax MA-400 28.6*90*10D*41H *10

Handlebar
Promax HB-3188 22.2*31.8*700mm

Seatpost
Himiway Seatpost *11

Saddle
Himiway Saddle *12

Pedal
Aluminum pedal

Lights
48V LED light

Kickstand
Heavy-duty aluminum kickstand


10 - D5 pro: Zoom TDS-C269-8FOV 31.8*90mm
11 - Zebra: SP-2003 30.9*350mm
12 - Zebra: Selle royal A054UE

Other

Range
60-80 miles

Controller
48V/22A

Charger
US standard 3.0 A smart charger

Rider height
5′3″ ~ 6′5″

Weight
79 lb. (with battery)

Max. system weight
400 lb.
