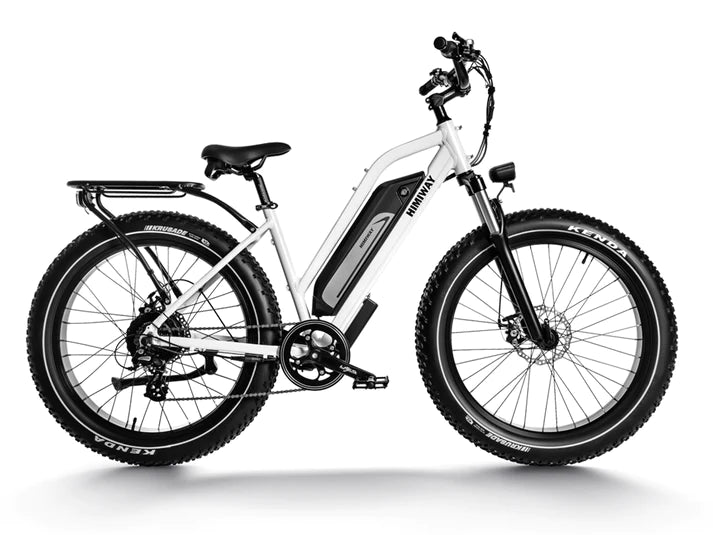

Himiway D3 Cruiser ST

• A – total length
  75
• B – handlebar height
  46.5
• C – handlebar length
  28
• D – wheelbase
  45
• E – wheel diameter
  28.7
• F – minimum seat height
  22
• G – maximum seat height
  29
• H – chain stay length
  18.7
• K – effective top tube length
  23
• L – head tube length
  6.1
• N – standover height
  ST 27.9/ SO 30.3

840 Wh
Samsung/LG Battery

60 Miles
Per Charge (maximum) *1

750 W
Geared Hub Motor

20+ Mph
Top Speed *2

350 lbs
Payload Capacity

26x4 "
Kenda Fat Tire

7-Speed
Shimano Derailleur

Mechanical Brakes
180MM

1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
2 - Reach speeds of up to 20 mph, No pedaling required.

Frame
6061 Aluminum frame

Headset
Neco H148 28.6×44*44×30mm

Fork
Guide-26”-TNL-95 95mm travel

Shock
Alloy front suspension fork with lockout and adjustment

Front wheel
MB015-92 13G*135*9mm MD242 26*87mm 12G*36

Rear wheel
Rim: 3G*135*9mm MD242 26*87mm | Spoke: 12G*36 | Hub: 48v 750w Himiway hub motor

Tires
Kenda 26*4.0

Battery
Samsung/LG 48V 17.5Ah

Motor
750W brushless gear motor

Display
LCD display with USB charging

Throttle
Half twist throttle

Sensors
Cadence sensor丨speed sensor丨brake sensor

Crankset
Crank arm: 4IXF-212FA 170mm | Chain ring: 46T

Freewheel
Shimano MF-TZ500-7 14-28T

Chain
KMC Z8.3 EPT 120L

Groupset
Shimano altus M310 7 speed

Front brake
Tektro ARIES MD-M300 mechanical disc brakes

Rear brake
Tektro ARIES MD-M300 mechanical disc brakes

Rotors
Tektro TR180-24 F:180mm R:180mm

Stem
YC-C410 28.6*80*31.8mm

Handlebar
YC-B087 22.2*31.8*700mm

Seatpost
H202211DJ ISO-M 30.4*350mm

Saddle
TTZ032X

Pedal
Aluminum pedal

Lights
48V LED light

Kickstand
Heavy-duty aluminum kickstand

Range
35~60 miles

Controller
48V/22A

Charger
US standard 2.0 A smart charger

Rider height
5′1″ ~ 6′5″

Rider height
72lb.(with battery)

Max. system weight
350 lb.
