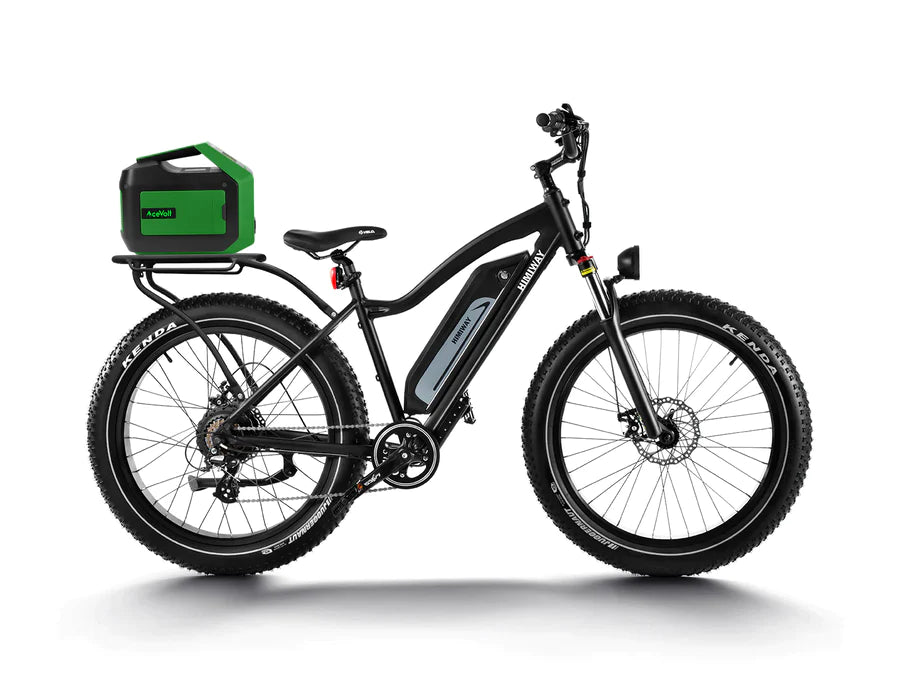

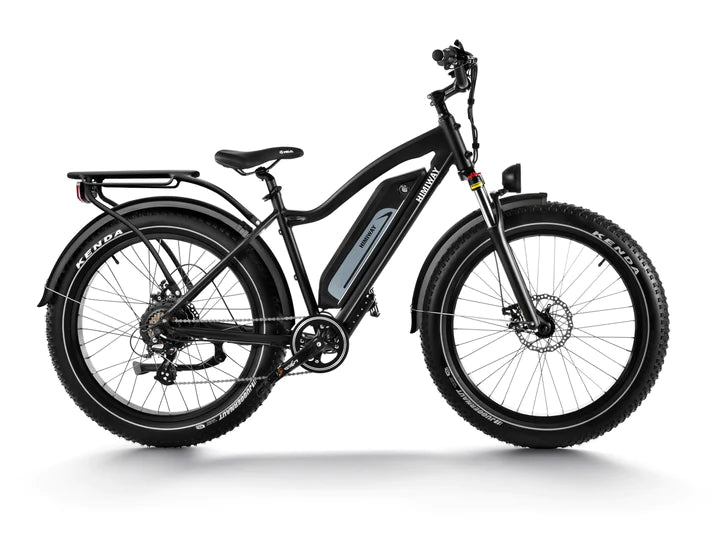

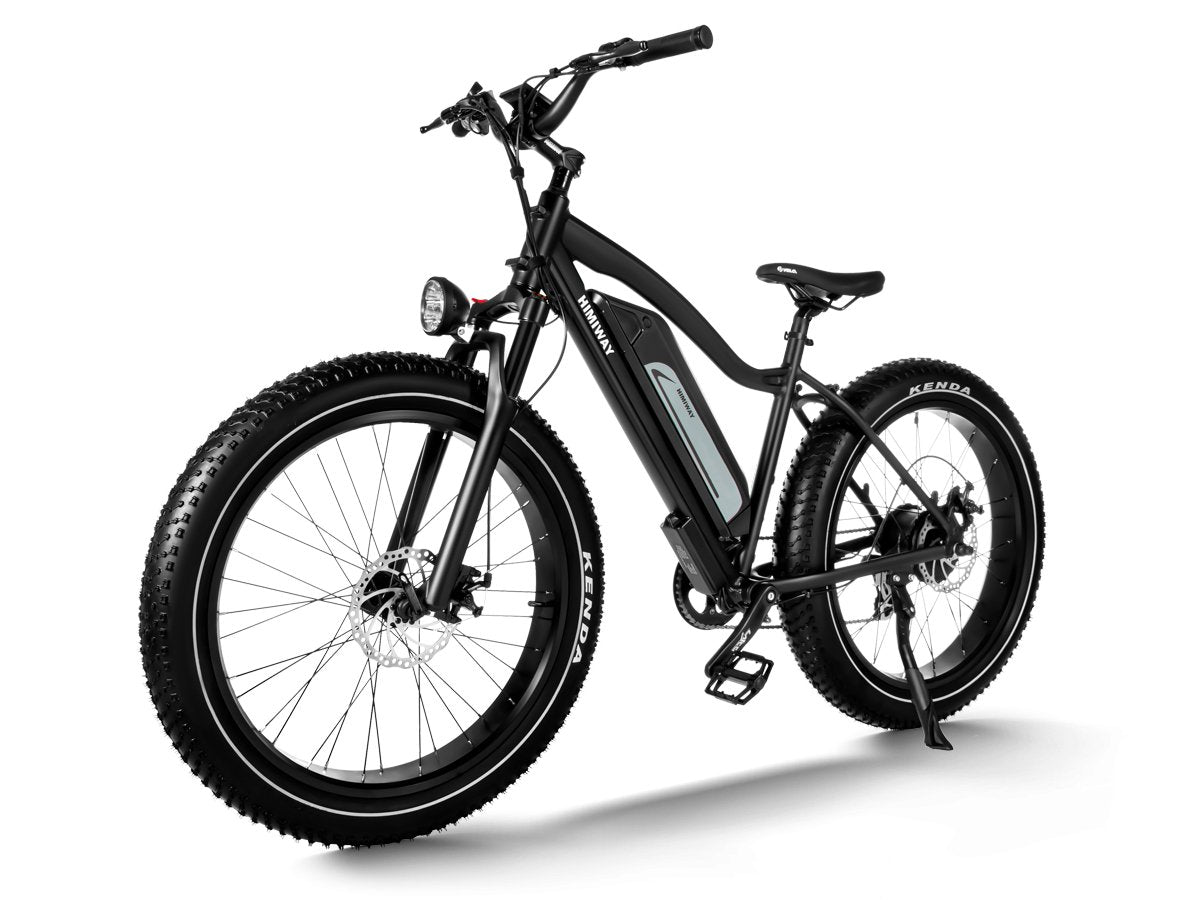

Himiway D3 Cruiser

Himiway D3 Cruiser

$999.00 USD
$1,699.00 USD $999.00 USD
Sale Sold out
Shipping calculated at checkout.

Introducing the HIMIWAY Cruiser D3 Step Over e-Bike: Your Ultimate Adventure Companion! 🚴‍♂️

Key Features:

  • 750W Motor Power: The HIMIWAY Cruiser D3 boasts a powerful 750W motor, ensuring smooth rides and effortless hill climbs.
  • 720Wh Samsung Battery: With a robust 48V 17.5Ah battery capacity, enjoy up to 60 miles on a single charge. Pedal assist extends the range even further.
  • 26x4" Fat Tires: These wide tires provide exceptional grip and stability across various terrains.
  • Hydraulic Brakes: Responsive braking performance for safety and control.
  • Comfortable Design: The Cruiser combines adaptability with comfort, making it ideal for long rides.
  • Integrated Brake Light: Enhances safety during nighttime rides.
  • Shimano 7-Speed Gear Shift System: Optimize battery usage with effective gear shifting.
  • Throttle Control: Quick reaction for city streets and safety.

Explore, Ride, Repeat: Whether you’re commuting or exploring off-road trails, the HIMIWAY Cruiser D3 is your go-to electric fat bike.





View full details

Size Chart

Geometry
Recommended Height: 5'3" ~ 6'5"
  • A – total length
    75
  • B – handlebar height
    46.5
  • C – handlebar length
    28
  • D – wheelbase
    45
  • E – wheel diameter
    28.7
  • F – minimum seat height
    22
  • G – maximum seat height
    29
  • H – chain stay length
    18.7
  • K – effective top tube length
    23
  • L – head tube length
    6.1
  • N – standover height
    ST 27.9/ SO 30.3



Overview

840 Wh
Samsung/LG Battery

60 Miles
Per Charge (maximum) *1

750 W
Geared Hub Motor

20+ Mph
Top Speed *2

350 lbs
Payload Capacity

26x4 "
Kenda Fat Tire

7-Speed
Shimano Derailleur

Mechanical Brakes
180MM

1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
2 - Reach speeds of up to 20 mph, No pedaling required.

Specifications

Frame
6061 Aluminum frame

Headset
Neco H148 28.6×44*44×30mm

Fork
Guide-26”-TNL-95 95mm travel

Shock
Alloy front suspension fork with lockout and adjustment

Front wheel
MB015-92 13G*135*9mm MD242 26*87mm 12G*36

Rear wheel
Rim: 3G*135*9mm MD242 26*87mm | Spoke: 12G*36 | Hub: 48v 750w Himiway hub motor

Tires
Kenda 26*4.0

Battery
Samsung/LG 48V 17.5Ah

Motor
750W brushless gear motor

Display
LCD display with USB charging

Throttle
Half twist throttle

Sensors
Cadence sensor丨speed sensor丨brake sensor

Crankset
Crank arm: 4IXF-212FA 170mm | Chain ring: 46T

Freewheel
Shimano MF-TZ500-7 14-28T

Chain
KMC Z8.3 EPT 120L

Groupset
Shimano altus M310 7 speed

Front brake
Tektro ARIES MD-M300 mechanical disc brakes

Rear brake
Tektro ARIES MD-M300 mechanical disc brakes

Rotors
Tektro TR180-24 F:180mm R:180mm

Components

Stem
YC-C410 28.6*80*31.8mm

Handlebar
YC-B087 22.2*31.8*700mm

Seatpost
H202211DJ ISO-M 30.4*350mm

Saddle
TTZ032X

Pedal
Aluminum pedal

Lights
48V LED light

Kickstand
Heavy-duty aluminum kickstand

Other

Range
35~60 miles

Controller
48V/22A

Charger
US standard 2.0 A smart charger

Rider height
5′3″ ~ 6′5″

Rider height
72lb.(with battery)

Max. system weight
350 lb.
