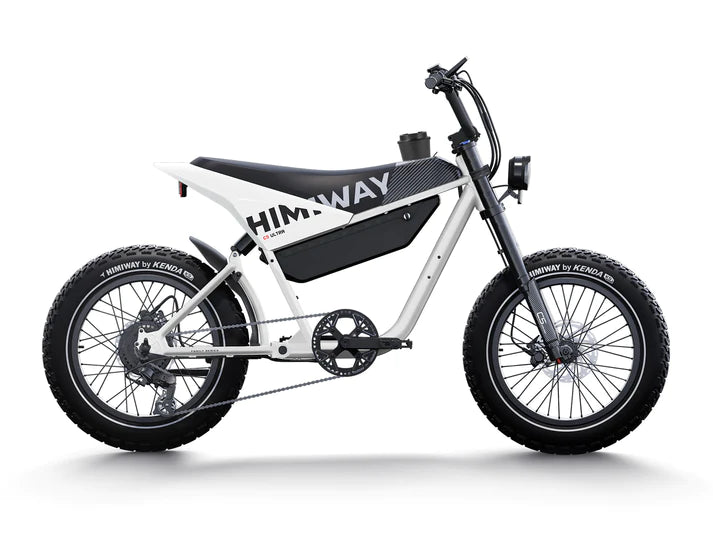

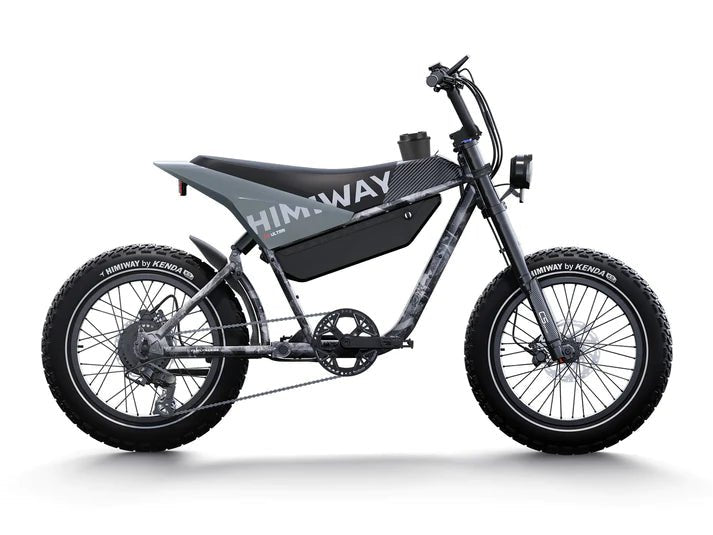

Himiway C5

• A – total length
  70.8
• B – handlebar height
  48.8
• C – handlebar length
  29.1
• D – wheelbase
  47
• E – wheel diameter
  23.3
• F – minimum seat height
  33
• G – maximum seat height
  33
• H – chain stay length
  22.5
• I – frame stack
  31.9
• K – effective top tube length
  29.4
• L – head tube length
  6.7
• N – standover height
  31.8

20+ Mph
Top Speed *1

80 Miles
Per Charge (maximum) *2

750 W
Geared Hub Motor

Hydraulic
Brakes

Torque
Sensor

960 Wh
Samsung/LG Battery

7-Speed
Shimano Derailleur

330 lbs
Payload Capacity

1 - The c5 can be unlocked for speed, and when it's unlocked, it's about 28mph.
2 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.

Frame
6061 Aluminum frame

Headset
Neco H114 28.6*44*30

Fork
KKE R150S coil spring fork compression | Rebound adjustable 140mm travel 15*150mm axle

Shock
EXA A5-RE 180*47mm

Front wheel
"Rim: MD-147 20*4.0""*36H*12G A/V | Spoke: 12G 171mm/173mm | Hub: MB016F-92-T 15*135MM 12G*36H"

Rear wheel
Rim: MD-147 20*4.0""*36H*12G A/V | Spoke: 12G 126mm/127mm Hub: 48v 750w | Himiway Hub Motor

Tires
Kenda X Himiway 20*4.0

Battery
Samsung/LG 48V 20Ah

Motor
750W brushless gear motor

Display
Himiway C2 LCD Display

Throttle
Thumb throttle

Sensors
Torque sensor丨speed sensor丨brake sensor

Crankset
44T BCD104 6061-T6 145mm

Freewheel
Shimano MF-TZ500-7 14-28T

Chain
KMC Z8.3 EPT 130L

Groupset
Shimano altus M310 7 speed

Front brake
Tektro HD-E3520 hydraulic brake

Front brake
Tektro HD-E3520 hydraulic brake

Rotors
Tektro TR180-52 F:180mm R:180mm

Stem
3D forged alloy Ext:40mm

Handlebar
YC-B086 22.2*31.8*720mm

Seatpost
/

Saddle
Extended seat

Pedal
Aluminum pedal

Lights
48V LED light

Kickstand
Heavy-duty aluminum kickstand

Range
60-80 miles

Controller
48V/22A

Charger
US standard 3.0 A smart charger

Rider height
5'4"~6'3"

Weight
88 lb.

Max. system weight
330 lb.
