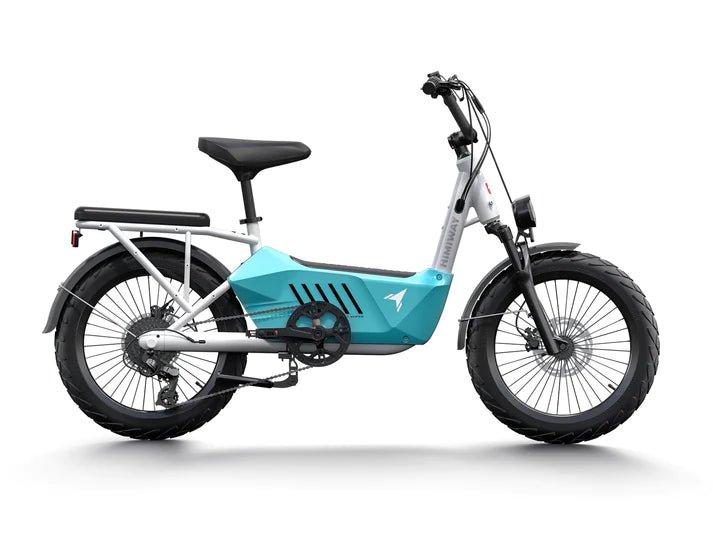

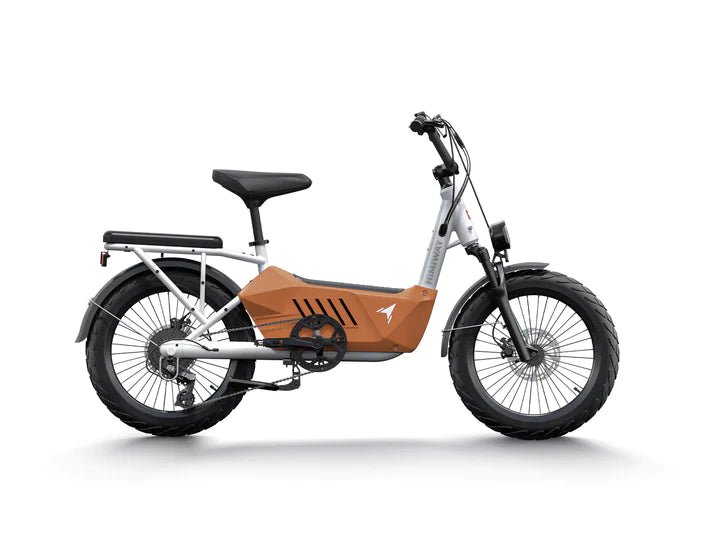

Himiway C3 Cargo

• A – total length
  70.4
• B – handlebar height
  42
• C – handlebar length
  28.4
• D – wheelbase
  47.2
• E – wheel diameter
  23
• F – minimum seat height
  34
• G – maximum seat height
  40
• H – chain stay length
  23
• I – frame stack
  31.9
• K – effective top tube length
  17
• L – head tube length
  8.1
• N – standover height
  19

80 Miles
Per Charge (maximum) *1

750 W
Geared Hub Motor

960 Wh
Samsung/LG Battery

7-Speed
Shimano Derailleur

440 lb.
Payload Capacity

Hydraulic
Brakes

20x3 "
CST Tire

20+ Mph
Top Speed *2

1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
2 - Reach speeds of up to 20 mph, No pedaling required.

Frame
6061 Aluminum frame

Headset
Neco H114 28.6*44*30

Fork
TRAMA coil suspension 60mm travel 135mm thru axle

Front wheel
Rim: J57SA 20*12G*36H A/V | Spoke: 12G 172mm | Hub: MB016F-92-T 15*135mm 12G*36H

Rear wheel
Rim: J57SA 20*12G*36H A/V | Spoke: 12G 127mm/128mm | Hub: 48v 750w Himiway Hub Motor

Tires
CST 20"x3"

Battery
Samsung/LG 48V 20Ah

Motor
750W brushless gear motor

Display
Himiway C2 LCD Display

Throttle
Thumb throttle

Sensors
Torque sensor丨speed sensor丨brake sensor

Crankset
44T BCD104 6061-T6 145mm

Freewheel
Shimano MF-TZ500-7 14-28T

Chain
KMC Z8.3 EPT 120L

Groupset
Shimano altus M310 7 speed

Front wheel
"Rim: MD-147 20*4.0""*36H*12G A/V | Spoke: 12G 171mm/173mm | Hub: MB016F-92-T 15*135MM 12G*36H"

Rear wheel
Rim: MD-147 20*4.0""*36H*12G A/V | Spoke: 12G 126mm/127mm Hub: 48v 750w | Himiway Hub Motor

Rotors
F:180mm R:180mm

Stem
3D forged alloy Ext:40mm

Handlebar
YC-B086 22.2*31.8*720mm

Saddle
Himwiay saddle

Pedal
Aluminum pedal

Kickstand
Heavy-duty aluminum kickstand

Range
60-80 miles

Controller
48V/22A

Charger
US standard 3.0 A smart charger

Rider height
5'2" ~ 6'3"

Weight
80 lb. (with battery)

Max. system weight
440 lb. (with battery)
