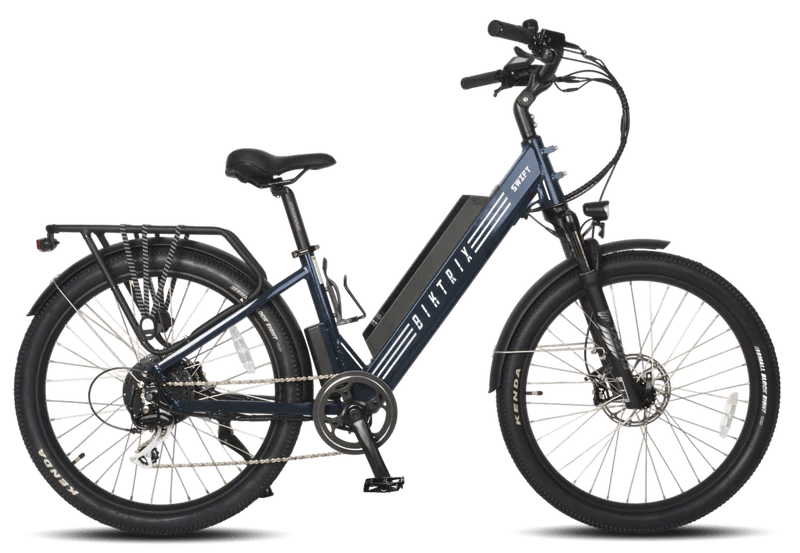

Biktrix Swift Step-Thru 3

Biktrix Swift Step-Thru 3

$1,999.00 USD
$2,199.00 USD $1,999.00 USD
Sale Sold out
Shipping calculated at checkout.



Commute Like Never Before!

The Biktrix Swift Step-Thru 3 commuter eBike is the ultimate combination of speed, comfort and control. The zippy 500W hub-motor makes the swift simple and reliable, requiring little maintenance and providing easy riding. The 48V20Ah Battery can give you up to 100km of range on a single charge!

Bells & Whistles? You Bet.

  • Front Suspension Fork
  • Quad Piston Disc Brakes
  • 500W Rear Hub Motor
  • Removeable 48V Battery
  • Integrated Headlight
  • Removeable Battery
  • LCD Dispaly & Thumb Throttle
  • 8-Speed Shimano Drivetrain
  • Rear Rack And Fenders
  • 2.1" Kenda Tires
View full details

Distance Range

PAS 1
Pedal-Assist Lv.1
93mi
PAS 2
Pedal-Assist Lv.2
68mi
PAS 3
Pedal-Assist Lv.3
57mi
PAS 4
Pedal-Assist Lv.4
47mi
PAS 5
Pedal-Assist Lv.5
40mi
THRL
Throttle Only
32mi
**Please note that information regarding the expected range on a single charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame
6061 Aluminum

Front Hub
100mm 36h

Seat Post
27.2mm*

Fork
Trama Suspension Fork W/60mm Travel, Preload Adjustment

Front Axle
5mm Qr

Seat Post Clamp
Qr

Headset
Threadless 1-1/2 1-1/8 Tapered

Rear Hub
Motor

Motor
500w Rear Hub Motor

Shifter Rear
8 Speed Shimano Acera Trigger Shifter

Rear Axle
Bolt-On

Battery Sizes
48v20ah 960wh, 48v25ah 1200wh

Rear Derailleur
8 Speed Shimano Acera

Rims
Black 29" 36h (L | 18")/Black 26" 36h (S | 15")

Display
500s

Cassette
12-32t 8-Speed Freewheel

Tire Sizes
Kenda 29x2.1" (L | 18")/Kenda 26x2.1" (S | 15")

Lights
Integrated Headlight, Taillight

Chain
Kmc Z8

Handlebar
690mm Wide, 40mm Rise W/31.8mm Clamp

Assist Type
Torque

Crank Set
44t Chainring W/165mm Arms

Stem
Adjustable Stem, 31.8mm Clamp

Assist Levels
0-5 (0-3, 0-9)

Bottom Bracket
Integrated Torque Sensor W/ Square Spindle

Grips
Ergonomic Comfort Grips

Throttle
Thumb Throttle

Brakes
Iiipro E4 Quad-Piston Hydraulic Brakes W/180mm Rotors

Saddle
Velo Gel Padded

Other
Kickstand, Bell, Rack And Fenders

Brake Levers
Adjustable W/ Integrated Brake Cutoffs

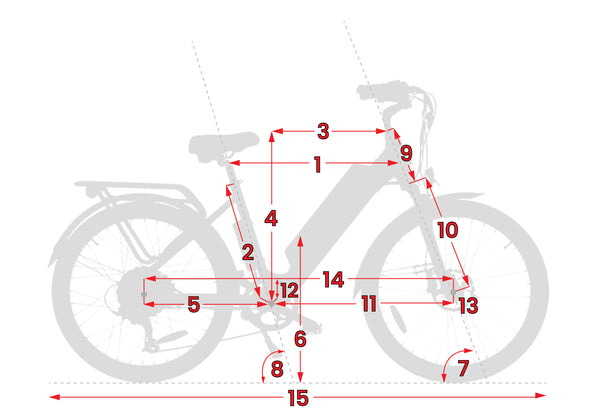

Size & Fittings

L - 18"

1
Effective Top Tube Length
 570mm 22.4in
2
Seat Tube Length (Classic Bike Size)
 470mm 18.5in
3
Reach
 460mm 18.1in
4
Stack
 600mm 23.6in
5
Chainstay Length
 500mm 19.7in
6
Standover Height
 450mm 17.7in
7
Head Angle
 70° -
8
Seat Angle
 73° -
9
Head Tube Length
 180 mm 7.1 in
10
Fork Length
 480mm 18.9in
11
Front Center
 680mm 26.8in
12
BB (Bottom Bracket) Drop
 30mm 1.2in
13
Fork Offset
 30mm 1.2in
14
Wheelbase
 1150mm 45.3in
15
Total Length
 1860mm 73.2in
16
Max Seat Height
 980mm 38.6in
17
Min Seat Height
 820mm 32.3in
18
Handlebar Height
 1160mm 45.7in
19
Weight (Without Battery)
 27kg 59.5lb



S - 15"

1
Effective Top Tube Length
 570mm 22.4in
2
Seat Tube Length (Classic Bike Size)
 420mm 16.5in
3
Reach
 440mm 17.3in
4
Stack
 540mm 21.3in
5
Chainstay Length
 480mm 18.9in
6
Standover Height
 420mm 16.5in
7
Head Angle
 70° -
8
Seat Angle
 73° -
9
Head Tube Length
 180 mm 7.1 in
10
Fork Length
 460mm 18.1in
11
Front Center
 650mm 25.6in
12
BB (Bottom Bracket) Drop
 30mm 1.2in
13
Fork Offset
 30mm 1.2in
14
Wheelbase
 1120mm 44.1in
15
Total Length
 1820mm 71.7in
16
Max Seat Height
 940mm 37in
17
Min Seat Height
 790mm 31.1in
18
Handlebar Height
 1100mm 43.3in
19
Weight (Without Battery)
 27kg 59.5lb
