Boost

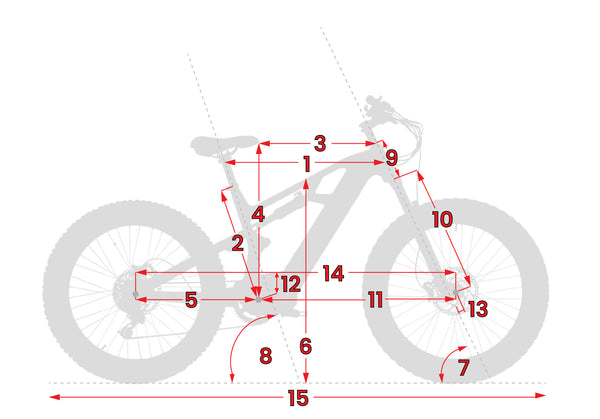

1 |
Effective Top Tube Length |
560mm | 22in |
2 |
Seat Tube Length (Classic Bike Size) |
480mm | 18.9in |
3 |
Reach |
480mm | 18.9in |
4 |
Stack |
600mm | 23.6in |
5 |
Chainstay Length |
470mm | 18.5in |
6 |
Standover Height |
700mm | 27.6in |
7 |
Head Angle |
64° | - |
8 |
Seat Angle |
70° | - |
9 |
Head Tube Length |
120 mm | 4.7 in |
10 |
Fork Length |
570mm | 22.4in |
11 |
Front Center |
790mm | 31.1in |
12 |
BB (Bottom Bracket) Drop |
40mm | 1.6in |
13 |
Fork Offset |
40mm | 1.6in |
14 |
Wheelbase |
1270mm | 50in |
15 |
Total Length |
2000mm | 78.7in |
16 |
Max Seat Height |
1065mm | 41.9in |
17 |
Min Seat Height |
920mm | 36.2in |
18 |
Handlebar Height |
1160mm | 45.7in |
19 |
Weight (Without Battery) |
25.2kg | 55.6lb |
