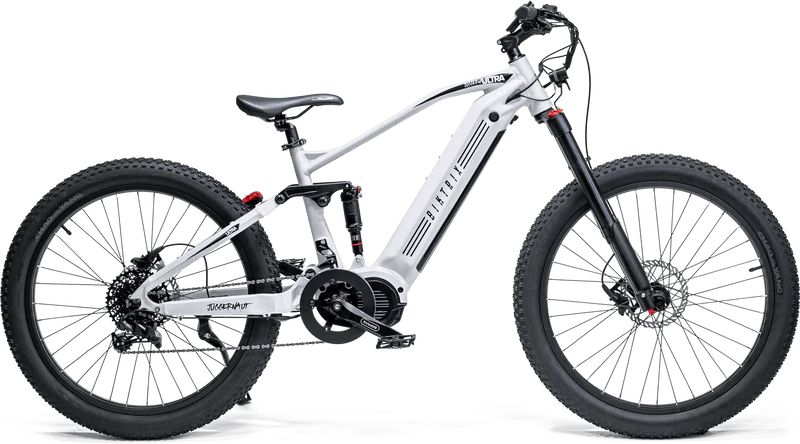

Biktrix Juggernaut Ultra FS Pro 3 MTB

Biktrix Juggernaut Ultra FS Pro 3 MTB

Regular price $4,149.00 USD
Regular price $4,699.00 USD Sale price $4,149.00 USD
Sale Sold out
Shipping calculated at checkout.



Biktrix Juggernaut Ultra FS Pro 3 MTB: Conquer Any Trail with Confidence!

Get ready to elevate your off-road adventures to new heights with the FS Pro 3 MTB—an eBike engineered for epic performance and unmatched maneuverability. Designed with a full suspension frame, powerful Mid-drive Ultra motor, and a specially designed MTB+ wheelset, this eBike is your ticket to conquering any terrain with ease.

Key Features:

  • Full Suspension Frame: Experience a smooth and comfortable ride, even on rough terrain, thanks to the full suspension frame.
  • Mid-drive Ultra Motor: Conquer hills and obstacles effortlessly with the powerful 1000W Bafang Ultra M620 Mid-drive Motor.
  • 27.5x3 MTB+ Wheelset: Enjoy superior maneuverability and control on any trail, with the specially designed MTB+ wheelset.
  • Powerful Torque: With 160Nm of torque, tackle steep inclines with ease and confidence.
  • Convenient Throttle: Enjoy full power when you need it, with the on-demand throttle providing an extra boost.
  • Smooth Pedal Assist: Experience seamless pedal assist with the Cadence+Torque sensor, making every pedal stroke smooth and powerful.
  • Extended Battery Life: Ride for longer and explore further with the included 52V 17Ah Battery (and charger), with the option to install a second battery for extended riding time.

Benefits:

  • Unmatched Maneuverability: Navigate rough terrain with precision and confidence, thanks to the specially designed MTB+ wheelset.
  • Epic Performance: Conquer any trail with ease, powered by the robust Mid-drive Ultra motor and impressive torque output.
  • Comfortable Riding Experience: Enjoy a smooth and comfortable ride, even on the most challenging trails, with a full suspension frame.
  • Extended Riding Time: Ride for longer and explore further with the option to install a second battery.

Don’t let anything hold you back from your next off-road adventure.

Price: $4,149.00 (Sale ends soon)

Shipping: Leaves within 6-7 business days

Full Suspension. Full Performance.

Top-of-the-line components and the most powerful torque-sensing mid-drive motor in the industry makes the Juggernaut Ultra FS Pro 3 the best-built full-suspension electric bike on the market. Now available with an optional range extender battery to add on additional range! New to this version is a rear triangle wide enough to support 4.8" tires!

Maximum Traction

With a quality FS system, both wheels stay connected to the ground. That means better handling and higher speeds on tough terrain. This bike is built for the trail.

Ride Anywhere. Any Time.

The 27.5x3 MTB+ Tires provide the best of both worlds with a large diameter and narrow contact patch allowing you to overcome obstacles with speed and agility.



ULTRA POWER. GREATER FEATURES

  • Bafang Ultra M620 Mid-Drive System
  • RockShox Rear Suspension
  • Optional Range Extender
  • Front Suspension
  • Drivetrain
  • Hydraulic Disk Brakes
  • LCD Display
  • Thumb Throttle & Control Pad
  • Integrated Front Light
View full details

Collapsible content

Distance Range

PAS 1
Pedal-Assist Lv.1
52mi
PAS 2
Pedal-Assist Lv.2
43mi
PAS 3
Pedal-Assist Lv.3
38mi
PAS 4
Pedal-Assist Lv.4
35mi
PAS 5
Pedal-Assist Lv.5
31mi
THRL
Throttle Only
22mi
**Please note that information regarding the expected range on a single charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame
6061 Aluminum

Front Hub
150mm Thru 36h

Seat Post
31.6mm Aluminum

Fork
Biktrix Inverted Air Fork W/100mm Travel, Lockout And Preload

Front Axle
15mm Thru Axle

Seat Post Clamp
Qr

Headset
Threadless 1-1/8 1-1/2 Tapered

Rear Hub
197mm Thru 36h

Motor
Bafang Ultra M620

Shifter Rear
Sram Nx 11 Speed Trigger Shifter

Rear Axle
12mm Thru Axle

Battery Sizes
Total Capacity Of 52v 34.5ah 1794wh:
52v 17.5ah 910wh (Internal Battery) +
Up To 52v 17ah 884wh (External Range Extender Battery)

Rear Derailleur
Sram Nx 11 Speed

Rims
Black 26" With Round Cutouts, Solid Black 27.5"

Display
Dpc-18

Cassette
Sram 11-42t

Tire Sizes
27.5x3" Chaoyang Mtb

Lights
Integrated Headlight

Chain
Kmc E11s - 130 Links

Handlebar
700mm Wide W/25mm Rise, 31.8mm Clamp

Assist Type
Torque + Cadence

Crank Set
44t Chainring W/ 170mm Arms

Stem
90mm Solid

Assist Levels
1-5

Bottom Bracket
Bafang Isis

Grips
Velo Bolt On Mtb Grips

Throttle
Thumb Throttle

Brakes
Biktrix Dual Piston Hydraulic W/180mm Rotors

Saddle
Velo Plush

Other
2-Bolt Kickstand

Brake Levers
Biktrix Adjustable W/ Integrated Brake Cutoff

Rear Suspension
Rockshox Monarch Rl W/ 51mm Travel, 190mm Eye-To-Eye

Size & Fittings



M - 17"

1
Effective Top Tube Length
580mm 22.8in
2
Seat Tube Length (Classic Bike Size)
430mm 16.9in
3
Reach
440mm 17.3in
4
Stack
540mm 21.3in
5
Chainstay Length
510mm 20.1in
6
Standover Height
730mm 28.7in
7
Head Angle
63° -
8
Seat Angle
72° -
9
Head Tube Length
160 mm 6.3 in
10
Fork Length
540mm 21.3in
11
Front Center
810mm 31.9in
12
BB (Bottom Bracket) Drop
40mm 1.6in
13
Fork Offset
40mm 1.6in
14
Wheelbase
1320mm 52in
15
Total Length
2030mm 79.9in
16
Max Seat Height
1040mm 40.9in
17
Min Seat Height
840mm 33.1in
18
Handlebar Height
1020mm 40.2in
19
Weight (Without Battery)
32.6kg 71.9lb



L - 19"

1
Effective Top Tube Length
600mm 23.6in
2
Seat Tube Length (Classic Bike Size)
480mm 18.9in
3
Reach
460mm 18.1in
4
Stack
590mm 23.2in
5
Chainstay Length
510mm 20.1in
6
Standover Height
740mm 29.1in
7
Head Angle
63° -
8
Seat Angle
72° -
9
Head Tube Length
160 mm 6.3 in
10
Fork Length
540mm 21.3in
11
Front Center
810mm 31.9in
12
BB (Bottom Bracket) Drop
40mm 1.6in
13
Fork Offset
40mm 1.6in
14
Wheelbase
1330mm 52.4in
15
Total Length
2040mm 80.3in
16
Max Seat Height
1080mm 42.5in
17
Min Seat Height
880mm 34.6in
18
Handlebar Height
1060mm 41.7in
19
Weight (Without Battery)
32.6kg 71.9lb



XL - 21"

1
Effective Top Tube Length
600mm 23.6in
2
Seat Tube Length (Classic Bike Size)
520mm 20.5in
3
Reach
460mm 18.1in
4
Stack
590mm 23.2in
5
Chainstay Length
520mm 20.5in
6
Standover Height
770mm 30.3in
7
Head Angle
63° -
8
Seat Angle
72° -
9
Head Tube Length
160 mm 6.3 in
10
Fork Length
540mm 21.3in
11
Front Center
810mm 31.9in
12
BB (Bottom Bracket) Drop
40mm 1.6in
13
Fork Offset
40mm 1.6in
14
Wheelbase
1340mm 52.8in
15
Total Length
2060mm 81.1in
16
Max Seat Height
1120mm 44.1in
17
Min Seat Height
940mm 37in
18
Handlebar Height
1060mm 41.7in
19
Weight (Without Battery)
33.6kg 74.1lb
