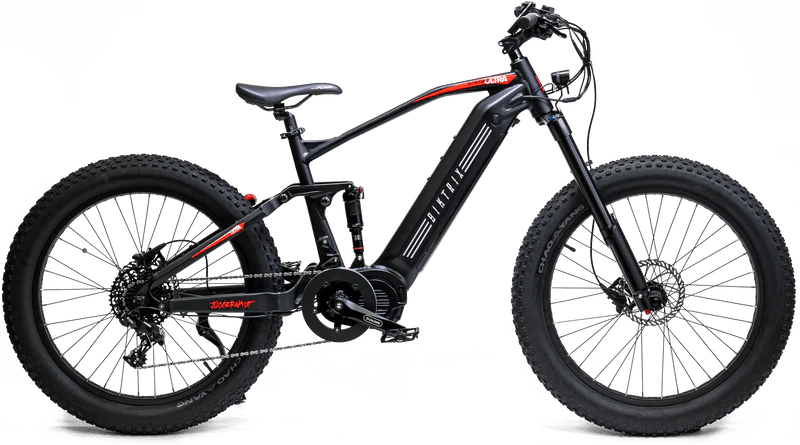

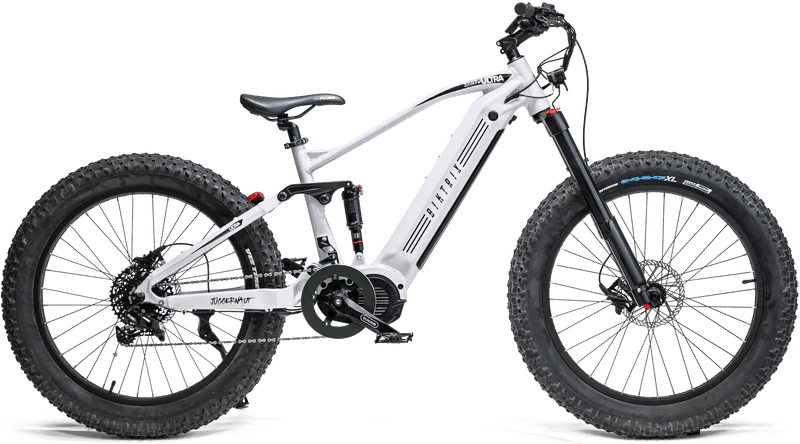

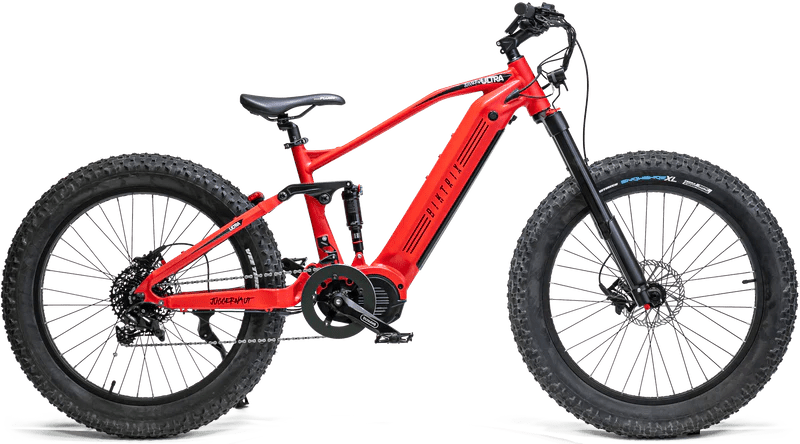

Biktrix Juggernaut FS Pro 3 Fat

Biktrix Juggernaut FS Pro 3 Fat

$3,999.00 USD
$4,699.00 USD $3,999.00 USD
Sale Sold out
Shipping calculated at checkout.

Full Suspension. Full Performance.

Top-of-the-line components and the most powerful torque-sensing mid-drive motor in the industry makes the Juggernaut Ultra FS Pro 3 the best-built full-suspension electric bike on the market. Now available with an optional range extender battery to add on additional range! New to this version is a rear triangle wide enough to support 4.8" tires!

Maximum Traction

With a quality FS system, both wheels stay connected with the ground. That means better handling and higher speeds on tough terrain. This bike is built for the trail.

Soar Through All Terrian.

The 26x4 or optional 26x4.8” Fat Tires have a large contact patch to provide improved traction on challenging loose terrain such as loose dirt, sand, mud, snow and rocks. The extra width also increases the bike’s stability - useful for riding technical terrain or tackling obstacles at low speeds.


ULTRA POWER. GREATER FEATURES

  • Bafang Ultra M620 Mid-Drive System
  • Rockshox Rear Suspension
  • Optional Range Extender
  • Front Suspension
  • Drivetrain
  • Hydraulic Disk Brakes
  • LCD Display
  • Thumb Throttle & Control Pad
  • Integrated Front Light
View full details

Distance Range

PAS 1
Pedal-Assist Lv.1
52mi
PAS 2
Pedal-Assist Lv.2
43mi
PAS 3
Pedal-Assist Lv.3
38mi
PAS 4
Pedal-Assist Lv.4
35mi
PAS 5
Pedal-Assist Lv.5
31mi
THRL
Throttle Only
22mi
**Please note that information regarding the expected range on a single charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame
6061 Aluminum

Front Hub
150mm Thru 36h

Seat Post
31.6mm Aluminum

Fork
Biktrix Inverted Air Fork W/100mm Travel, Lockout And Preload

Front Axle
15mm Thru Axle

Seat Post Clamp
Qr

Headset
Threadless 1-1/8 1-1/2 Tapered

Rear Hub
197mm Thru 36h

Motor
Bafang Ultra M620

Shifter Rear
Sram Nx 11 Speed Trigger Shifter

Rear Axle
12mm Thru Axle

Battery Sizes
Total Capacity Of 52v 34.5ah 1794wh:
52v 17.5ah 910wh (Internal Battery) +
Up To 52v 17ah 884wh (External Range Extender Battery)

Rear Derailleur
Sram Nx 11 Speed

Rims
Black 26" With Round Cutouts, Solid Black 27.5"

Display
Dpc-18

Cassette
Sram 11-42t

Tire Sizes
26x4" Chaoyang, 26x4.8" Vee Snow Shoe Xl

Lights
Integrated Headlight

Chain
Kmc E11s - 130 Links

Handlebar
700mm Wide W/25mm Rise, 31.8mm Clamp

Assist Type
Torque + Cadence

Crank Set
44t Chainring W/ 170mm Arms

Stem
90mm Solid

Assist Levels
1-5

Bottom Bracket
Bafang Isis

Grips
Velo Bolt On Mtb Grips

Throttle
Thumb Throttle

Brakes
Biktrix Dual Piston Hydraulic W/180mm Rotors

Saddle
Velo Plush

Other
2-Bolt Kickstand

Brake Levers
Biktrix Adjustable W/ Integrated Brake Cutoff

Rear Suspension
Rockshox Monarch Rl W/ 51mm Travel, 190mm Eye-To-Eye

Size & Fittings



M - 17"

1
Effective Top Tube Length
 580mm 22.8in
2
Seat Tube Length (Classic Bike Size)
 430mm 16.9in
3
Reach
 440mm 17.3in
4
Stack
 540mm 21.3in
5
Chainstay Length
 510mm 20.1in
6
Standover Height
 730mm 28.7in
7
Head Angle
 63° -
8
Seat Angle
 72° -
9
Head Tube Length
 160 mm 6.3 in
10
Fork Length
 540mm 21.3in
11
Front Center
 810mm 31.9in
12
BB (Bottom Bracket) Drop
 40mm 1.6in
13
Fork Offset
 40mm 1.6in
14
Wheelbase
 1320mm 52in
15
Total Length
 2030mm 79.9in
16
Max Seat Height
 1040mm 40.9in
17
Min Seat Height
 840mm 33.1in
18
Handlebar Height
 1020mm 40.2in
19
Weight (Without Battery)
 32.6kg 71.9lb



L - 19"

1
Effective Top Tube Length
 600mm 23.6in
2
Seat Tube Length (Classic Bike Size)
 480mm 18.9in
3
Reach
 460mm 18.1in
4
Stack
 590mm 23.2in
5
Chainstay Length
 510mm 20.1in
6
Standover Height
 740mm 29.1in
7
Head Angle
 63° -
8
Seat Angle
 72° -
9
Head Tube Length
 160 mm 6.3 in
10
Fork Length
 540mm 21.3in
11
Front Center
 810mm 31.9in
12
BB (Bottom Bracket) Drop
 40mm 1.6in
13
Fork Offset
 40mm 1.6in
14
Wheelbase
 1330mm 52.4in
15
Total Length
 2040mm 80.3in
16
Max Seat Height
 1080mm 42.5in
17
Min Seat Height
 880mm 34.6in
18
Handlebar Height
 1060mm 41.7in
19
Weight (Without Battery)
 32.6kg 71.9lb



XL - 21"

1
Effective Top Tube Length
 600mm 23.6in
2
Seat Tube Length (Classic Bike Size)
 520mm 20.5in
3
Reach
 460mm 18.1in
4
Stack
 590mm 23.2in
5
Chainstay Length
 520mm 20.5in
6
Standover Height
 770mm 30.3in
7
Head Angle
 63° -
8
Seat Angle
 72° -
9
Head Tube Length
 160 mm 6.3 in
10
Fork Length
 540mm 21.3in
11
Front Center
 810mm 31.9in
12
BB (Bottom Bracket) Drop
 40mm 1.6in
13
Fork Offset
 40mm 1.6in
14
Wheelbase
 1340mm 52.8in
15
Total Length
 2060mm 81.1in
16
Max Seat Height
 1120mm 44.1in
17
Min Seat Height
 940mm 37in
18
Handlebar Height
 1060mm 41.7in
19
Weight (Without Battery)
 33.6kg 74.1lb
