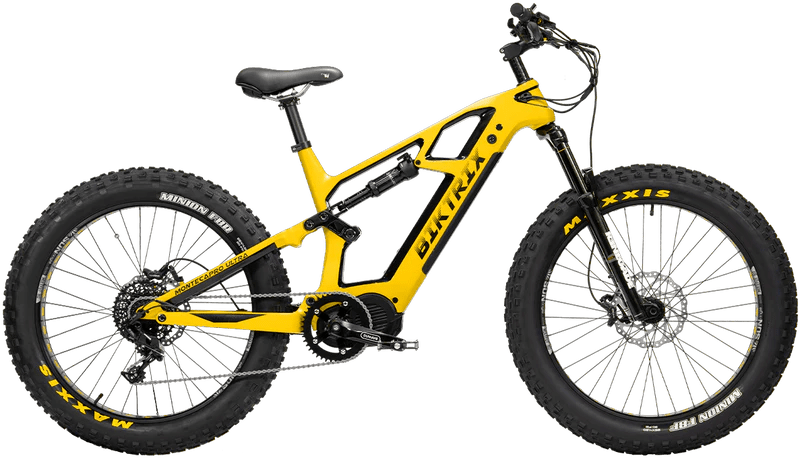

Biktrix Monte Capro Ultra 2 Fat Tire

Biktrix Monte Capro Ultra 2 Fat Tire

$4,749.00 USD
$5,999.00 USD $4,749.00 USD
Sale Sold out
Shipping calculated at checkout.

Premium Performance

The Monte Capro Ultra is our most ambitious full-suspension eBike yet. Featuring a premium carbon fibre frame and top-of-the-line components, this electric mountain bike walks-the-walk.

Ultra Powerful. Ultra Light.

The Monte is powered by the Bafang Ultra M620 mid-drive motor with 160nm of torque. Combine that with the super lightweight frame and you've got the best performance on the trails. With a choice of 4.8" fat tires or 3" MTB tires, the Monte Capro Ultra is ready to become your next adventure machine.

EVERYTHING YOU NEED

  • Carbon Fiber Frame
  • Rockshox Rear Suspension
  • Bafang M600 Motor
  • Suspension Fork
  • Quad Piston Hydraulic Brakes
  • SRAM NX11-Speed Drivetrain
  • 26" X 4.8" Fat Tires
  • Colour LCD Display
  • Thumb Throttle & Control Pad
View full details

Distance Range

PAS 1
Pedal-Assist Lv.1
48.4mi
PAS 2
Pedal-Assist Lv.2
40.3mi
PAS 3
Pedal-Assist Lv.3
35.2mi
PAS 4
Pedal-Assist Lv.4
32mi
PAS 5
Pedal-Assist Lv.5
29.1mi
THRL
Throttle Only
19.8mi
**Please note that information regarding the expected range on a single charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame
Carbon Fiber - 160mm Frame Travel

Front Hub
150mm 36h Thru

Seat Post
31.6mm Aluminum

Fork
Rst Renegade W/100mm Travel, Lockout&Rebound

Front Axle
15mm Thru Qr

Seat Post Clamp
Bolt-On

Headset
Threadless 1-1/2 1-1/8 Tapered

Rear Hub
197mm 36h Thru

Motor
Bafang Ultra M620

Shifter Rear
Sram Nx 11 Speed Trigger

Rear Axle
12mm Thru Axle

Battery Sizes
48v 17.5ah 840wh

Rear Derailleur
Sram Nx 11 Speed

Rims
26" 36h Black W/Square Cutouts 80mm Wide

Display
Dpc-18

Cassette
Sram 11-42t

Tire Sizes
26x4.8"

Chain
Kmc X11e

Handlebar
31.8mm Clamp, 750mm Wide, 50mm Rise

Assist Type
Torque + Cadence

Crank Set
170mm Crank Arms W/44t Chainring (No Chainguard)

Stem
80mm Aluminum

Assist Levels
1-5

Bottom Bracket
Bafang Isis

Grips
Bolt On Mtb Grips

Throttle
Thumb Throttle

Brakes
Tektro Dorado E725 Quad-Piston W/203mm Rotors

Saddle
Selleroyal Freeway

Other
Gear Shift Sensor

Brake Levers
Tektro Dorado W/ Adjustable Reach And Brake Cutoffs

Rear Suspension
Rockshox Deluxe + Rear Shock W/62.5mm Travel, 230mm Eye-To-Eye

Size & Fittings

Fat Tire

1
Effective Top Tube Length
 600mm 23.6in
2
Seat Tube Length (Classic Bike Size)
 500mm 19.7in
3
Reach
 490mm 19.3in
4
Stack
 570mm 22.4in
5
Chainstay Length
 500mm 19.7in
6
Standover Height
 730mm 28.7in
7
Head Angle
 64° -
8
Seat Angle
 70° -
9
Head Tube Length
 125 mm 4.9 in
10
Fork Length
 540mm 21.3in
11
Front Center
 800mm 31.5in
12
BB (Bottom Bracket) Drop
 50mm 2in
13
Fork Offset
 40mm 1.6in
14
Wheelbase
 1300mm 51.2in
15
Total Length
 2060mm 81.1in
16
Max Seat Height
 1140mm 44.9in
17
Min Seat Height
 905mm 35.6in
18
Handlebar Height
 1140mm 44.9in
19
Weight (Without Battery)
 25.6kg 56.4lb
