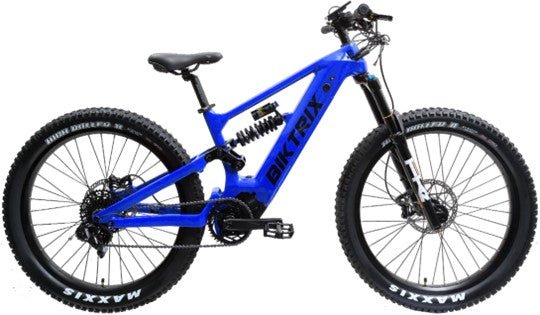

Biktrix Monte Capro Lite

Biktrix Monte Capro Lite

$4,149.00 USD
$4,799.00 USD $4,149.00 USD
Sale Sold out
Shipping calculated at checkout.

Performance For Less

The Monte Capro Lite keeps the high quality components and carbon fibre frame of its big brother, the Monte Capro Ultra, but at a lower starting price. Featuring the responsive Bafang M600 mid-drive motor, a 48V 17.5Ah battery, and 280lbs weight capacity, the Monte Capro Lite is an eBike thats hungry for adventure.

EVERYTHING YOU NEED

  • Carbon Fiber Frame
  • Rear Suspension
  • Bafang M600 Motor
  • Front Suspension Fork
  • Quad Piston Hydraulic Brakes
  • SRAM NX11-Speed Drivetrain
  • 27.5" X 3.0" MTB Tires
  • Colour LCD Display
  • Thumb Throttle & Control Pad
View full details

Distance Range

N/A

Technical Specifications

Frame
Carbon Fiber

Front Hub
110mm 36h Thru

Seat Post
Promax 31.6mm

Fork
Rst Titan Air Suspension 140mm Travel, Lockout And Rebound / Rockshox Recon Air Suspension W/ 150mm Travel, Lockout, Rebound Adjustment

Front Axle
15mm Thru Axle

Seat Post Clamp
Quick-Release

Headset
Threadless 1-1/2 1-1/8 Tapered

Rear Hub
148mm 36h Thru

Motor
Canbus Bafang M600 Mid-Drive

Shifter Rear
Sram Nx 11 Speed Trigger

Rear Axle
12mm Thru Axle

Battery Sizes
48v 17.5ah 840wh

Rear Derailleur
Sram Nx 11 Speed

Rims
27.5" Solid Black 36h

Display
Canbus Dpc-18

Cassette
11 Speed Sram 11-42t Cassette

Tire Sizes
27.5x3"

Lights
Integrated Headlight

Chain
Kmc E11s

Handlebar
720mm Wide, 31.8mm Clamp

Assist Type
Torque + Cadence

Crank Set
170mm Arms W/ 40t Chainring

Stem
Promax 80mm

Assist Levels
1-5 (1-3, 1-9)

Bottom Bracket
Bafang Isis

Grips
Bolt On Mtb Grips

Throttle
Thumb Throttle

Brakes
Tektro E-725 Quad Piston Hydraulic W/203mm Rotors

Saddle
Sellaroyale Seta-S1

Other
Gear Shift Sensor

Brake Levers
Tektro Hydraulic With Adjustable Reach And Motor Cutoff

Rear Suspension
Kke Ba-27rc Coil Spring Rear Suspension W/55mm Travel, 210mm Eye-To-Eye

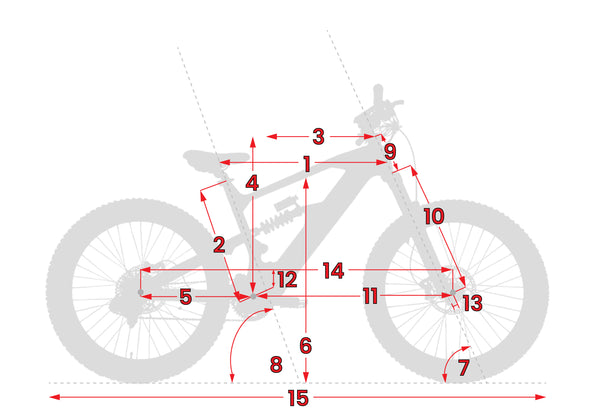

Size & Fittings

S - 15"

1
Effective Top Tube Length
 520mm 20.5in
2
Seat Tube Length (Classic Bike Size)
 410mm 16.1in
3
Reach
 480mm 18.9in
4
Stack
 580mm 22.8in
5
Chainstay Length
 460mm 18.1in
6
Standover Height
 730mm 28.7in
7
Head Angle
 63° -
8
Seat Angle
 70° -
9
Head Tube Length
 110 mm 4.3 in
10
Fork Length
 580mm 22.8in
11
Front Center
 740mm 29.1in
12
BB (Bottom Bracket) Drop
 20mm 0.8in
13
Fork Offset
 40mm 1.6in
14
Wheelbase
 1200mm 47.2in
15
Total Length
 1920mm 75.6in
16
Max Seat Height
 1015mm 40in
17
Min Seat Height
 840mm 33.1in
18
Handlebar Height
 1060mm 41.7in
19
Weight (Without Battery)
 23.8kg 52.5lb



M - 17"

1
Effective Top Tube Length
 550mm 21.7in
2
Seat Tube Length (Classic Bike Size)
 440mm 17.3in
3
Reach
 490mm 19.3in
4
Stack
 620mm 24.4in
5
Chainstay Length
 460mm 18.1in
6
Standover Height
 730mm 28.7in
7
Head Angle
 62° -
8
Seat Angle
 70° -
9
Head Tube Length
 120 mm 4.7 in
10
Fork Length
 580mm 22.8in
11
Front Center
 790mm 31.1in
12
BB (Bottom Bracket) Drop
 20mm 0.8in
13
Fork Offset
 40mm 1.6in
14
Wheelbase
 1240mm 48.8in
15
Total Length
 1960mm 77.2in
16
Max Seat Height
 1055mm 41.5in
17
Min Seat Height
 880mm 34.6in
18
Handlebar Height
 1070mm 42.1in
19
Weight (Without Battery)
 24kg 52.9lb



L - 19"

1
Effective Top Tube Length
 610mm 24in
2
Seat Tube Length (Classic Bike Size)
 480mm 18.9in
3
Reach
 510mm 20.1in
4
Stack
 620mm 24.4in
5
Chainstay Length
 460mm 18.1in
6
Standover Height
 770mm 30.3in
7
Head Angle
 63° -
8
Seat Angle
 70° -
9
Head Tube Length
 120 mm 4.7 in
10
Fork Length
 580mm 22.8in
11
Front Center
 790mm 31.1in
12
BB (Bottom Bracket) Drop
 20mm 0.8in
13
Fork Offset
 40mm 1.6in
14
Wheelbase
 1240mm 48.8in
15
Total Length
 1960mm 77.2in
16
Max Seat Height
 1065mm 41.9in
17
Min Seat Height
 890mm 35in
18
Handlebar Height
 1070mm 42.1in
19
Weight (Without Battery)
 24.2kg 53.4lb



XL - 21"

1
Effective Top Tube Length
 640mm 25.2in
2
Seat Tube Length (Classic Bike Size)
 520mm 20.5in
3
Reach
 550mm 21.7in
4
Stack
 620mm 24.4in
5
Chainstay Length
 460mm 18.1in
6
Standover Height
 770mm 30.3in
7
Head Angle
 63° -
8
Seat Angle
 70° -
9
Head Tube Length
 150 mm 5.9 in
10
Fork Length
 580mm 22.8in
11
Front Center
 850mm 33.5in
12
BB (Bottom Bracket) Drop
 20mm 0.8in
13
Fork Offset
 40mm 1.6in
14
Wheelbase
 1300mm 51.2in
15
Total Length
 2020mm 79.5in
16
Max Seat Height
 1125mm 44.3in
17
Min Seat Height
 950mm 37.4in
18
Handlebar Height
 1080mm 42.5in
19
Weight (Without Battery)
 24.4kg 53.8lb
