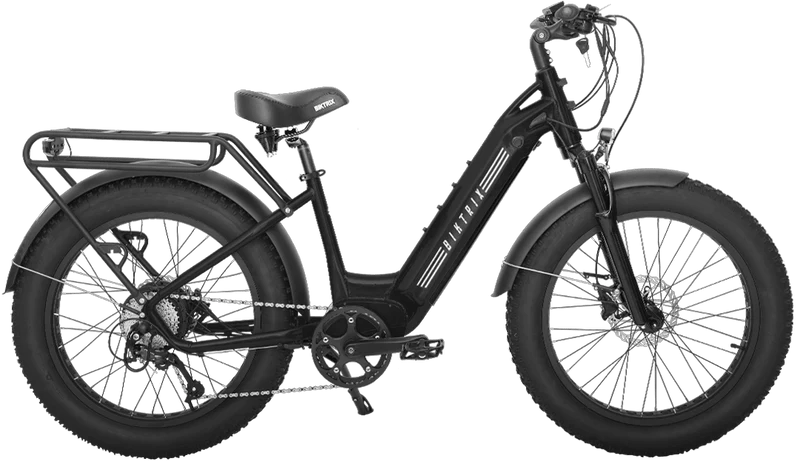

Biktrix Juggernaut Hub Duo Step-Thru

Biktrix Juggernaut Hub Duo Step-Thru

$2,499.00 USD
$2,599.00 USD $2,499.00 USD
Sale Sold out
Shipping calculated at checkout.

The Duo Series Ebikes For Everyone

The Juggernaut Duo Series is all about flexibility. Hub-drive or mid-drive, step-over or step-thru, single battery or dual battery, entry-level or high-end. No matter your needs, there's probably a Duo for you.

Simple. Capable. Affordable.

The Hub Duo is our most user-friendly & affordable eBike in the Juggernaut family. Thanks to the 750W hub-drive motor, you'll get an easy-going ride with plenty of power to boost you up those tough hills. Mix that with our 5-star customer service and you've got yourself a perfect entry-level eBike.

Bells & Whistles? You Bet.

  • 750W Hub Motor
  • Optional Range Extender
  • LCD Display
  • Suspension Fork
  • Drivetrain
  • Hydraulic Disc Brakes
  • Integrated Front Light
  • Rear Light
  • Rack & Fenders
    View full details

    Distance Range

    PAS 1
    Pedal-Assist Lv.1
    63mi
    PAS 2
    Pedal-Assist Lv.2
    46mi
    PAS 3
    Pedal-Assist Lv.3
    34mi
    PAS 4
    Pedal-Assist Lv.4
    30mi
    PAS 5
    Pedal-Assist Lv.5
    29mi
    THRL
    Throttle Only
    24mi
    **Please note that information regarding the expected range on a single charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

    Technical Specifications

    Frame
    6061 Aluminum

    Front Hub
    135mm 36h

    Seat Post
    28.6mm Aluminum

    Fork
    Rst Guide W/75mm Travel, Lockout And Preload

    Front Axle
    5mm Qr

    Seat Post Clamp
    Qr

    Headset
    Threadless 1-1/2 1-1/8 Tapered

    Rear Hub
    Motor

    Motor
    750w Rear Hub Motor

    Shifter Rear
    Shimano Alivio 9 Speed Trigger

    Rear Axle
    Bolt-On

    Battery Sizes
    Total Capacity Of 52v 36.5ah 1898wh:
    52v 17.5ah 910wh (Internal Battery) +
    Up To 52v 19ah 988wh (External Range Extender Battery)

    Rear Derailleur
    Shimano Alivio 9 Speed

    Rims
    Solid Black 36h

    Display
    500c (M | 17")/Dm07 Lcd Display (L | 19")

    Cassette
    9 Speed 11-36t Cassette (M | 17")/9 Speed 11-34t
    Cassette (L | 19")

    Tire Sizes
    24x4" (M | 17")/26x4, 27.5x3 (L | 19")

    Lights
    Integrated Headlight, Taillight

    Chain
    Kmc E9s

    Handlebar
    700mm Wide, 30mm Rise, 31.8mm Clamp

    Assist Type
    Torque + Cadence

    Crank Set
    44t Chainring With 170mm Arms

    Stem
    90mm Adjustable Stem (M | 17")/90mm Adjustable Gooseneck Stem (L | 19")

    Assist Levels
    0-5 (0-3, 0-9)

    Bottom Bracket
    Torque Sensor W/ Square Taper Spindle

    Grips
    Slide-On Comfort Grips

    Throttle
    Thumb Throttle

    Brakes
    Biktrix Dual Piston Hydraulic Brakes W/180mm Rotors (M | 17")/Xd-E300 Dual Piston Hydraulic W/180mm Rotors (L | 19")

    Saddle
    Biktrix Comfort Saddle

    Other
    Front And Rear Fenders, Rear Rack, Kickstand

    Brake Levers
    Adjustable With Integrated Brake Cutoffs

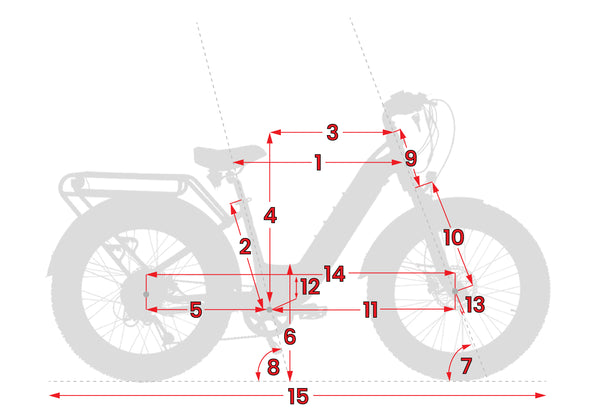

    Size & Fittings



    M - 17"

    1
    Effective Top Tube Length
    		 580mm 22.8in
    2
    Seat Tube Length (Classic Bike Size)
    		 420mm 16.5in
    3
    Reach
    		 420mm 16.5in
    4
    Stack
    		 460mm 18.1in
    5
    Chainstay Length
    		 490mm 19.3in
    6
    Standover Height
    		 450mm 17.7in
    7
    Head Angle
    		 66° -
    8
    Seat Angle
    		 72° -
    9
    Head Tube Length
    		 180 mm 7.1 in
    10
    Fork Length
    		 450mm 17.7in
    11
    Front Center
    		 730mm 28.7in
    12
    BB (Bottom Bracket) Drop
    		 60mm 2.4in
    13
    Fork Offset
    		 30mm 1.2in
    14
    Wheelbase
    		 1200mm 47.2in
    15
    Total Length
    		 1900mm 74.8in
    16
    Max Seat Height
    		 970mm 38.2in
    17
    Min Seat Height
    		 800mm 31.5in
    18
    Handlebar Height
    		 1120mm 44.1in
    19
    Weight (Without Battery)
    		 28kg 61.7lb



    L - 19"

    1
    Effective Top Tube Length
    		 580mm 22.8in
    2
    Seat Tube Length (Classic Bike Size)
    		 470mm 18.5in
    3
    Reach
    		 420mm 16.5in
    4
    Stack
    		 670mm 26.4in
    5
    Chainstay Length
    		 520mm 20.5in
    6
    Standover Height
    		 460mm 18.1in
    7
    Head Angle
    		 66° -
    8
    Seat Angle
    		 72° -
    9
    Head Tube Length
    		 180 mm 7.1 in
    10
    Fork Length
    		 530mm 20.9in
    11
    Front Center
    		 730mm 28.7in
    12
    BB (Bottom Bracket) Drop
    		 60mm 2.4in
    13
    Fork Offset
    		 30mm 1.2in
    14
    Wheelbase
    		 1220mm 48in
    15
    Total Length
    		 1960mm 77.2in
    16
    Max Seat Height
    		 1030mm 40.6in
    17
    Min Seat Height
    		 870mm 34.3in
    18
    Handlebar Height
    		 1150mm 45.3in
    19
    Weight (Without Battery)
    		 28.1kg 61.9lb
