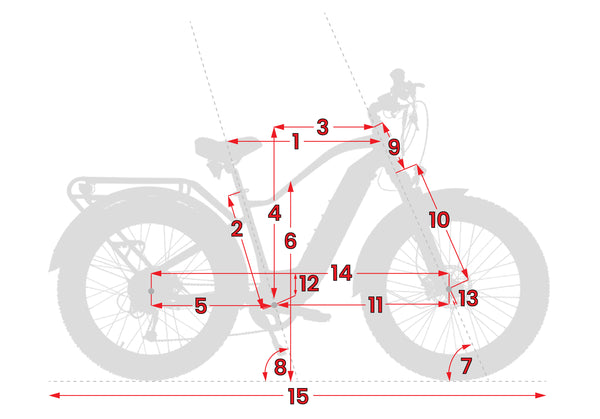

1 |
Effective Top Tube Length |
560mm | 22in |
2 |
Seat Tube Length (Classic Bike Size) |
470mm | 18.5in |
3 |
Reach |
460mm | 18.1in |
4 |
Stack |
600mm | 23.6in |
5 |
Chainstay Length |
510mm | 20.1in |
6 |
Standover Height |
710mm | 28in |
7 |
Head Angle |
70° | - |
8 |
Seat Angle |
75° | - |
9 |
Head Tube Length |
180 mm | 7.1 in |
10 |
Fork Length |
530mm | 20.9in |
11 |
Front Center |
720mm | 28.3in |
12 |
BB (Bottom Bracket) Drop |
60mm | 2.4in |
13 |
Fork Offset |
30mm | 1.2in |
14 |
Wheelbase |
1230mm | 48.4in |
15 |
Total Length |
1970mm | 77.6in |
16 |
Max Seat Height |
1020mm | 40.2in |
17 |
Min Seat Height |
860mm | 33.9in |
18 |
Handlebar Height |
1080mm | 42.5in |
19 |
Weight (Without Battery) |
28.9kg | 63.7lb |

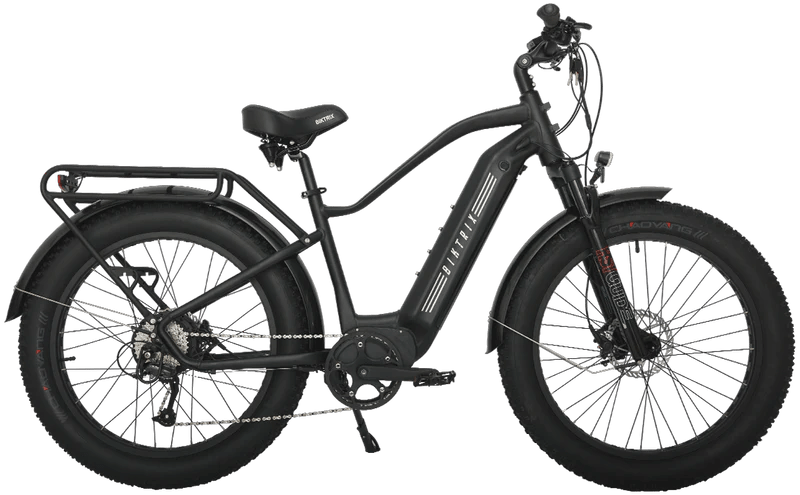

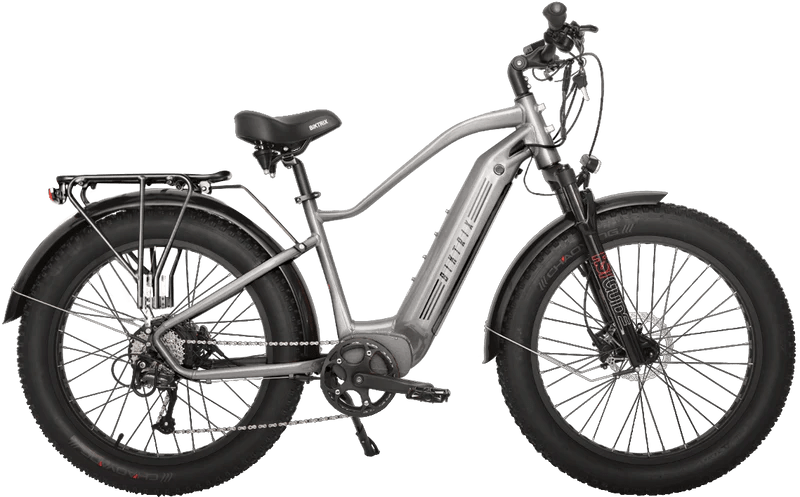

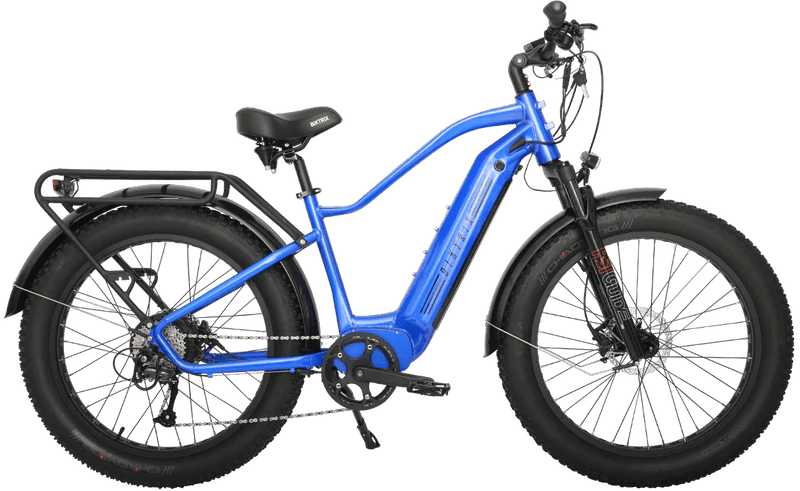

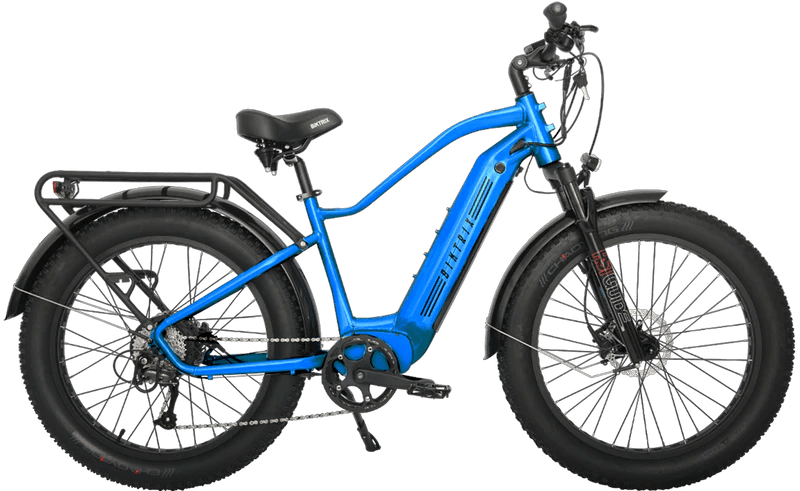

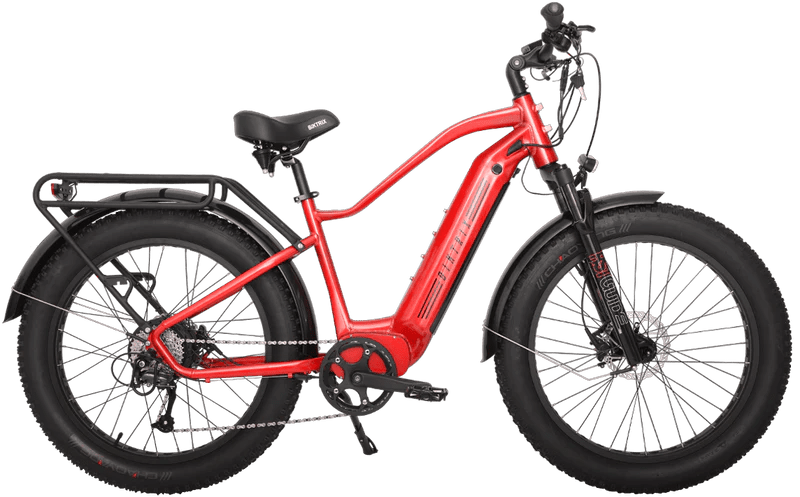

Biktrix Juggernaut Hub Duo Step-Over
Biktrix Juggernaut Hub Duo Step-Over
Share
The Duo Series Ebikes For Everyone
The Juggernaut Duo Series is all about flexibility. Hub-drive or mid-drive, step-over or step-thru, single battery or dual battery, entry-level or high-end. No matter your needs, there's probably a Duo for you.
Simple. Capable. Affordable.
The Hub Duo is our most user-friendly & affordable eBike in the Juggernaut family. Thanks to the 750W hub-drive motor, you'll get an easy-going ride with plenty of power to boost you up those tough hills. Mix that with our 5-star customer service and you've got yourself a perfect entry-level eBike.
Bells & Whistles? You Bet.
- 750W Hub Motor
- Optional Range Extender
- LCD Display
- Suspension Fork
- Drivetrain
- Hydraulic Disc Brakes
- Integrated Front Light
- Rear Light
- Rack & Fenders
Collapsible content
Distance Range
PAS 1
Pedal-Assist Lv.1
63mi
PAS 2
Pedal-Assist Lv.2
46mi
PAS 3
Pedal-Assist Lv.3
34mi
PAS 4
Pedal-Assist Lv.4
30mi
PAS 5
Pedal-Assist Lv.5
29mi
THRL
Throttle Only
24mi
**Please note that information regarding the expected range on a single charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.
Technical Specifications
Frame
6061 Aluminum
Front Hub
135mm 36h
Seat Post
28.6mm Aluminum
Fork
Rst Guide W/75mm Travel, Lockout And Preload
Front Axle
5mm Qr
Seat Post Clamp
Qr
Headset
Threadless 1-1/2 1-1/8 Tapered
Rear Hub
Motor
Motor
750w Rear Hub Motor
Shifter Rear
Shimano Alivio 9 Speed Trigger
Rear Axle
Bolt-On
Battery Sizes
Total Capacity Of 52v 36.5ah 1898wh:
52v 17.5ah 910wh (Internal Battery) +
Up To 52v 19ah 988wh (External Range Extender Battery)
Rear Derailleur
Shimano Alivio 9 Speed
Rims
Solid Black 36h
Display
500c / Dm07 Lcd Display
Cassette
11-34t
Tire Sizes
26x4, 27.5x3
Lights
Integrated Headlight, Taillight
Chain
Kmc E9s
Handlebar
700mm Wide, 30mm Rise, 31.8mm Clamp
Assist Type
Torque + Cadence
Crank Set
44t Chainring With170mm Arms
Stem
Adjustable Gooseneck Stem
Assist Levels
0-5 (0-3, 0-9)
Bottom Bracket
Torque Sensor With Square Taper Spindle
Grips
Slide-On Comfort Grips
Throttle
Thumb Throttle
Brakes
Biktrix/Xd-E300 Dual Piston Hydraulic W/180mm Rotors
Saddle
Biktrix Comfy Saddle
Other
Rear Rack, Fenders, Kickstand
Brake Levers
Adjustable W/ Integrated Brake Sensors
