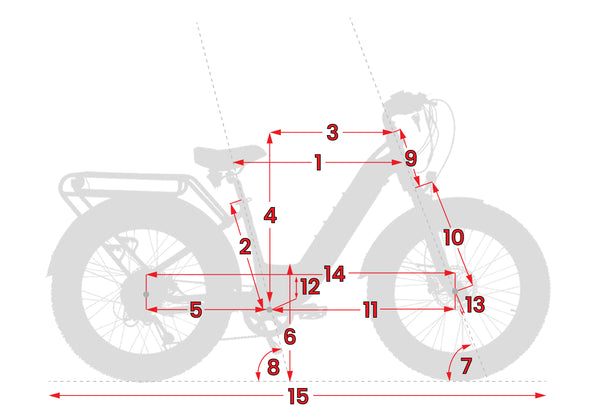

1 |
Effective Top Tube Length |
620mm | 24.4in |
2 |
Seat Tube Length (Classic Bike Size) |
420mm | 16.5in |
3 |
Reach |
520mm | 20.5in |
4 |
Stack |
540mm | 21.3in |
5 |
Chainstay Length |
430mm | 16.9in |
6 |
Standover Height |
420mm | 16.5in |
7 |
Head Angle |
67° | - |
8 |
Seat Angle |
73° | - |
9 |
Head Tube Length |
190 mm | 7.5 in |
10 |
Fork Length |
430mm | 16.9in |
11 |
Front Center |
830mm | 32.7in |
12 |
BB (Bottom Bracket) Drop |
30mm | 1.2in |
13 |
Fork Offset |
30mm | 1.2in |
14 |
Wheelbase |
1220mm | 48in |
15 |
Total Length |
1850mm | 72.8in |
16 |
Max Seat Height |
950mm | 37.4in |
17 |
Min Seat Height |
800mm | 31.5in |
18 |
Handlebar Height |
1070mm | 42.1in |
19 |
Weight (Without Battery) |
27.3kg | 60.2lb |

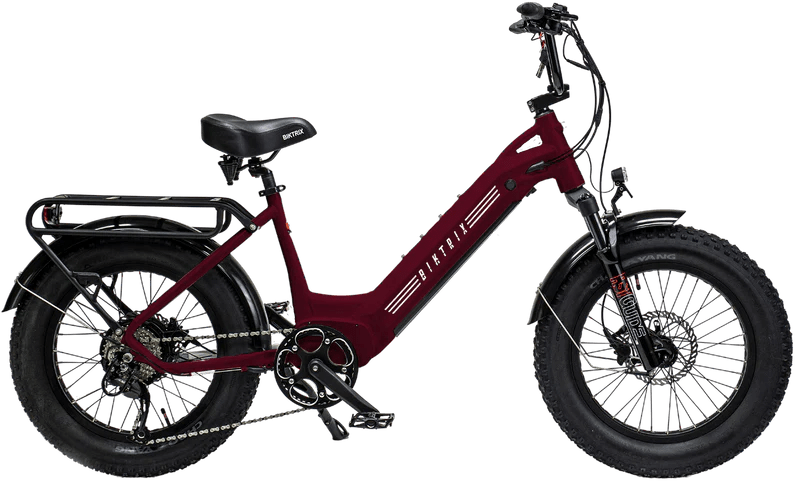

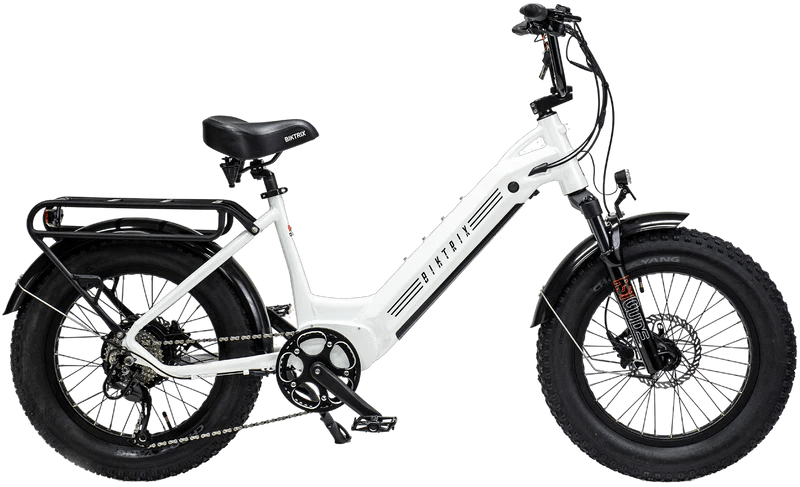

Biktrix Juggernaut Hub Duo Small Step-Thru
Biktrix Juggernaut Hub Duo Small Step-Thru
Share
The Duo Series Ebikes For Everyone
The Juggernaut Duo Series is all about flexibility. Hub-drive or mid-drive, step-over or step-thru, single battery or dual battery, entry-level or high-end. No matter your needs, there's probably a Duo for you.
Simple. Capable. Affordable.
The Hub Duo is our most user-friendly & affordable eBike in the Juggernaut family. Thanks to the 750W hub-drive motor, you'll get an easy-going ride with plenty of power to boost you up those tough hills. Mix that with our 5-star customer service and you've got yourself a perfect entry-level eBike.
Bells & Whistles? You Bet.
- 750W Hub Motor
- Optional Range Extender
- LCD Display
- Suspension Fork
- Drivetrain
- Hydraulic Disc Brakes
- Integrated Front Light
- Rear Light
- Rack & Fenders
Collapsible content
Distance Range
PAS 1
Pedal-Assist Lv.1
66mi
PAS 2
Pedal-Assist Lv.2
48mi
PAS 3
Pedal-Assist Lv.3
37mi
PAS 4
Pedal-Assist Lv.4
34mi
PAS 5
Pedal-Assist Lv.5
30mi
THRL
Throttle Only
24mi
**Please note that information regarding the expected range on a single charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.
Technical Specifications
Frame
6061 Aluminum
Front Hub
135mm 36h
Seat Post
28.6mm
Fork
Rst Guide W/ 60mm Travel, Adjustable Preload
Front Axle
5mm Qr
Seat Post Clamp
Qr
Headset
Threadless 1-1/8" Straight
Rear Hub
Motor
Motor
750w Rear Hub
Shifter Rear
Shimano Alivio 9 Speed Trigger
Rear Axle
Bolt-On
Battery Sizes
Total Capacity Of 52v 36.5ah 1898wh:
52v 17.5ah 910wh (Internal Battery) +
Up To 52v 19ah 988wh (External Range Extender Battery)
Rear Derailleur
Shimano Alivio 9 Speed
Rims
20" Black W/ Round Cutouts, 36h
Display
Dm07
Cassette
9 Speed 11-34t Cassette
Tire Sizes
20x4" Chaoyang
Lights
Integrated Headlight, Taillight
Chain
Kmc E9s - 124 Links
Handlebar
690mm Wide, 20mm Tall, 25.4mm Clamp Bmx Style
Assist Type
Torque + Cadence
Crank Set
44t Chainring W/ 170mm Arms
Stem
120mm Adjustable
Assist Levels
0-5 (0-3, 0-9)
Bottom Bracket
Square Taper W/ Integrated Torque Sensor
Grips
Slide-On
Throttle
Thumb Throttle
Brakes
Xod E300 Dual Piston Hydraulic Brakes W/180mm Rotors
Saddle
Biktrix Comfy Saddle
Other
Front And Rear Fenders, Rear Rack, Kickstand
Brake Levers
Adjustable W/ Integrated Brake Cutoff Sensors
