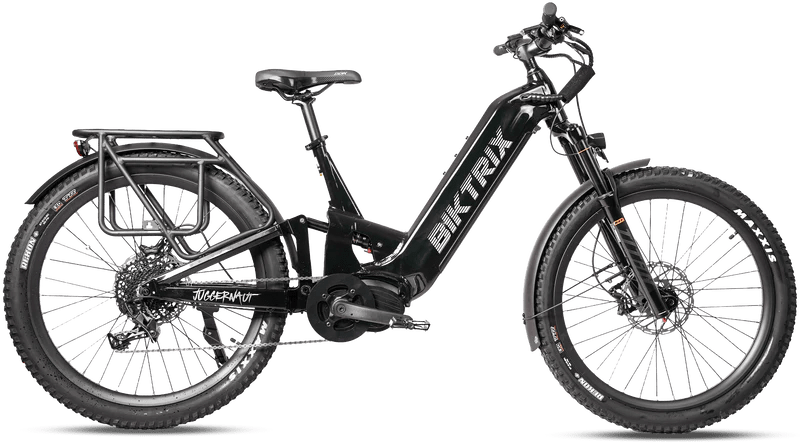

Biktrix Juggernaut FS Step-Thru MTB

Biktrix Juggernaut FS Step-Thru MTB

$3,999.00 USD
$4,699.00 USD $3,999.00 USD
Sale Sold out
Shipping calculated at checkout.



Introducing the Biktrix Juggernaut FS Step-Thru MTB: Unleash Your Adventure!

Elevate your off-road biking experience with the Juggernaut FS Step-Thru, Biktrix’s latest masterpiece in electric mountain biking. Designed for seasoned riders, this Full Suspension, Step-Thru eMTB combines power, endurance, and comfort for an unparalleled riding adventure.

Key Features:

  • Powerful Performance: Equipped with a 1500W 52V 35A Custom Bafang Ultra M620 Mid-drive Motor, conquer challenging hills with ease.
  • Long-lasting Endurance: A massive 52V 25Ah 1300Wh downtube battery ensures extended riding sessions, is easily removable for hassle-free recharging.
  • Smooth Ride: Experience ultimate comfort with full suspension powered by RST Titan Fork and DNM AO-38RC Rear Suspension, offering customizable travel and rebound adjustment.
  • Safety First: Tektro E725 Quad-Piston Brakes and Adjustable Levers with Integrated Brake Cutoffs ensure powerful stops and customizable control.
  • Superior Traction: Dominate any terrain with Boost Spacing Wheelsets, 36H Solid Black Rims, and Maxxis Rekon tires, delivering exceptional grip and durability.
  • User-friendly Design: Effortlessly mount and dismount with the low step frame, while on-demand throttle and seamless pedal assistance provide instant power.
  • Customizable Comfort: Velo Bolt-On MTB Grips offer optimal control and comfort, with two frame sizes and a variety of color options for a personalized fit.

Benefits:

  • Effortlessly conquer challenging terrain with a powerful motor and peak torque.
  • Enjoy extended riding sessions with long-lasting battery life.
  • Experience a smooth and tailored ride with customizable suspension.
  • Ride confidently with powerful brakes and customizable control.
  • Dominate any terrain with superior traction and durability.
  • Enjoy a user-friendly design for easy mounting and dismounting.
  • Personalize your comfort and style with customizable options.

Don’t miss out on the ultimate biking adventure – order your Juggernaut FS Step-Thru today and embark on your next thrilling journey! 🚴‍♂️🌲🔥

Available in two frame sizes:

  • L | 19” Frame: Ideal for riders 5’10” and above with a 32”+ inseam.
  • M | 17” Frame: Perfect for riders 5’6” and above with a 30”+ inseam.

Advanced Options:

Price: $3,999.00 (Save $1,000 from the original price of $4,999.00)

Shipping: Leaves within Late July.

Order your Juggernaut FS Step-Thru now and explore the great outdoors with confidence! 🚴‍♂️🌲🔥

Step-Thru The Extraordinary.

This isn't just a bike; it's your bold companion for city commutes and all-terrain adventures.

Biktrix VS. Everyone

In the electrifying Battle of the Bikes, the Juggernaut FS Step-Through stands tall, ready to go head-to-head against the rest. Brace yourselves; this is no ordinary comparison – it's a clash of innovation and power.

 ULTRA POWERFUL. ULTRA LOADED

  • 52 25ah Battery
  • Step-Thu Full Suspension Frame
  • Quad Piston Hydraulic Brakes
  • 11 Speed SRAM NX Drivetrain
  • Rear Suspension
  • LCD Display
  • Suspension Fork
  • MTB Tires
View full details

Distance Range

Battery Powerhouse
Elevate your off-road adventures with the Juggernaut FS Step-Thru, featuring a massive 52V 25Ah 1300Wh UL Certified default battery for up to 100 km on a single charge.

Extend your journey even further with the Range Extender option, pushing the limits to an impressive 160 km without breaking a sweat.

No Dual Battery
100km
Dual Battery
160km

Technical Specifications

Frame
6061 Aluminum - 120mm Frame Travel

Front Hub
110mm 36h Ta

Seat Post
31.6mm Aluminum

Fork
Rst Titan W/140mm Travel, Lockout And Rebound Adjustment

Front Axle
15x110mm Ta

Seat Post Clamp
38mm Qr

Headset
Threadless 1-1/2 1-1/8 Tapered

Rear Hub
148mm 36h Ta

Motor
Custom 52v 35a 1500w Bafang Ultra M620

Shifter Rear
Sram Nx 11 Speed Trigger

Rear Axle
12mm Ta

Battery Sizes
Total Capacity Of 52v 52v42ah 2184wh:
52v 25ah 1300wh (Ul Certified Internal Battery) +
52v 17ah 884wh (External Range Extender Battery)

Rear Derailleur
Sram Nx 11 Speed

Rims
Solid Black, 36h, 40mm Wide

Display
Cc03 Lcd Display

Cassette
Sram 11-42t 11 Speed

Tire Sizes
27.5x2.8 Maxxis Rekon

Lights
Integrated Headlight

Chain
Kmc E11s - 126 Links

Handlebar
780mm Wide, 8° Rise, 9° Backsweep Promax W/31.8mm
Clamp Size

Assist Type
Torque + Cadence

Crank Set
40t Chainring W/170mm Arms

Stem
Promax 40mm W/31.8mm Clamp

Assist Levels
0-5 (0-3, 0-9)

Bottom Bracket
Square Tapered

Grips
Velo Bolt-On Mtb Grips

Throttle
Thumb Throttle

Brakes
Tektro E725 Quad-Piston Brakes W/203mm Rotors

Saddle
Gel Padded Mtb Saddle

Other
Rear Rack, Fenders

Brake Levers
Tektro Adjustable W/ Integrated Brake Cutoffs

Rear Suspension
Dnm Ao-38rc W/53mm Travel, 210 Eye-To-Eye, Lockout
+ Rebound Adjustment

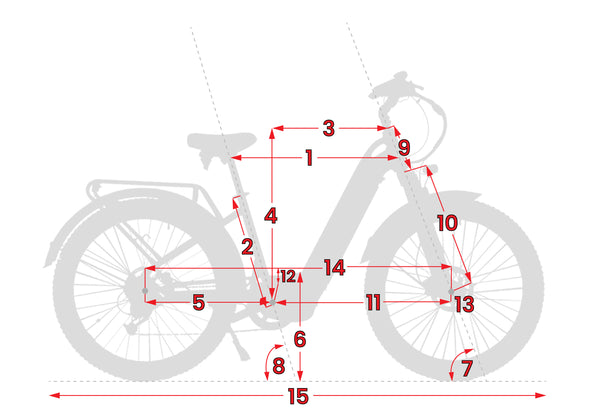

Size & Fittings



M - 17"

1
Effective Top Tube Length
 670mm 26.4in
2
Seat Tube Length (Classic Bike Size)
 435mm 17.1in
3
Reach
 510mm 20.1in
4
Stack
 630mm 24.8in
5
Chainstay Length
 490mm 19.3in
6
Standover Height
 535mm 21.1in
7
Head Angle
 64° -
8
Seat Angle
 71° -
9
Head Tube Length
 145 mm 5.7 in
10
Fork Length
 560mm 22in
11
Front Center
 880mm 34.6in
12
BB (Bottom Bracket) Drop
 35mm 1.4in
13
Fork Offset
 35mm 1.4in
14
Wheelbase
 1365mm 53.7in
15
Total Length
 2070mm 81.5in
16
Max Seat Height
 930mm 36.6in
17
Min Seat Height
 840mm 33.1in
18
Handlebar Height
 1050mm 41.3in
19
Weight (Without Battery)
 37.3kg 82.2lb



L - 19"

1
Effective Top Tube Length
 650mm 25.6in
2
Seat Tube Length (Classic Bike Size)
 480mm 18.9in
3
Reach
 510mm 20.1in
4
Stack
 630mm 24.8in
5
Chainstay Length
 490mm 19.3in
6
Standover Height
 550mm 21.7in
7
Head Angle
 64° -
8
Seat Angle
 71° -
9
Head Tube Length
 145 mm 5.7 in
10
Fork Length
 560mm 22in
11
Front Center
 880mm 34.6in
12
BB (Bottom Bracket) Drop
 35mm 1.4in
13
Fork Offset
 35mm 1.4in
14
Wheelbase
 1365mm 53.7in
15
Total Length
 2070mm 81.5in
16
Max Seat Height
 1030mm 40.6in
17
Min Seat Height
 890mm 35in
18
Handlebar Height
 1090mm 42.9in
19
Weight (Without Battery)
 37.3kg 82.2lb
