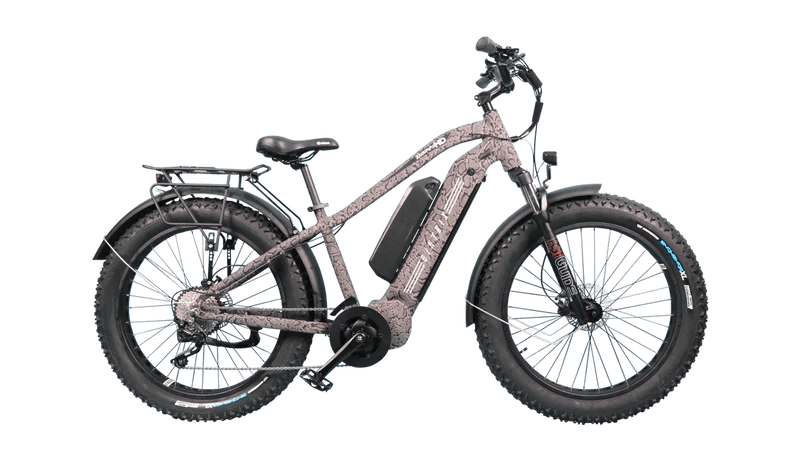

Biktrix Juggernaut Classic Duo Step-Over

Biktrix Juggernaut Classic Duo Step-Over

$2,299.00 USD
$2,699.00 USD $2,299.00 USD
Sale Sold out
Shipping calculated at checkout.

The Duo Series Ebikes For Everyone

The Juggernaut Duo Series is all about flexibility. Hub-drive or mid-drive, step-over or step-thru, single battery or dual battery, entry-level or high-end. No matter your needs, there's probably a Duo for you.

The Next Step In Performance.

Looking for a little more power, but don't want to break the bank? Meet The Classic Duo. With a 750W mid-drive motor, The Classic delivers a considerable performance boost without sacrificing affordability. Use the bikes gears to your advantage and tackle tough terrain with ease. Your adventure awaits.

All The Good Stuff, And More.

  • Mid-Drive Motor
  • LCD Display
  • Thumb Throttle & Control Pad
  • Suspension Fork
  • Drivetrain
  • Hydraulic Disc Brakes
  • Integrated Front Light
  • Optional Range Extender
  • Rack & Fenders
View full details

Distance Range

PAS 1
Pedal-Assist Lv.1
81mi
PAS 2
Pedal-Assist Lv.2
64mi
PAS 3
Pedal-Assist Lv.3
43mi
PAS 4
Pedal-Assist Lv.4
39mi
PAS 5
Pedal-Assist Lv.5
36mi
THRL
Throttle Only
31mi
**Please note that information regarding the expected range on a single charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame
6061 Aluminum

Front Hub
135mm 36h

Seat Post
27.2mm

Fork
Rst Guide W/75mm Travel, Lockout And Preload

Front Axle
5mm Qr

Seat Post Clamp
Qr

Headset
Threadless 1-1/8 1-1/2 Tapered

Rear Hub
170mm 36h

Motor
750w Bbs02 Mid-Drive

Shifter Rear
Shimano Alivo 9 Speed Trigger Shifter

Rear Axle
5mm Qr

Battery Sizes
Total Capacity Of 52v 34.5ah 1794wh:
52v 17.5ah 910wh (Internal Battery) +
Up To 52v 17ah 884wh (External Range Extender Battery)

Rear Derailleur
Shimano Alivo 9 Speed

Rims
Black 36h

Display
Dpc-18

Cassette
9-Speed 12-36t Cassette

Tire Sizes
26x4", 27.5x3"

Lights
Integrated Headlight, Taillight

Chain
Kmc X9

Handlebar
31.8mm Clamp, 700mm Wide, 80mm Rise

Assist Type
Cadence

Crank Set
170mm Arms 44t Chainring

Stem
Promax 90mm

Assist Levels
0-5

Bottom Bracket
Bafang Square Taper

Grips
Slide On

Throttle
Thumb Throttle

Brakes
Tektro E350 Dual Piston W/180mm Rotors

Saddle
Wide Saddle

Other
Front And Rear Fenders, Rear Rack, Kickstand

Brake Levers
Tektro Adjustable

Size & Fittings



M - 17"

1
Effective Top Tube Length
 620mm 24.4in
2
Seat Tube Length (Classic Bike Size)
 420mm 16.5in
3
Reach
 420mm 16.5in
4
Stack
 700mm 27.6in
5
Chainstay Length
 530mm 20.9in
6
Standover Height
 660mm 26in
7
Head Angle
 68° -
8
Seat Angle
 71° -
9
Head Tube Length
 190 mm 7.5 in
10
Fork Length
 530mm 20.9in
11
Front Center
 750mm 29.5in
12
BB (Bottom Bracket) Drop
 65mm 2.6in
13
Fork Offset
 35mm 1.4in
14
Wheelbase
 1250mm 49.2in
15
Total Length
 1990mm 78.3in
16
Max Seat Height
 930mm 36.6in
17
Min Seat Height
 770mm 30.3in
18
Handlebar Height
 1140mm 44.9in
19
Weight (Without Battery)
 32.5kg 71.7lb



L - 19"

1
Effective Top Tube Length
 640mm 25.2in
2
Seat Tube Length (Classic Bike Size)
 470mm 18.5in
3
Reach
 450mm 17.7in
4
Stack
 670mm 26.4in
5
Chainstay Length
 530mm 20.9in
6
Standover Height
 710mm 28in
7
Head Angle
 68° -
8
Seat Angle
 71° -
9
Head Tube Length
 190 mm 7.5 in
10
Fork Length
 530mm 20.9in
11
Front Center
 760mm 29.9in
12
BB (Bottom Bracket) Drop
 65mm 2.6in
13
Fork Offset
 35mm 1.4in
14
Wheelbase
 1250mm 49.2in
15
Total Length
 2000mm 78.7in
16
Max Seat Height
 1010mm 39.8in
17
Min Seat Height
 840mm 33.1in
18
Handlebar Height
 1170mm 46.1in
19
Weight (Without Battery)
 32.5kg 71.7lb
