| 1 |
Effective Top Tube Length |
560mm | 22in |
| 2 |
Seat Tube Length (Classic Bike Size) |
470mm | 18.5in |
| 3 |
Reach |
460mm | 18.1in |
| 4 |
Stack |
600mm | 23.6in |
| 5 |
Chainstay Length |
510mm | 20.1in |
| 6 |
Standover Height |
710mm | 28in |
| 7 |
Head Angle |
70° | - |
| 8 |
Seat Angle |
75° | - |
| 9 |
Head Tube Length |
180 mm | 7.1 in |
| 10 |
Fork Length |
530mm | 20.9in |
| 11 |
Front Center |
720mm | 28.3in |
| 12 |
BB (Bottom Bracket) Drop |
60mm | 2.4in |
| 13 |
Fork Offset |
30mm | 1.2in |
| 14 |
Wheelbase |
1230mm | 48.4in |
| 15 |
Total Length |
1970mm | 77.6in |
| 16 |
Max Seat Height |
1020mm | 40.2in |
| 17 |
Min Seat Height |
860mm | 33.9in |
| 18 |
Handlebar Height |
1080mm | 42.5in |
| 19 |
Weight (Without Battery) |
28.9kg | 63.7lb |

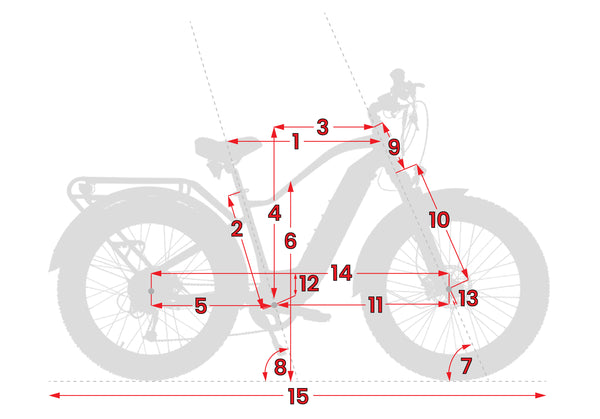

Biktrix Juggernaut Hub Duo Step-Over Size Chart
